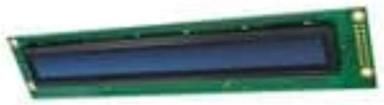

OLED-040N002A-GPP5N00000 www.vishay.com Vishay 40 x 2 Character OLED FEATURES Type: character Display format: 40 x 2 characters Built-in controller: OLED-0010 Duty cycle: 1/16 +5 V power supply Interface: 6800, 8080 Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 MECHANICAL DATA ABSOLUTE MAXIMUM RATINGS ITEM STANDARD VALUE UNIT STANDARD VALUE ITEM SYMBOL UNIT Module dimension 182.0 x 38.5 x 9.3 (max.) MIN. MAX. Viewing area 154.4 x 16.5 Supply voltage V to V -0.3 5.3 V DD SS for logic Active area 148.13 x 11.85 Operating Dot size 0.57 x 0.65 T -40 +80 OP temperature mm C Dot pitch 0.62 x 0.70 Storage T -40 +80 STG temperature Mounting hole 175.0 x 26.5 Character size 3.05 x 5.55 Character pitch 3.72 x 6.3 ELECTRICAL CHARACTERISTICS STANDARD VALUE ITEM SYMBOL CONDITION UNIT MIN. TYP. MAX. Supply voltage for logic V to V - 4.8 5.0 5.3 DD SS Input high voltage V - 0.8 V -V IH DD DD Input low voltage V - GND - 0.2 V V IL DD Output high voltage V I = -0.5 mA 0.8 V -V OH OH DD DD Output low voltage V I = 0.5 mA GND - 0.2 V OL OL DD 50 % check board operating current I V = 5 V 576063 mA DD DD Note When you use 5 V for V , please do not use 3 V or 3.3 V for logic I/O, this will cause module does not work. DD OPTIONS EMITTING COLOR MOQ YELLOW GREEN RED BLUE WHITE YELLOW GREEN RED BLUE WHITE - Yes ---- Yes - -- Revision: 09-Aug-16 Document Number: 37820 1 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 OLED-040N002A-GPP5N00000 www.vishay.com Vishay INTERFACE PIN FUNCTION PIN NO. SYMBOL FUNCTION 1V Ground (0 V) SS 2V Supply voltage for logic (5.0 V) DD 3 NC No connection 4 RS H / L, H: data L: instruction code 5 R / W H / L, H: read (module MPU) L: write (MPU module) 6E H, H L, chip enable signal 7 DB0 H / L, data bit 0 8 DB1 H / L, data bit 1 9 DB2 H / L, data bit 2 10 DB3 H / L, data bit 3 11 DB4 H / L, data bit 4 12 DB5 H / L, data bit 5 13 DB6 H / L, data bit 6 14 DB7 H / L, data bit 7 15 NC No connection 16 NC No connection DIMENSIONS in millimeters 182.0 0.5 3.5 175.0 14.65 157.7 154.4 (VA) 16.3 9.3 max. 148.13 (AA) 19.435 4.7 16 15 2 1 3.50 4 x 3.5 PTH 1.6 4 x 5.5 PTH 2.54 3.05 0.67 2.5 0.62 0.57 16 x 1.0 PTH 16 x 1.8 PAD PIN DETAIL DOT SIZE SCALE 1/1 SCALE 5/1 The non-specified tolerance of dimen sion is 0.3 mm Revision: 09-Aug-16 Document Number: 37820 2 For technical questions, contact: displays vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 38.5 0.5 23.7 9.9 16.5 (VA) 13.5 11.85 (AA) 15.825 3.50 17.78 12.8 (P2.54 x 7) 0.75 5.55 0.70 0.65 26.5 8.5
