25 min. 25 min.
B C
RCMT
www.vishay.com
Vishay Sfernice

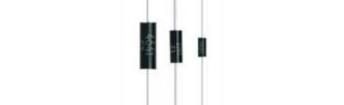

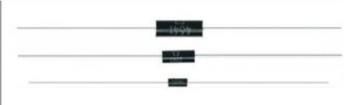

Molded Metal Film High Stability (< 0.25 % after 1000 h)
High Temperature (up to 175 C) Precision Resistors
FEATURES
0.1 W to 2 W at 125 C
EN140100
CECC 40 101-044
High climatic performance - 65 C/+ 175 C/
56 days
High long term stability drift < 0.25 % after 1000 h
Tight temperature coefficient to 15 ppm/C
The performance of the RCMT resistors exceed the
Temperature coefficient tracking 5 ppm/C
requirements of NF C 83-230 standards. They are
particularly relevant to the more stringent military and
Wide ohmic range from 1 to 5 M
industrial applications especially when high ambient
Tight tolerances up to 0.1 %
temperatures such as + 175 C are to be encountered.
Matching tolerance to 0.05 %
The RCMT resistors are qualified and released to the
Termination: Pure matte tin
NF C UTE 83-230 standard styles RS56C, RS60E and C,
Material categorization: for definitions of compliance
RS65E and C, RS70E and C.
please see www.vishay.com/doc?99912
DIMENSIONS in millimeters
SERIES A max. B max. C WEIGHT in g
RCMT01 4.32 2.03 0.4 0.11
RCMT02 6.7 2.5 0.6 0.28
RCMT05 10.4 3.66 0.6 0.46
RCMT08 16.5 6.4 0.8 1.3
RCMT1 19.3 6.4 0.8 1.5
RCMT2 29 10.2 0.8 4.4
RCMT4 54 10.2 0.8 13
STANDARD ELECTRICAL SPECIFICATIONS
RESISTANCE RATED POWER LIMITING ELEMENT TEMPERATURE
TOLERANCE
MODEL RANGE P VOLTAGE COEFFICIENT
70 C
%
W V ppm/C
RCMT01 1 to 511K 0.063 200 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT02 1 to 322K 0.125 300 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT05 1 to 1M 0.250 350 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT08 1 to 1.5M 0.500 400 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT1 1 to 2M 1.0 500 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT2 1 to 2.5M 2.0 600 0.1, 0.2, 0.5, 1 15, 25, 50
RCMT4 1 to 5M 4.0 800 0.1, 0.2, 0.5, 1 15, 25, 50
Note
Undergoes European Quality Insurance System (CECC)
Revision: 12-Sep-14 Document Number: 52011
1
For technical questions, contact: sferfixedresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000
ARCMT
www.vishay.com
Vishay Sfernice
TECHNICAL SPECIFICATIONS
RESISTANCE VALUE RANGE IN RELATION TO
- TEMPERATURE COEFFICIENT
NF C
VISHAY POWER POWER - TOLERANCE
83-230 MAXIMUM CRITICAL
SFERNICE RATING RATING
CECC 40 K3 K4 K5 VOLTAGE RESISTANCE
SERIES AT + 70 C AT + 125 C
101-044
0.5 % 0.1 % 0.5 % 0.1 % 0.5 %
0.2 %
1 % 0.2 % 1 % 0.2 % 1 %
RCMT01
-
K3
10 1 49.9 100 100
49.9
0.063 W 0.05 W 200 V -
511 k 511 k 100 k 511 k 100 k 100 k
RCMT01
-
K4
RCMT02 RS
K3 56C
10 1 10 1 10 10
0.125 W 0.1 W 300 V -
332 k 332 k 332 k 332 k 100 k 332 k
RCMT02 RS
K4 56E
RCMT05 RS
K3 60C
10 1 10 1 10 10
0.25 W 0.125 W 350 V 980 k
332 k 1 M 332 k 1 M 332 k 1 M
RCMT05 RS
K4 60E
RCMT08 RS
K3 65C
10 1 10 1 10 10
0.5 W 0.25 W 400 V 640 k
1 M 1.5 M 1 M 1.5 M 750 k 1.5 M
RCMT08 RS
K4 65E
RCMT1 RS
K3 70C
10 1 10 1 10 10
1 W 0.5 W 500 V 500 k
1 M 2 M 1 M 2 M 750 k 2 M
RCMT1 RS
K4 70E
RCMT2
-
K3
10 1 10 1 10 10
2 W 1 W 600 V 360 k
1 M 2.5 M 1 M 2.5 M 100 k 100 k
RCMT2
-
K4
RCMT4
-
K3
10 1 10 1 10 10
4 W 2 W 800 V 320 k
2.5 M 5 M 2.5 M 5 M 100 k 100 k
RCMT4
-
K4
Note
Undergoes European Quality Insurance System (CECC)
PERFORMANCE
EN140100 - CECC 40 101-044
TYPICAL VALUES
AND DRIFTS
TESTS CONDITIONS REQUIREMENTS
Dielectric Voltage 2 U /1 min 0.25 % < 0.05 % or 0.05
n
2.5 U /5 s
m
Short Time Overload 0.25 % 0.05 % or 0.05
limited to 2 U
n
1000 h at + 155 C
Load Life at Maximum
0.5 % 0.25 % or 0.05
Category Temperature 0 % of P
r
Damp Heat Humidity 56 days 0.2 % or 0.05
0.5 %
6
(Steady State) with low load Insulation resistance > 10 M
Rapid Temperature Change - 55 C + 175 C 0.1 % 0.05 % or 0.05
- 65 C + 175 C 0.5 % 0.2 % or 0.05
Climatic Sequence
3 6
severity 1 Insulation resistance > 10 M Insulation resistance > 10 M
Terminal Strength Pull - twist - 2 bends 0.1 % 0.05 % or 0.05
Vibration Severity 55 B 0.1 % 0.05 % or 0.05
Soldering (Thermal Shock) + 260 C 10 s 0.1 % 0.05 % or 0.05
1000 h at P 0.5 % 0.15 % or 0.05
Cycle 90'/30' n
Load Life
70 C ambient
10 000 h at P - 0.25 % or 0.05
n
Shelf Life 1 year ambient temperature - < 0.05 %
