ROX100300MFKELS Vishay

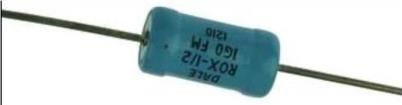

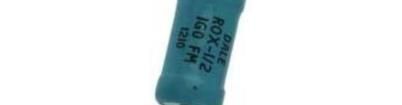

ROX www.vishay.com Vishay Dale Metal Oxide Resistors, Special Purpose, High Voltage FEATURES Low TCR: 200 ppm/C standard Available 100 ppm/C, 50 ppm/C available non-inductive only available with TC of 200 ppm/C Tolerance: 1 % 2 % 5 % 10 % Available High Voltage (up to 45 kV) For oil bath or open air operation Standard ROX product is coated optional uncoated version of the ROX product is available on request Matched sets available The ROX is an excellent choice for high voltage systems Special testing available upon request with the advantage of high wattage and space saving Applications: HV power supplies laboratory equipment dimensions. power control aeronautical Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 Note * This datasheet provides information about parts that are RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details STANDARD ELECTRICAL SPECIFICATIONS POWER RATING MAXIMUM RESISTANCE TEMPERATURE GLOBAL HISTORICAL WORKING TOLERANCE (2) (3) RANGE COEFFICIENT P P P (1) 25 C 70 C 125 C MODEL MODEL VOLTAGE % ppm/C W W W V 1M to 100M 1, 2, 5, 10 50 ROX050 ROX-1/2 2 1.4 1 2K 1k to 100M 1, 2, 5, 10 100 100 to 1G 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX050..P ROX-1/2P 2.8 1.96 1.4 2K 1k to 100M 1, 2, 5, 10 100 100 to 1G 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX075 ROX-3/4 3 2.16 1.5 5K 1k to 500M 1, 2, 5, 10 100 100 to 3G 1, 2, 5, 10 200 ROX075..N ROX-3/4N 3 2.16 1.5 5K 100 to 1M 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX075..P ROX-3/4P 4.2 3.02 2.1 5K 1k to 500M 1, 2, 5, 10 100 100 to 3G 1, 2, 5, 10 200 ROX075..NP ROX-3/4NP 4.2 3.02 2.1 5K 100 to 1M 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX100 ROX-1 4 2.88 2 7.5K 1k to 500M 1, 2, 5, 10 100 150 to 3G 1, 2, 5, 10 200 ROX100..N ROX-1N 4 2.88 2 7.5K 100 to 1M 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX100..P ROX-1P 5.6 4.03 2.8 7.5K 1k to 500M 1, 2, 5, 10 100 150 to 3G 1, 2, 5, 10 200 ROX100..NP ROX-1NP 5.6 4.03 2.8 7.5K 100 to 1M 1, 2, 5, 10 200 1M to 100M 1, 2, 5, 10 50 ROX150 ROX-1-1/2 5 3.6 2.5 11K 1k to 500M 1, 2, 5, 10 100 200 to 3G 1, 2, 5, 10 200 ROX150..N ROX-1-1/2N 5 3.6 2.5 11K 100 to 1M 1, 2, 5, 10 200 Revision: 31-Jan-17 Document Number: 31033 1 For technical questions, contact: ff2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 ROX www.vishay.com Vishay Dale STANDARD ELECTRICAL SPECIFICATIONS POWER RATING MAXIMUM RESISTANCE TEMPERATURE GLOBAL HISTORICAL WORKING TOLERANCE (2) (3) RANGE COEFFICIENT P P P (1) 25 C 70 C 125 C MODEL MODEL VOLTAGE % ppm/C W W W V 1M to 100M 1, 2, 5, 10 50 ROX150..P ROX-1-1/2P 7 5.04 3.5 11K 1k to 500M 1, 2, 5, 10 100 200 to 3G 1, 2, 5, 10 200 ROX150..NP ROX-1-1/2NP 7 5.04 3.5 11K 100 to 1M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX200 ROX-2 6 4.32 3 15K 1k to 1G 1, 2, 5, 10 100 205 to 3G 1, 2, 5, 10 200 ROX200..N ROX-2N 6 4.32 3 15K 100 to 1M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX200..P ROX-2P 8.4 6.05 4.2 15K 1k to 1G 1, 2, 5, 10 100 205 to 3G 1, 2, 5, 10 200 ROX200..NP ROX-2NP 8.4 6.05 4.2 15K 100 to 1M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX300 ROX-3 10 7.2 5 22.5K 1k to 1G 1, 2, 5, 10 100 330 to 3G 1, 2, 5, 10 200 ROX300..N ROX-3N 10 7.2 5 22.5K 400 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX300..P ROX-3P 14 10.1 7 22.5K 1k to 1G 1, 2, 5, 10 100 330 to 3G 1, 2, 5, 10 200 ROX300..NP ROX-3NP 14 10.1 7 22.5K 400 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX400 ROX-4 12 8.64 6 30K 1k to 1G 1, 2, 5, 10 100 600 to 3G 1, 2, 5, 10 200 ROX400..N ROX-4N 12 8.64 6 30K 500 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX400..P ROX-4P 16.8 12.1 8.4 30K 1k to 1G 1, 2, 5, 10 100 600 to 3G 1, 2, 5, 10 200 ROX400..NP ROX-4NP 16.8 12.1 8.4 30K 500 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX500 ROX-5 16 11.5 8 37.5K 1k to 1G 1, 2, 5, 10 100 750 to 3G 1, 2, 5, 10 200 ROX500..N ROX-5N 16 11.5 8 37.5K 500 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX500..P ROX-5P 22.4 16.1 11.2 37.5K 1k to 1G 1, 2, 5, 10 100 750 to 3G 1, 2, 5, 10 200 ROX500..NP ROX-5NP 22.4 16.1 11.2 37.5K 500 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX600 ROX-6 20 14.4 10 45K 1k to 1G 1, 2, 5, 10 100 850 to 3G 1, 2, 5, 10 200 ROX600..N ROX-6N 20 14.4 10 45K 500 to 10M 1, 2, 5, 10 200 1M to 500M 1, 2, 5, 10 50 ROX600..P ROX-6P 28 20.2 14 45K 1k to 1G 1, 2, 5, 10 100 850 to 3G 1, 2, 5, 10 200 ROX600..NP ROX-6NP 28 20.2 14 45K 500 to 10M 1, 2, 5, 10 200 Notes Resistance values of 1 k and below are calibrated at 1 V , values above 1 k up to 100 k are calibrated at 10 V , and values DC DC above 100 k are calibrated at 100 V . Calibration at other voltages available DC 1 % not available above 1 G Part marking: Print marked - Dale, model, value, tolerance, temperature coefficient, date code (1) Continuous working voltage shall be P x R or maximum working voltage, whichever is less (2) For resistance values above and below those listed please contact us (3) Typical TCR results Revision: 31-Jan-17 Document Number: 31033 2 For technical questions, contact: ff2aresistors vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
