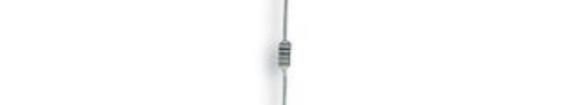

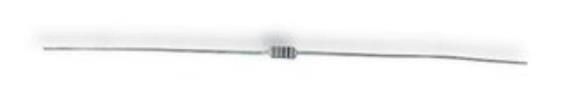

SFR16S, SFR25, SFR25H www.vishay.com Vishay BCcomponents Standard Metal Film Leaded Resistors FEATURES Small size (SFR16S: 0204, SFR25 / SFR25H: 0207) Low noise (max. 1.5 V/V for R > 1 M) Compatible to both lead (Pb)-free and lead containing soldering processes Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 APPLICATIONS General purpose resistors A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with a colored lacquer (light-blue for type SFR16S light-green for type SFR25 and red-brown for type SFR25H) which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45. TECHNICAL SPECIFICATIONS DESCRIPTION SFR16S SFR25 SFR25H DIN size 0204 0207 0207 1 to 3 M 0.22 to 10 M Resistance range 0.22 to 10 M Jumper (0 Jumper (0 Resistance tolerance 5 % 1 % Temperature coefficient 250 ppm/K 100 ppm/K Rated dissipation, P 0.5 W 0.4 W 0.5 W 70 Thermal resistance 170 K/W 200 K/W 150 K/W Operating voltage, U AC/DC 200 V 250 V 350 V max. Operating temperature range -55 C to 155 C Permissible film temperature 155 C Max. resistance change at rated dissipation (2 % R + 0.05 ) R/R max. , after 1000 h Note R value is measured with probe distance of 24 mm 1 mm using 4-terminal method. Revision: 28-Oct-15 Document Number: 28722 1 For technical questions, contact: filmresistorsleaded vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 SFR16S, SFR25, SFR25H www.vishay.com Vishay BCcomponents TEMPERATURE COEFFICIENT AND RESISTANCE RANGE TYPE TOLERANCE TCR RESISTANCE E-SERIES 250 ppm/K 1 to 4.7 5 % 100 ppm/K 4.7 to 100 k E24 250 ppm/K > 100 k to 3 M SFR16S 100 ppm/K 5.6 to 100 k 1 % E24 E96 250 ppm/K > 100 k to 3 M Jumper (0 - 30 m I = 3 A - max. 250 ppm/K 0.22 to 4.7 5 % 100 ppm/K > 4.7 to 1 M E24 250 ppm/K > 1 M to 10 M SFR25, SFR25H 250 ppm/K 1 to 4.7 1 % 100 ppm/K > 4.7 to 1 M E24 E96 250 ppm/K > 1 M to 10 M (1) Jumper (0 ) - 30 m I = 5 A - max. Note (1) Jumper is only available for SFR25. PART NUMBER AND PRODUCT DESCRIPTION PART NUMBER: SFR2500001001FA500 S F R 25 0 00 0 1 0 0 1 F A 5 00 TYPE VARIANT TCR/MATERIAL RESISTANCE TOLERANCE PACKAGING SPECIAL SFR16S0 0 = neutral 0 = standard 3 digit value F = 1 % N4 The 2 digits SFR2500 Z = value overflow Z = jumper 1 digit multiplier J = 5 % A5 are used for SFR25H0 (special) MULTIPLIER Z = jumper A1 all special R5 parts. -3 2 7 = *10 2 = *10 00 = standard -2 3 8 = *10 3 = *10 -1 4 9 = *10 4 = *10 0 5 0 = *10 5 = *10 1 1 = *10 Z = 0000 PRODUCT DESCRIPTION: SFR25 1 % A5 1K0 SFR25 1 % A5 1K0 (1) TYPE TOLERANCE PACKAGING RESISTANCE VALUE SFR16S 1 % N4 47K = 47 k SFR25 5 % A5 51R1 = 51.1 SFR25H A1 R5 Notes The products can be ordered using either the PRODUCT DESCRIPTION or the PART NUMBER. N4 packaging indicates SFR25 and SFR25H radial version. Revision: 28-Oct-15 Document Number: 28722 2 For technical questions, contact: filmresistorsleaded vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
