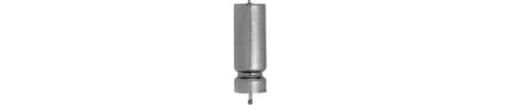

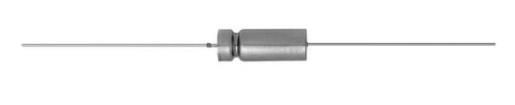

T34 www.vishay.com Vishay Wet Tantalum High Performance HI-TMP Capacitors for -55 C to +200 C Operation FEATURES High capacitance, high performance (shock and vibration) Available Hermetically sealed, tantalum case Available +200 C high temperature Terminations: axial, standard tin / lead (SnPb) 100 % tin (RoHS-compliant) available Available Mounting: through-hole Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 PERFORMANCE CHARACTERISTICS Note Operating Temperature: -55 C to +85 C * This datasheet provides information about parts that are (to +200 C with voltage derating) RoHS-compliant and / or parts that are non RoHS-compliant. For example, parts with lead (Pb) terminations are not RoHS-compliant. Capacitance Tolerance: at 120 Hz, +25 C 20 % Please see the information / tables in this datasheet for details standard 10 % DC Leakage Current (DCL Max.): at +25 C and above: APPLICATIONS leakage current shall not exceed the values listed in th e Industrial Standard Ratings tables. Petroleum exploration Life Test: capacitors are capable of withstanding life test at High temperature / high stress environment 200 C at the applicable derated DC working voltage. ORDERING INFORMATION T34 C 107 M 125 B Z 6 S MODEL CASE CAPACITANCE CAPACITANCE DC VOLTAGE TERMINATION RELIABILITY STYLE ESR CODE TOLERANCE RATING AND PACKAGING LEVEL NUMBER AT + 85 C See This is K = 10 % This is expressed A = 100 % tin Z = non-ER High S = std. Standard expressed in M = 20 % in volts. To (RoHS compliant), temperature L = low Ratings picofarads. complete the bulk 8 = no outer table The first two three-digit block, B = std., insulating digits are the zeros precede tin / lead, bulk sleeve significant the voltage rating 6 = high figures. The temperature third is the film insulation number of (above zeros to follow +125 C) Note Packaging: The use of formed plastic trays for packing bulk components is standard Revision: 23-Mar-2021 Document Number: 40228 1 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 T34 www.vishay.com Vishay DIMENSIONS in inches millimeters D EL E 1 0.0253 0.002 0.64 0.05 dia. Weld (No. 22 AWG tinned nickel leads Tantalum solderable and weldable) L 2 CASE CODE WEIGHT (g) (1) DL L (Max.) E 1 2 TYPE T34 CLR 79 / 81 EQUIV. (Max.) 0.188 0.016 0.453 + 0.031 / - 0.016 0.734 1.500 0.250 AT1 2.6 4.78 0.41 11.51 + 0.79 / - 0.41 18.64 38.10 6.35 0.281 0.016 0.641 + 0.031 / - 0.016 0.922 2.250 0.250 BT2 6.2 7.14 0.41 16.28 + 0.79 / - 0.41 23.42 57.15 6.35 0.375 0.016 0.766 + 0.031 / - 0.016 1.047 2.250 0.250 CT3 11.6 9.53 0.41 19.46 + 0.79 / - 0.41 26.59 57.15 6.35 0.375 0.016 1.062 + 0.031 / - 0.016 1.343 2.250 0.250 DT4 17.7 9.53 0.41 26.97 + 0.79 / - 0.41 34.11 57.15 6.35 Note (1) For insulated parts, add 0.015 inches 0.38 mm to the diameter. The insulation shall lap over the ends of the capacitor body STANDARD RATINGS CAPACITANCE MAX. DCL MAX. ESR LIFE TEST AT 25 C V CASE (A) DC PART NUMBER 120 Hz PERFORMANCE CODE 120 Hz AT 200 C () (h AT +200 C) 25 C 85 C / 125 C (F) 50 V AT +85 C DC 68 30 A T34A686(1)050(2)(3)(4)S 2.5 2 10 1000 220 30 B T34B227(1)050(2)(3)(4)S 0.9 4 20 1000 470 25 C T34C477(1)050(2)(3)(4)(S 0.75 3 25 2000 680 25 D T34D687(1)050(2)(3)(4)S 0.7 5 7 1000 1500 25 D T34D158(1)050(2)(3)(4)S 0.5 15 110 500 60 V AT +85 C DC 47 36 A T34A476(1)060(2)(3)(4)S 2.0 2 10 1000 150 36 B T34B157(1)060(2)(3)(4)S 1.5 2 10 1000 390 30 C T34C397(1)060(2)(3)(4)S 0.9 3 25 1000 560 36 D T34D567(1)060(2)(3)(4)S 0.8 5 7 1000 75 V AT +85 C DC 33 45 A T34A336(1)075(2)(3)(4)S 2.5 2 10 2000 68 45 A T34A686(1)075(2)(3)(4)S 3.0 2 10 500 110 45 B T34B117(1)075(2)(3)(4)S 1.3 2 10 1000 220 37 B T34B227(1)075(2)(3)(4)S 1.8 5 50 1000 330 45 C T34C337(1)075(2)(3)(4)S 1.0 3 25 1500 470 45 D T34D477(1)075(2)(3)(4)S 0.9 5 50 1000 1000 45 D T34D108(1)075(2)(3)(4)S 0.7 20 90 1000 100 V AT +85 C DC 15 60 A T34A156(1)100(2)(3)(4)S 3.5 1 5 1000 33 60 A T34A336(1)100(2)(3)(4)S 3.0 2 10 2000 68 60 B T34B686(1)100(2)(3)(4)S 2.1 2 10 1000 150 50 B T34B157(1)100(2)(3)(4)S 1.3 7.5 25 1000 220 60 D T34D227(1)100(2)(3)(4)S 1.2 5 50 1000 400 60 D T34D407(1)100(2)(3)(4)S 0.8 10 150 1500 470 60 D T34D477(1)100(2)(3)(4)S 0.7 15 150 1000 560 60 D T34D567(1)100(2)(3)(4)S 1.0 25 200 1000 (1) 750 50 D T34D757(1)100(2)(3)(4)S 0.7 25 150 500 Notes Part number definitions: (1) Capacitance tolerance: K, M (2) Termination and packaging: A = 100 % tin, bulk B = std., tin / lead, bulk (3) Reliability level: Z = non-ER (4) Style number: 6 = high temperature film insulation, 8 = no film insulation (1) Requires export license for shipments outside the US. Contact marketing for availability Revision: 23-Mar-2021 Document Number: 40228 2 For technical questions, contact: tantalum vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
