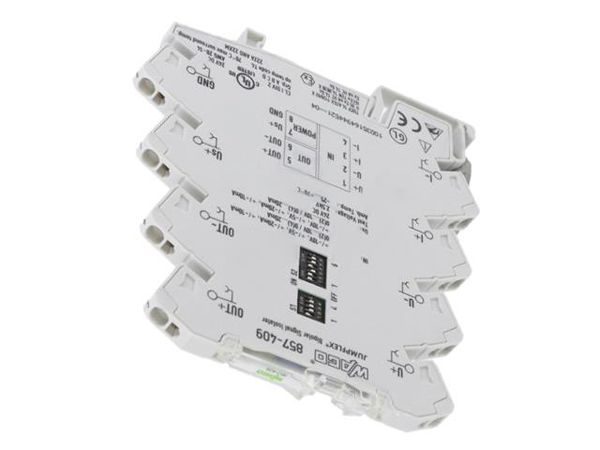

2 1 3 WAGO Kontakttechnik GmbH & Co. KG Operating and Assembly Instructions Hansastr. 27 GB D-32423 Minden r g 1 Please keep www.wago.com LISTED pending JUMPFLEX , 857 Series U+ 1 5 OUT+ 4. Zero/span adjustment 7. Technical Data OUT U I U 2 6 OUT- Always use an insulated screwdriver when performing a zero/span adjustment (e.g. Input signal 10 V, 5 V, 10 mA, 20 mA IN U I WAGO 210-619) (switchable in a calibrated way) 0...10 V, 0...5 V, 0...10 mA, 0...20 mA I+ 3 7 Us+ Bipolar isolation ampli er, con gurable POWER The zero/span potentiometers are used to adjust the output signal when analog signals are 2...10 V, 1...5 V, 2...10 mA, 4...20 mA I 4 8 GND 857-409 too low or too high. Input resistance I Input approx. 50 Before installation and operation, please read the following instructions thoroughly and carefully. Incorrect Example: A sensor, which is connected to the input of the isolation ampli er, delivers a U input approx. 1 M installation may compromise safety in the event of a failure. analog signal of maximum 9.7 V. Using the zero/span potentiometer, the signal can be Overload capacity 32 V / 50 mA readjusted to 10.0 V. 1. Safety Information Default setting 10V Please observe the following: 5. Dimensions - the applicable laws, standards and regulations Output signal 10 V, 5 V, 10 mA, 20 mA Span - the current, accepted technology standards and practices at the time of installation (switchable in a calibrated way) 0...10 V, 0...5 V, 0...10 mA, 0...20 mA Zero - the operating instructions 2...10 V, 1...5 V, 2...10 mA, 4...20 mA - the engineering regulations U+ OUT+ Load impedance I output 600 - the fact that operating instructions can only mention general regulations Load impedance V output 2 k and that these must be observed Residual ripple < 10 mV e U- OUT- Before start-up, please check the device for any damage that may have occurred during shipping. The device Default setting 10V shall not be put into operation in the event of mechanical damage. The devices described in these instructions must only be installed by a quali ed electrician and must only be Max. operating frequency (switchable) 100 Hz / > 5 kHz I+ Us+ installed in electrical switchgear or in sealed enclosures. Improper use or failure to follow this application note Default setting of max. operating frequency 5 kHz will render the warranty or guarantee null and void. Response time (T ) 3.5 ms / 60 s 10-90 The devices shall only be installed in dry, indoor areas. I- GND Zero/span adjustment 5 % of upper range value Do not install the devices on or in the vicinity of easily ammable materials. Supply voltage U DC 24 V N Supply voltage range 16.8 V - 31.2 V 2. Short Description Current consumption at V approx. 25 mA N The bipolar isolation ampli er records bipolar analog signals (e.g., 10 V or 20 mA) and converts them into Transmission error < 0.1 % of upper range value < 94 mm/3.68 in > bipolar, analog standard signals. After conversion, the isolated signals are transmitted with high accuracy to the Temperature coe cient < 100 ppm / K output where they are available in an ampli ed form. In addition, unipolar signals (e.g., 0-20 mA or 0-10 V) Test voltage (input / output / supply) AC 2.5 kV, 50 Hz, 1 min 6. Installation Instructions and live zero signals (e.g., 4-20 mA or 2-10 V) can be adjusted independently of one another at both input and Permissible ambient operating temperature -25 C...+70 C ouput via DIP switches. Adjusting the limiting frequency is also performed via DIP switches. Storage temperature -40 C...+85 C Measured distance adjustment is carried out via zero/span potentiometers on the front of the device, while si- Width 6,0 mm / 0,236 in gnal switching is performed in a calibrated way, which requires no adjustment when switching to another range. Dimensions (HxD) 96 mm / 3.76 in x 94 mm / 3.68 in The device is supplied with 24 VDC, which can be e ciently commoned using lateral push-in type jumper bars. Connection technology Modules with CAGE CLAMP S A green LED on the front panel indicates normal operation. 2 2 Solid s 0,08 mm - 2,5 mm / AWG 28-12 The bipolar isolation ampli er provides safe isolation of input, output and supply circuits with 2.5 kV test voltage 2 2 Fine-stranded f-st 0.34 mm - 2.5 mm / AWG 22-12 to EN 61140. Strip length 9-10 mm / 0.37 in The current input is protected against overloading by a reversible fuse. The fuse switches back automatically as Approvals 1, UL508 (E175199) soon as the overload is no longer active. Standards EMC / CE DIN EN 61326-1 3. Installation 1. Push down jumper until fully 2. Jumper is inserted 3. Remove the jumper * EN 61000-6-2 Immunity to interference CAUTION: High voltage can cause electric shock or burns. inserted EN 61000-6-4 Emission of interference De-energize the system and the device before installation. Safe isolation acc. to DIN EN 61140 by increased isolation acc. to DIN EN 61010 part 1 up to AC/DC 300 V Caution: Take protective measures against electrostatic discharge (ESD) when operating the modules for overvoltage category II and pollution degree The devices snap onto DIN 35 rails without tools. A simple screwdriver is required to unlock the snap-on 2 between all circuits mounting foot and remove the device from the carrier rail. Potentials can be commoned using 859 Series Galvanic isolation AC/DC 600 V for overvoltage category II and 2- to 10-way push-in type jumper bars (see accessories). The jumpers must be inserted prior to connecting the pollution degree 2 acc. to DIN EN 61010 part 1 conductors for ease of installation. Push down the jumpers until fully inserted (see installation instructions). between all circuits. Use separators (item no. 209-191) between adjacent contacts for safe electrical isolation if the modules are alternately rotated 180 degrees when snapped onto the rail. For secure xing on the carrier rail, end stops (e.g., WAGO 249-116) must be mounted at the ends of a 8. LEDs and Error Indication module assembly. The LED (green), which is visible on the front, displays the following status: 4. Connect the wire * Observe the maximum admissible conductor cross-sections of the signal and power wires. * Please onl y use insulated actuating tool Green LED lights: Operating voltage applied (use item no. 210-720) 3.5 mm x 0.5 mm 9. DIP Switch Adjustability DIP switch S1 (4-fold) Input DIP switch S2 (6-fold) Output Max. operating frequency Default settings code code IN OUT = ON 1 2 3 4 1 2 3 4 5 6 - Input: 10 V a 20mA A 20mA 100 Hz - Output: 10 V b 10mA B 10mA 5 kHz - Max. Operating frequency: 5 kHz c 10V C 10V d 5V D 5V e 0...20 mA E 0...20 mA f 4...20 mA F 4...20 mA g 0...10 mA G 0...10 mA h 2...10 mA H 2...10 mA j 0...10 V J 0...10 V k 2...10 V K 2...10 V l 0...5 V L 0...5 V 9970-0966/0857-0409 2010-08-12 st 1...5 V M 1...5 V Subject to design changes < 96 mm/3.76 in >X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for wago manufacturer: Other Similar products are found below : 750-460 231-118/026-000 231-303/026-000 231-620/019-000 257-403 280-438 280-831 284-624 210-111 231-303/037-000 231-446/001- 000 NR 232-216/026-000 234-510 264-726 280-339 0283-0671 830-800/000-305 750-512 750-455 51251782 286-312 713-1428/107-000 731-138/048-000 750-459 750-517 793-3505 826-172 859-304 280-335 231-535/001-000 2604-1106 2604-1504 2606-1103/020-000 2624- 1103 2626-3103/020-000 821-104 713-1107 852-1411 2106-1307 2116-5307 832-1205 832-3604 2009-110 281-512/281-501 286-336 750-421 750-838 753-559 750-1505 787-732
