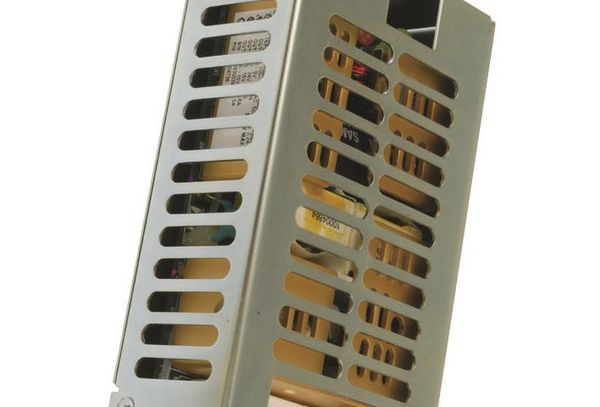

40 100 Watts xppower.com ECM Series Compact Size IT & Medical Approvals Convection cooled Class I and II Construction DC Input Version Available (DCM Series) PoE Isolation Version Available (POE Series) 3 Year Warranty Specification Input General Efficiency 80-85% depending on model Input Voltage 90-264 VAC (120-370 VDC) Isolation 4000 VAC Input to Output 2 x MOPP Input Frequency 47-63 Hz 440 Hz* ECM100 single output models, 1 x MOPP Input Current 40 W: 0.4 A max at 230 VAC ECM100 multi output and all ECM40/60 60 W: 0.6 A max at 230 VAC models (contact sales for 2 x MOPP), 100 W: 0.9 A max at 230 VAC 1500 VAC Input to Ground 1 x MOPP, Inrush Current 40 A max at 230 VAC 500 VAC Output to Ground Earth Leakage Current <125 A at 115 VAC/60 Hz Switching Frequency 70 kHz typical <210 A at 230 VAC/50 Hz 3 Power Density 40 W: 4.2 W/In Power Factor EN61000-3-2 3 60 W: 6.3 W/In 3 Input Protection Internal T3.15 A, 250 V fuse in line 100 W: 7.4 W/In and neutral MTBF 600 kHrs to MIL-HDBK-217F at 25 C, GB Output Environmental Output Voltage See tables Operating Temperature 0 C to +70 C. Refer to derating curves Output Voltage Trim 5% on 3.3 V & 5 V versions, 10% on for specific operating limitations. other single output models and V1 of Cooling Convection & fan-cooled ratings multi-output models. (See note 1 for (see derating curves) ECM40/60 models) Operating Humidity 95% RH, non-condensing Initial Set Accuracy 1.0% V1, 5% V2, V3 & V4 Storage Temperature -40 C to +85 C Minimum Load See tables Operating Altitude 3000 m Start Up Delay 1.5 s max Shock 30 g pk, half sine, 6 axes Start Up Rise Time 10 ms max Vibration 2 g rms, 5 Hz to 500 Hz, 3 axes Hold Up Time 16/75 ms min at 115/230 VAC Line Regulation 0.5% EMC & Safety Load Regulation 1% single output models Emissions EN60601-1-2, EN61204-3, FCC 20780, 3% V1, 5% V2 & V3 ECM40/60 EN55022 & EN55011, level B conducted multi-output models. EN55022 Level A radiated 1% V1 & V2, 5% V3 & V4 ECM100 Harmonic Currents EN61000-3-2, class A Cross Regulation 2% on ECM40/60 only Voltage Flicker EN61000-3-3 Over/Undershoot None at turn on/off ESD Immunity EN61000-4-2, level 3 Perf Criteria A Transient Response 4% max. deviation, recovery to within Radiated Immunity EN61000-4-3, 10 V/m Perf Criteria A 1% in 500 s for a 25% load change EFT/Burst EN61000-4-4, level 3 Perf Criteria A Ripple & Noise 1% pk-pk, 20 MHz bandwidth Surge EN61000-4-5, level 3 Perf Criteria A, Overvoltage Protection 115-135% Vnom, recycle input to reset SEMI F47 Overload Protection 110-150% on primary power limit, Conducted Immunity EN61000-4-6, 10 V Perf Criteria A auto recovery Dips & Interruptions EN61000-4-11, 30% 10 ms, 60% 100 ms, Short Circuit Protection Trip and restart (hiccup mode) 100% 5000 ms, Perf Criteria A, B, B EN60601-1, 30% 500 ms, 60% 100 ms, Temperature 0.05%/C 100% 10 ms, 100% 5000 ms, Coefficient Perf Criteria A, A (with 50% load), A, B Peak Load 120% for 100 ms ECM40/60 (see note 3) Safety Approvals EN60601-1, ANSI/AAMI ES60601-1, CSA22.2 No.60601-1 per cUL, Including * Safety approvals cover frequency range 47-63 Hz Risk Management, EN60950-1, UL60950-1 AC DCAC DC ECM40 Models and Ratings Output 1 Output 2 Output 3 (2) Output Power Model Number Current Current Current Voltage Voltage Voltage (3) Min/Max Min/Max Min/Max 5.0 V 0.0 A/8.0 A ECM40US05 7.0 V 0.0 A/5.7 A ECM40US07 9.0 V 0.0 A/4.4 A ECM40US09 12.0 V 0.0 A/3.5 A ECM40US12 15.0 V 0.0 A/2.7 A ECM40US15 18.0 V 0.0 A/2.2 A ECM40US18 24.0 V 0.0 A/1.7 A ECM40US24 33.0 V 0.0 A/1.2 A ECM40US33 40 W 48.0 V 0.0 A/0.9 A ECM40US48 +5.0 V 0.5 A/6.0 A +12.0 V 0.1 A/2.0 A ECM40UD21 +5.0 V 0.5 A/6.0 A +15.0 V 0.1 A/1.5 A ECM40UD22 +5.0 V 0.5 A/6.0 A +12.0 V 0.1 A/2.0 A -12.0 V 0.0 A/0.5 A ECM40UT31 +5.0 V 0.5 A/6.0 A +24.0 V 0.1 A/1.0 A -12.0 V 0.0 A/0.5 A ECM40UT32 +5.0 V 0.5 A/6.0 A +15.0 V 0.1 A/1.5 A -15.0 V 0.0 A/0.5 A ECM40UT33 +3.3 V 0.5 A/6.0 A +5.0 V 0.1 A/1.5 A +12.0 V 0.0 A/0.5 A ECM40UT34 +5.0 V 0.5 A/6.0 A +3.3 V 0.1 A/1.5 A +12.0 V 0.0 A/0.5 A ECM40UT35 Notes 1. V2 will track a change in V1 by the same percentage change in voltage as V1 is trimmed. 2. To receive unit with cover fitted, add suffix -C to model number. For Class I operation only. 3. A 120% peak load can be taken for up to 100 ms with a 25% duty cycle. Average load not to exceed 40 W. Available from Farnell & element14. See pages 284-290. Available from Newark. See pages 291-296. Mechanical Details 4.00 (101.6) Input Connector J1 3.75 (95.25) 1.20 (30.5) Pin 1 Line Pin 2 Neutral J1 mates with 1 Molex housing 43061-0003 & Molex series 5194 crimp terminals 2.00 J2 Ground tab (0.25 faston) standard (50.8) Output Connector J2 1.75 6 Pin Single Multi (44.45) 1 V1 +V1 2 V1 +V1 3 RTN RTN 4 RTN RTN 5 NC V3 0.25 x 0.32 faston ground tab 6 NC +V2 V Adj. 4 x 0.156 (3.96) mounting holes 0.14 (3.5) J2 mates with 0.312 (7.92) clearance top and bottom SMD component height Molex housing 43061-0006 & Molex series 5194 crimp terminals Notes 1. All dimensions in inches (mm). Tolerance .xx = 0.02 (0.50) .xxx = 0.01 (0.25) 4. Mating connector kit available. Order part number ECM40/60 CONKIT. 2. Weight: approx. 0.33 lbs (150 g) 5. Covers available. Order part number ECM40/60 COVER . 3. Cable harnessess with 300 mm wire available. Cover dimensions are 4.49 x 2.52 x 1.52 (114 x 64 x 38.5) For single output models, order part number ECM40/60S LOOM. 6. 3D drawing files available from www.xppower.com/cad.php. For multi-output models, order part number ECM40/60DT LOOM . Derating Curves All ECM40 models convection cooled All ECM40 models with 5 CFM 100% 100% 75% 75% 50% 50% 25% 25% 0 % 0 % 0 30 40 50 60 70 80 0 30 40 50 60 70 80 10 20 10 20 Ambient Temp (C) Ambient Temp (C) Note: Derate by 10% if cover is fitted Consult longform datasheet for installation information regarding optimum thermal ratings in convection-cooled applications. Output Power Output Power
