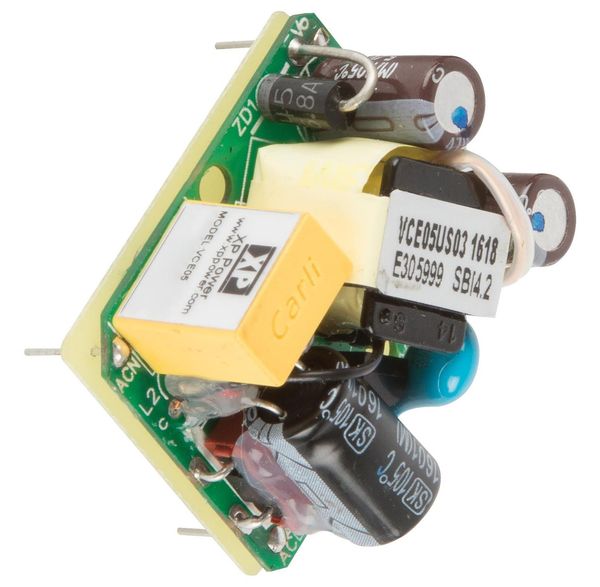

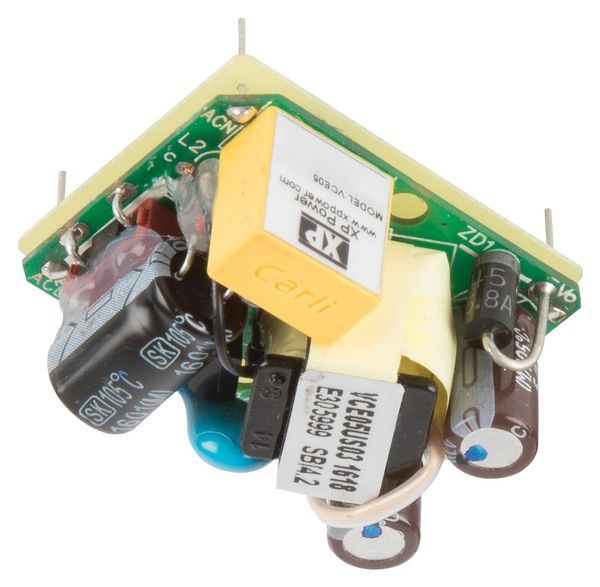

AC-DC Power Supplies VCE05 Series 5 Watts Compact Size Single Outputs from 3.3 to 48 V PCB Mount Encapsulated & Open Frame Class II <0.3 W No Load Input Power Peak Load Capability GREEN POWER Low Cost 3 Year Warranty Dimensions: VCE05: The VCE05 is a series of open frame and encapsulated AC-DC single output power supplies 1.30 x 1.10 x 0.75 (33.02 x 27.94 x 19.05 mm) VCE05-P: designed for low cost ITE and Industrial applications. The series provides two mechanical options 1.20 x 1.00 x 0.705 (30.8 x 25.4 x 17.9 mm) including open frame and encapsulated PCB mount. With approvals to world-wide safety standards, compliance with class B for conducted and radiated emissions and a 130%, 30s peak load capability, these class II isolation parts benefit system designers with easy integration into a wide range of applications. Models & Ratings Output Current (2) Output Power Output Voltage Model Number (1) Nominal Peak 5 W 3.3 VDC 1210 mA 1960 mA VCE05US03 5 W 5.0 VDC 1000 mA 1300 mA VCE05US05 5 W 9.0 VDC 550 mA 722 mA VCE05US09 5 W 12.0 VDC 410 mA 541 mA VCE05US12 5 W 15.0 VDC 330 mA 433 mA VCE05US15 5 W 24.0 VDC 210 mA 270 mA VCE05US24 5 W 48.0 VDC 100 mA 135 mA VCE05US48 Notes 1. Peak load lasting <30 s with a maximum duty cycle of 10%, average output power not to exceed nominal. 2. For Open Frame version add suffix -P to model number, e.g. VCE05US12-P. Summary Characteristic Minimum Typical Maximum Units Notes & Conditions Input Voltage Range 85 264 VAC Derate from 100% at 90 VAC to 90% at 85 VAC No Load Input Power 0.3 W Efficiency 78 % Model dependant Operating Temperature -25 +70 C Derate linearly from 100% at +50 C to 50% at +70 C EMC EN55022 Level B Conducted & Radiated, EN601000-3-2, EN61000-3-3, EN60601-1-2 Safety Approvals EN60950, UL60950, IEC60950 www.xppower.com 1Characteristic Minimum Typical Maximum Units Notes & Conditions Output Voltage 3.3 48 VDC Initial Set Accuracy 3/2 % 3% for 03 & 05 models, 2% for others at 50% load Minimum Load 0 A No minimum load required Line Regulation 1.0 % 3% for 03 & 05 models, 2% for others from 10% to 100% Load Regulation 3/2 % load Start Up Delay 2 s Start Up Rise Time 14 ms Hold Up Time 6 9 ms at full load and 115 VAC Deviation, recovery within 1% in less than 500 s Transient Response 4 % for a 25% load change 180 mV pk-pk 3.3-5 V, 20 MHz bandwidth Ripple & Noise 1 % pk-pk 9 V to 48 V models, 20 MHz bandwidth Overvoltage Protection 115 140 % Vnom Recycle input to reset Overload Protection 110 180 % Short Circuit Protection Trip & Restart (hiccup mode) Temperature Coefficient 0.05 %/C AC-DC Power Supplies VCE05 Series Input Characteristic Minimum Typical Maximum Units Notes & Conditions Input Voltage Range 85 264 VAC Input Frequency 47 63 Hz Input Current - Full Load 0.10/0.06 A rms At 115/230 VAC No Load Input Power 0.3 W Inrush Current 40 A At 230 VAC Earth Leakage Current Class II construction no earth Input Protection Internal T1.0 A/250 VAC fuse fitted in line Output General Characteristic Minimum Typical Maximum Units Notes & Conditions Efficiency 78 % Model Dependant Isolation: Input to Output 3000 VAC Switching Frequency kHz 40 3 Power Density 5.9 W/in Mean Time Between Failure >400 kHrs MIL-HDBK-217F, +25 C GB 0.03 (14) lb (g) Open frame versions (-P) Weight 0.053 (24) lb (g Encapsulated version Efficiency Graphs VCE05US12 VCE05US24 100% 100% 80% 80% 115Vac 60% 60% 230Vac 40% 40% 20% 20% 10 20 30 40 50 60 70 80 90 100 10 20 30 40 50 60 70 80 90 100 Load (%) Load (%) www.xppower.com 2 Efficiency Efficiency
