X-On Electronics has gained recognition as a prominent supplier of TS-1002S-AR06526 Tactile Switches across the USA, India, Europe, Australia, and various other global locations. TS-1002S-AR06526 Tactile Switches are a product manufactured by XUNPU. We provide cost-effective solutions for Tactile Switches, ensuring timely deliveries around the world.

TS-1002S-AR06526 XUNPU

Name: TS-1002S-AR06526
Brand: XUNPU
SKU: TS1002SAR06526_XUNPU
Availability: InStock
Rating: 5 (11 reviews)

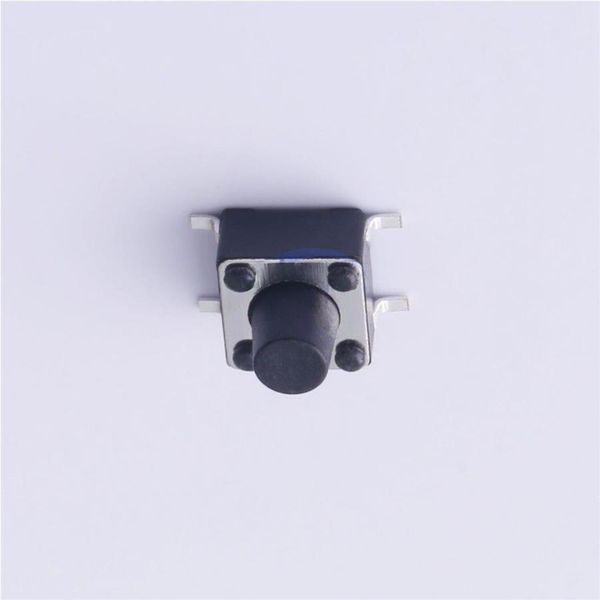

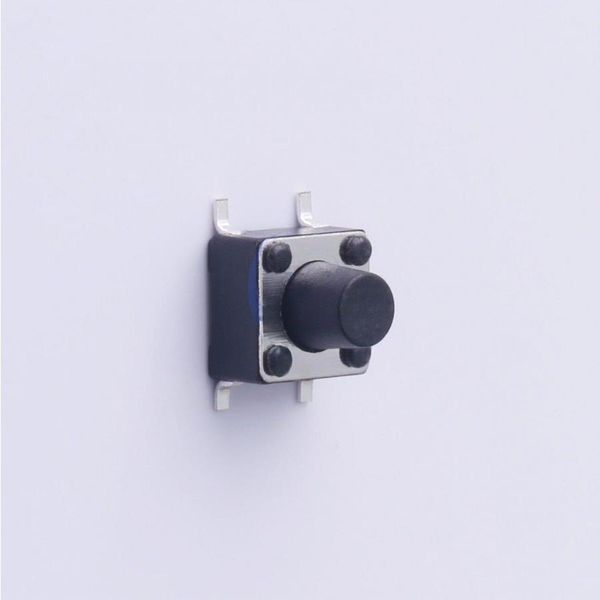

TS-1002S-AR06526 electronic component of XUNPU

Images are for reference only
See Product Specifications

Part No.	TS-1002S-AR06526
Manufacturer:	XUNPU
Category:	Tactile Switches
Description:	NO Gull Wing 50mA 6mm 100MΩ 100000 260gf@±50gf 12V 6mm -30℃~+80℃ 6.5mm Black Round Button Brick nogging SPST SMD Tactile Switches ROHS
Datasheet:	TS-1002S-AR06526 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

20: USD 0.0551 ea
Line Total: USD 1.1

Availability - 8012
Ship by Fri. 14 Feb to Wed. 19 Feb

MOQ: 20 Multiples: 20
Pack Size: 20

TS-1002S-AR06526 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

8012

Ship by Fri. 14 Feb to Wed. 19 Feb

MOQ : 20
Multiples : 20

20 : USD 0.0551
200 : USD 0.0434
800 : USD 0.0303
1600 : USD 0.0243
9600 : USD 0.0216
20000 : USD 0.0201

Specifications

Manufacturer

XUNPU XUNPU

Product Category

Tactile Switches Tactile Switches

Operating Force

260gf@ ± 50gf 260gf@ ± 50gf

Voltage Rating DC

12 V 12 V

Mounting Style

Brick nogging Brick nogging

Category

Tactile Switches Tactile Switches

Rohs

y y

Strike Gundam

NO NO

Pin Style

Gull Wing Gull Wing

Contact Current

50 mA 50 mA

Switch Length

6 mm 6 mm

Insulation Resistance

100 MOhms 100 MOhms

Mechanical Life

100000 100000

Switch Width

6 mm 6 mm

Operating Temperature

- 30 C ~ + 80 C - 30 C ~ + 80 C

Switch Height

6.5 mm 6.5 mm

Actuator/Cap Color

Black Black

Actuator Style

Round Button Round Button

Circuit

SPST SPST

Notes:- Show Stocked Products With Similar Attributes.
