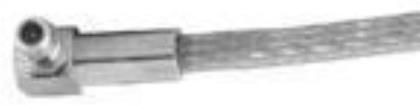

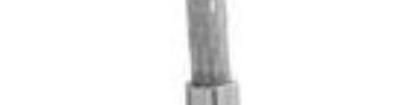

MMCX Right Angle Crimp Type Plug - INCHES (MILLIMETERS) CUSTOMER DRAWINGS AVAILABLE UPON REQUEST Captivated Contact CABLE TYPE PART NUMBER A B TERMINATION RG-316 DS, RG-188DS 135-3404-101 .412 (10.46) .334 8.48) Crimp Sleeve 1. Identify piece parts. (3 piece parts) 2. Strip cable jacket to dimensions shown. Do not nick braid or center conductor during strip operations. Tin center con- ductor. Slide crimp sleeve onto cable jacket. 3. Flair braid and assemble crimp stem of body subassem- bly under braid onto cable making certain that the cable center conductor enters contact slot as shown. Arrange braid uniformly around crimp stem. Slide crimp sleeve over braid and crimp securely using recommended crimp hex. 4. Solder center conductor to contact through rear access port. Use a minimum amount of solder for a full fillet joint. 5. Press end cap into body access port using .156 (3.96) TM diameter flat punch or Johnson Components assembly tool 141-0000-910. CABLE GROUP PART NUMBER CRIMP HEX RG-316DS, 188DS 135-3404-101 .151 (3.83) Emerson Network Power Connectivity Solutions 299 Johnson Avenue SW, Waseca, MN 56093 800 -247- 8256 +1 (507) 833-8822 www.EmersonConnectivity.comMMCX - 50 Ohm Connectors Specifications ELECTRICAL RATINGS MECHANICAL RATINGS Impedance: 50 ohms Engagement Design: Series MMCX Frequency Range: Connectors ................................................ 0-6 GHz Engagement/Disengagement Force: 8 lbs. max axial engagement Dummy loads ............................................ 0-1 GHz 1.4 lbs. min axial disengagement VSWR: (f = GHz) Straight Right Angle Contact Retention: 2.0 lbs. minimum axial force Cabled Connectors Cabled Connectors Cable Retention: Axial Force* Torque .047 dia flexible ....................................1.20 1.14 + .07f (pounds) (in-oz) RG-178, RG-316, RG-316DS ..............1.20 1.25 Connectors for .047 flexible ........................3.5 N/A .086 semi-rigid .....................................1.15 1.15 Connectors for RG-178 ...............................7.0 N/A Uncabled receptacles, dummy loads ................................................ N/A Connectors for RG-316 ..............................20.0 N/A Working Voltage: Connectors .........................170 Vrms at sea level Connectors for RG-316DS .........................25.0 N/A Dummy loads ................................................... N/A Connectors for .086 semi-rigid ...................30.0 16 Dielectric Withstanding Voltage: Connectors...500 Vrms at sea level *Or cable breaking strength whichever is less. Dummy loads ............................ N/A Durability: .............................................................. 500 cycles minimum Insulation Resistance: 1000 megohms min Contact Resistance: (milliohms maximum) After ENVIRONMENTAL RATINGS (Meets or exceed the applicable paragraph Initial Environmental of MIL-C-39012) Center contact (straight cabled connectors Operating Temperature: Connectors ......................... - 65C to + 165C and uncabled receptacles) ......................5.0 8.0 Dummy loads .................... - 65C to + 125C Center contact (right angle cabled Thermal Shock: Connectors: MIL-STD-202, Method 107, Condition C, connectors) ..............................................5.0 15.0 except -55C to + 155C (N/A dummy loads) Outer contact (all connectors) .....................1.0 1.5 Corrosion: MIL-STD-202, Method 101, Condition B (N/A dummy loads) Braid to body ...............................................1.5 N/A Shock: MIL-STD-202, Method 213, Condition B (N/A dummy loads) Corona Level: Connectors ..................... 190 volts min at 70,000 feet Vibration: MIL-STD-202, Method 204, Condition D (N/A dummy loads) Dummy loads ......................................................... N/A Moisture Resistance: MIL-STD-202, Method 106 (N/A dummy loads) Insertion Loss: (dB max tested at 1 GHz) Straight cabled connectors .............................................................. 0.1 MATERIAL SPECIFICATIONS Right angle cabled connectors ........................................................ 0.2 Bodies: Brass per QQ-B-626, gold plated* per MIL-G-45204 .00001 Uncabled receptacles, dummy loads ............................................. N/A min. RF Leakage: (dB minimum, tested at 2.5 GHz) Contacts: Beryllium copper per QQ-C-530, gold plated* per MIL-G- Flexible cable connectors .......................................................... -60 dB 45204 .00003 min086 semi-rigid ........................................................................... -70 dB Interface Spring: Beryllium copper per QQ-C-530, gold plated* per Dummy loads ................................................................................. N/A MIL-G-45204 .00003 min. RF High Potential Withstanding Voltage: (400 Vrms at 4 and 7 MHz) Insulators: PTFE fluorocarbon per ASTM D 1710 and ASTM D 1457 Power Rating (Dummy Load): - 0.5 watt +25C, derated to 0.25 Crimp Sleeves: Copper per WW-T-799 or brass per QQ-B-626, gold watt +125 C plated per MIL-G-45204 .00001 min. Mounting Hardware: Brass per QQ-B-626 or QQ-B-613, gold plated per MIL-G-45204 .00001 min. Avoid user injury due to misapplication. See safety advisory definitions inside front cover. *All gold plated parts include a .00005 min nickel barrier layer. JACK PLUG Mating Engagement for MMCX Series 1. ID of contact to meet VSWR mating characteristics and connector durabil- ity when mated with a dia .016 +/- .001 male contact. 2. Must meet the force to engage and dis- engage when mated with mating part. JACK PLUG Emerson Network Power Connectivity Solutions 299 Johnson Avenue SW, Waseca, MN 56093 800 -247- 8256 +1 (507) 833-8822 www.EmersonConnectivity.com
