BR1 BusBoard Prototype

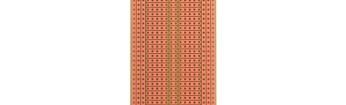

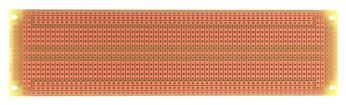

BR1 - Solderable PC BreadBoard Transfer your circuit to this permanent circuit board from a plug-in breadboard to create a rugged long-lasting prototype. 2 Features Single sided, 1oz/ft copper with an anti-tarnish coating for easy soldering. Transfer your circuit and wires without Holes are drilled on 0.1 (2.54mm) centers. recutting wires or changing your layout. 0.042 (1.07mm) holes sized for ICs or The BR1 Solderable BreadBoard has the square post headers. same pattern and spacing as a standard 830 1226 holes. connection point solderless breadboard. 1.85 wide, 7.05 long, 1/16 thick Soldered joints provide a more reliable (47 x 179 x 1.6mm). longterm connection than solderless Order Part BR1 contacts. Related Parts: BB830 and BB830T breadboards have Standard 5-hole strip for each IC pin, just the same layout in a solderless plug-in breadboard. like solderless breadboards. Note:The SB830 Solderable PC BreadBoard is similar Four power rails like solderless breadboards to BR1, and it has a silkscreen on the top side. plus two bonus rails for power or signals. Bonus two-hole pads along the centerline allow DIL (dual in-line) headers to be used. Lead free etched copper PCB with an anti-tarnish coating for easy soldering. 0.1 hole spacing for DIP integrated circuits and headers. Move Your Circuit Four PCB mounting holes provided. Specifications High-quality etched FR4 glass-epoxy circuit board. Board Layout (actual size) BusBoard Prototype Systems - Built for designers www.BusBoard.com sales busboard.com BPS-MAR-(BR1)-001 Rev 4.00 X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for PCBs & Breadboards category: Click to view products by BusBoard Prototype manufacturer: Other Similar products are found below : 8004 8007 8016 8017 8028 8029 1268-12 1268-10 1320833-1 923252-R 3410 3396 8006 8015 8018 8019 8020 1268-19 1268-20 8026 1239-19 SBBTH1520-1 SBBTH1506-1 SBBTH4080-1 SBBTH3030-1 SBBTH1512-1 SBBTH1508-1 SBBSM2120-1 SBB2808-1 SBB2805-1 SBB1605-1 SBB1602-1 SBB1005-1 SBB1002-1 3426 32P15WE ZAS1X206203XRPU160 SBBTH3040-1 SBB0004-1 SBB830-QTY10 7115 923749-I RE013-LF RE014-LF RE015-LF RE1210-LF RE200-C3 RE210-S1 RE317-HP RE438-LF
