ITR8307/L24/TR8 Everlight

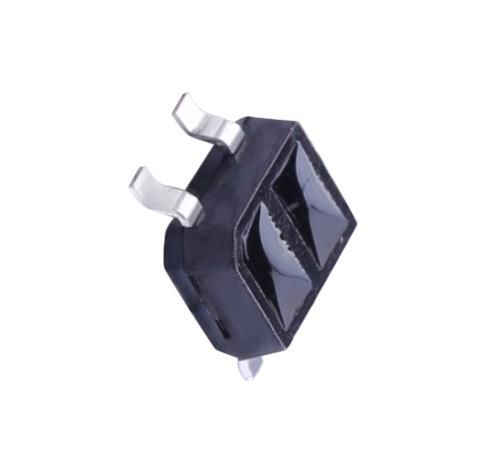

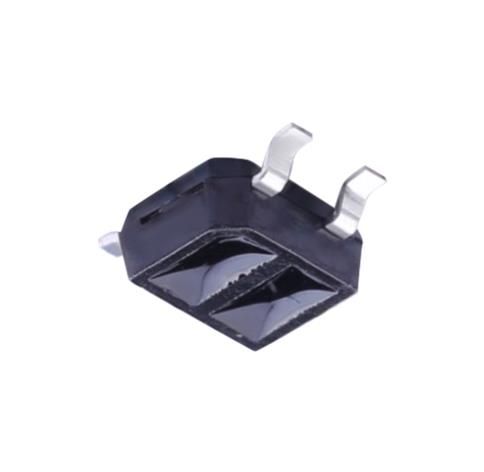

ITR8307-L24/TR8 Features Fast response time High sensitivity Cut-Off visible wavelength Thin Compact Pb free This product itself will remain within RoHS compliant version. Compliance with EU REACH. Compliance Halogen Free .(Br <900 ppm ,Cl <900 ppm , Br+Cl < 1500 ppm). Description ITR8307-L24/TR8 is a light reflection switch which includes a GaAs IR-LED transmitter and a NPN photo-transistor with a high photosensitive receiver for short distance, operating in the infrared range. Both components are mounted side- by- side in a plastic package. Applications Camera VCR Floppy disk driver Cassette type recorder Various microcomputer control equipment Device Selection Guide Device No. Chip Material IR GaAlAs PT Silicon 1 Copyright 2010, Everlight All Rights Reserved. Release Date: Aug.15.2016. Issue V7 No: DRX-0000011 www.everlight.com DATASHEET ITR8307-L24/TR8 Package Dimensions Absolute Maximum Ratings (Ta=25 ) Parameter Symbol Rating Unit Power Dissipation at(or below) 25 Pd 75 mW Free Air Temperature Reverse Voltage V 5 V R Input Forward Current I 50 mA F Peak Forward Current (*1) Pulse width I 1 A FP 100s, Duty cycle=1% Collector Power P 75 mW C Dissipation Collector Current I 50 mA C Output Collector-Emitter B V 30 V CEO Voltage Emitter-Collector B V 5 V ECO Voltage Operating Temperature Topr -40~+85 Storage Temperature Tstg -40~+90 Lead Soldering Temperature Tsol 260 (*2) Notes: ( 1) tw=100 sec. , T=10 msec. ( 2) t=5 Sec 2 Copyright 2010, Everlight All Rights Reserved. Release Date: Aug.15.2016. Issue V7 No: DRX-0000011 www.everlight.com
