ITR9608-F Everlight

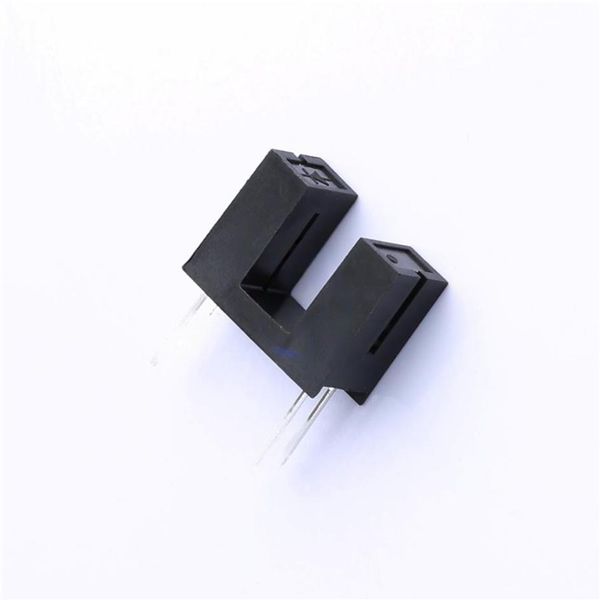

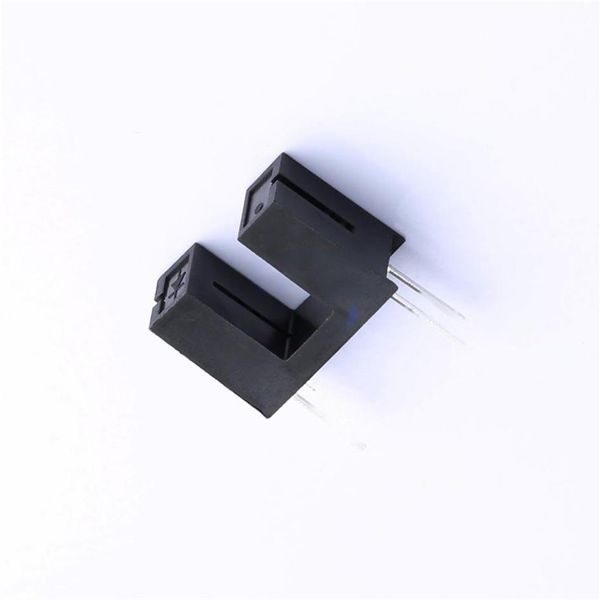

Opto Interrupter ITR9608-F Features Fast response time High analytic Cut-off visible wavelength p=940nm High sensitivity Pb free This product itself will remain within RoHS compliant version Compliance with EU REACH Description The ITR9608-F consist of an infrared emitting diode and a silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing, The phototransistor receives radiation from the IR LED only .This is the normal situation. But when an object is in between, phototransistor could not receives the radiation. For additional component information , please refer to IR928-6C and PT928-6C Applications Mouse Copier Switch Scanner Floppy disk driver Non-contact Switching For Direct Board www.everlight.com Copyright 2010, Everlight All Rights Reserved. Release Date: 2016/11/15. Issue No: DRX-0000076 Rev.4 1 DATASHEET Opto Interrupter ITR9608-F Device Selection Guide Device No. Chip Materials Lens Color IR GaAlAs Water clear PT Silicon Water clear Absolute Maximum Ratings (Ta=25C) Parameter Symbol Ratings Units Power Dissipation at(or below) 25 Pd 75 mW Free Air Temperature Reverse Voltage V 5 V R Input Forward Current I 50 mA F Peak Forward Current (*1) I 1 A FP Pulse width 100Ps, Duty cycle=1% Pd 75 mW Collector Power Dissipation Collector Current I 20 mA C Output Collector-Emitter Voltage B V 30 V CEO B V 5 V ECO Emitter-Collector Voltage Operating Temperature Topr -25~+85 C Storage Temperature Tstg -40~+85 C Lead Soldering Temperature (*2) Tsol 260 C (3mm from the package) Note: (*1) tw=100 Psec. , T=10 msec. Note: (*2) Soldering time5 sec. Electro-Optical Characteristics (Ta=25C) Parameter Symbol Min. Typ. Max. Units Conditions Forward Voltage V --- 1.2 1.5 V I =20mA F F Input Reverse Current I --- --- 10 PA V =5V R R Peak Wavelength --- 940 --- nm I =20mA P F 2 I --- --- 100 nA V =20V,Ee=0mW/cm Dark C urrent CEO CE Output C-E Saturation I =2mA C V (sat) --- --- 0.4 V CE 2 Voltage ,Ee=1mW/cm V =5V CE Collect Current I (ON) 0.5 --- --- mA C I =20mA F Transfer V =5V Rise time t --- 15 --- Psec CE Characteristics r I =1mA C Fall time t --- 15 --- Psec R =1K f L Copyright 2010, Everlight All Rights Reserved. Release Date: 2016/11/15. Issue No: DRX-0000076 Rev.4 www.everlight.com 2
