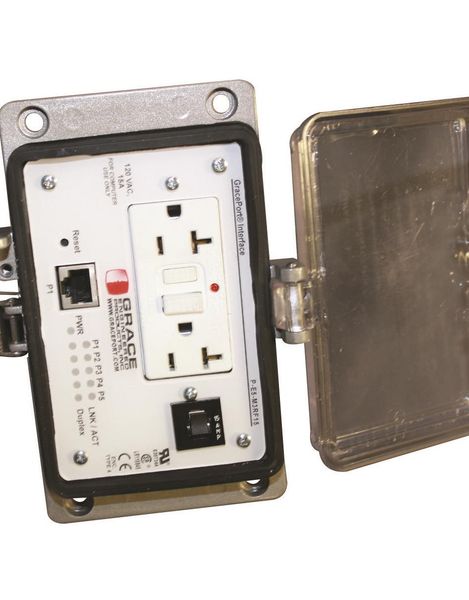

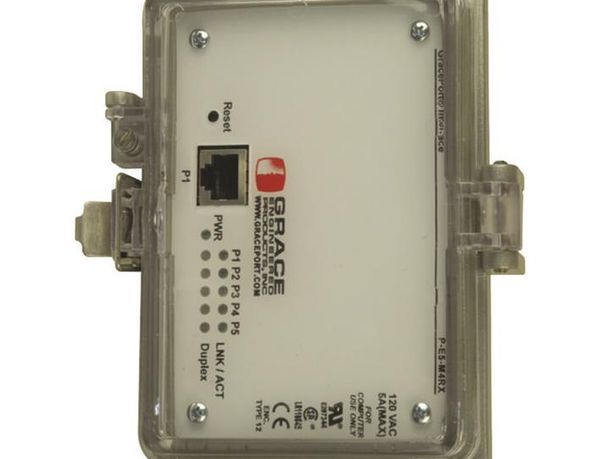

R38 GracePort E5 Unmanaged E5 Industrial Ethernet Switch CONNECTOR CODE --- -- PPPP PPP1111 **** ** MK 33 RR F-O- 0 F -- HOUSING/ POWER OPTIONS Keep Panel Doors Closed...Save Panel Space NEMA CODES CODES The GracePort Unmanaged Ethernet Switch gives you more reasons to keep your Unlimited Combos Available control panel door closed and limit exposure to voltage. Under NFPA 70E, opening Some Common Configurations: Part Numbers control panel doors is a time consuming process. Combining safety, productivity, and cost savings into one thru-door package offer you these benefits: UL Type 4 (IP-65) with GFCI* and Type A(F) USB P-E5P11-M3RF0 Interior status LEDs (port P2 - P5) duplicated on front for thru-door diagnostics. with GFCI* and 15 Amp CB P-E5-M3RF15 Program multiple devices safely from outside the panel. Ethernet Switch only P-E5-M3RX Reduced cost due to panel space savings. UL Type 4X (IP-65) Convenient external RESET and Power LED indication. with GFCI* and Type A(F) USB P-E5P11-M2RF0 Required external power supply: 24VDC only Available in UL Type 12/4/4X configurations to maintain enclosure rating. with GFCI* and 15 Amp CB P-E5-M2RF15 Designed to fit the Inside-Outlet GFCI for NFPA 79 Compliance. Ethernet Switch only P-E5-M2RX Provisions available for other outlets types and interfaces to meet all your needs. UL Type 12 Robust design: (0-60C) with an MTBF 938,570 hours. with GFCI* and Type A(F) USB P-E5P11-M4RF0 with GFCI* and 15 Amp CB P-E5-M4RF15 Unmanaged Ethernet switches provide simple communication between Ethernet Ethernet Switch only P-E5-M4RX devices. With diagnostics limited to the LEDs, you must be able to see the LEDs to diagnose communication problems. Our dual inside-out LED design allows you to see *All GracePorts ordered with a GFCI are automatically the status of each port from the inside and outside the panel. upgraded to our patent Inside-Outlet free of charge PANEL SPACE FRONT REAR SAVINGS 4.5 5.0 P-E5P11-M3RF0: Ethernet Switch with Port P-E5-M3RF3: Interior View Ports P2 - P1 on front, Type A USB, and our patented P5, Inside-Outlet ,3A Circuit Breaker Inside-Outlet in a UL Type 4 Enclosure. in a UL Type 4 Enclosure. SPECIFICATIONS: HOUSING APPROVALS: SPECIFICATIONS: ELECTRICAL OUTLET UL RECOGNIZED: E207344 (Outdoor Use) Housing: Cast aluminum base Low voltage (data), limited to 30 VDC Latch: Type 304 Stainless Steel (1CR18NI19) CE: EN61010/EN60950 High voltage supply (for computer use only) Cover: Polycarbonate, UV rated, V-O Flame rated 120 VAC, 15A (UL), 5A (CSA) R R 230-240 VAC, 16A (CE only) Gasket: Thermoplastic elastomer RoHS Insert Material: Acrylic UL94HB 5001 Tremont Avenue Davenport, IA 52807 (800) 280-9517 Fax: (563) 386-9639 2009 Grace Engineered Products, Inc. Data:E5:2/2009 www.graceport.com GracePort is a registered Trademark of Grace Engineered Products, Inc 8.6 217,4 Physical Ports Physical Ports 10/100 Base-T(X) Ports in RJ45 Optional (5) Total, P1 located on front, P2-P5 on rear Circuit Auto MDI/MDIX Breaker or Interface Technology P1 P2 P3 P4 P5 IEEE 802.3 for 10BaseT, P1 Ethernet Standards (Layer 2) IEEE 802.3u for 100BaseT(X), IEEE 802.3x for Flow control 8.6 217,4 .6 15 MAC Table 1024 MAC addresses Processing Store-and-Forward Optional Circuit 148,800pps (100Mbps) Breaker 6.50 165 Maximum Throughput Rate or Interface 148,80pps (10Mbps) P1 P2 P3 P4 P5 LED indicators P1 Power indicator: Green - Power LED x 1 Front: Green for port Link/Act6 15 3.78 96 10/100TX RJ45 port indicator: Yellow for Duplex/Collision. Rear Ports (P2 - P5): Identical LED indicators on RJ45 jack. 6.50 165 Power Input power: 24VDC (9VDC min./30VDC max.) input on 3-pin terminal block. 3.82 97.0 Power consumption (Typical): 2.5 Watts max Overload current protection: Yes 5.0 127.6 Reverse polarity protection: Yes 3.78 96 Physical Characteristic 1.65 42.3 Dimensions in GracePort Per figure 1 Weight (approx. with GFCI outlet) : 1.85 lbs / .84 Kg 3.82 97.0 Environmental Storage Temperature: -40 to 85C (-40 to 185F) 2.54 64.4 Operating Temperature -10 to 60C (14 to 140F) 5.0 127.6 Operating Humidity: 10% to 90% Non-condensing 0.37 9.5 Regulatory approvals 1.65 42.3 EMI/EMS: FCC Part 15, CISPR (EN55022) class B, EN6100-3-2, EN61000-4-2 (ESD), EN61000-4-3 (RS),EN6100-3-3, EN61000-4-4 (EFT),EN61000-4-5 (Surge), EN55024, EN61000-4-6 (CS),EN61000-4-8, EN61000-4-11 2.54 64.4 Shock: IEC60068-2-27 5.83 148 Drop Test: ISTA-1A Vibration: IEC60068-2-6 0.37 9.5 Safety: En60950, UL60950-1 3.19 81 2.76 70 24VDC 5.83 148 Power Supply .25 6.5 Frequently Asked Questions: 4.85 123 figure 1: Wiring Diagram 3.19 81 2.76 70 Why doesn t my Ethernet Switch respond after I turned on the power 24VDC Power Supply The green power LED should illuminate after the power is properly connected. If the .25 6.5 4.85 123 figure 1: Wiring Diagram green LED is not ON, check the voltage of the power supply to issue that the input voltage range is between 9V~30V. Instructions: I cant make an Ethernet connection The E5 has no serviceable parts inside and the product should Verify that the ethernet cable is plugged in correctly. If so, try a different Ethernet cable. be returned to GEP for service. P1, P2, P4, and P5 are for functions likeLA,PROGRAM INTERFAC,PL, etc. What can I do if the Ethernet switch does not function properly Press the reset button on the front of the GracePort Ethernet switch to restart it. 1. Unpack the GracePort with the E5 Ethernet Switch. Mount assembly with gasket to the enclosure. What type of Ethernet cable do I need This switch supports auto MDI/MDI-X operation, so the Ethernet switch should function 2. Remove orange warning label and connect 24VDC nominal properly no matter the Ethernet cable is Straight-Through or Cross-Over. (9-30VDC range) to the green terminal block on the rear of the unit as per above wiring diagram. 3. Connect ethernet device cable(s) to the E5 ethernet switch Warranty: Grace Engineered Products Inc.(GEP) warrants for a period of (18) months from the date as per IEEE 802.3 applicable standards. on the invoice or (12) months from installation, that its products will be merchantable quality free from defects in material, workmanship or design each as determined, by the date of shipment by GEP, by 4. Apply Isolated Limited Voltage souce to the unit. Verify that generally recognized, applicable practices, procedures in the industry. GEP will not be liable for the power LED in the front is illuminated. Verify that the customer modifications or designs made to the standard products. Repair and replacement hardware LINK/ACT and DUPLEX status LED s properly indicate that the is warranted for 6 months from date of shipment or the remainder of the original warranty term, connected device(s) are communicating with the E5 Ethernet whichever is longer. switch as per above. 5001 Tremont Avenue Davenport, IA 52807 (800) 280-9517 Fax: (563) 386-9639 2009 Grace Engineered Products, Inc. Data:E5:5/2009 www.graceport.com GracePort is a registered Trademark of Grace Engineered Products, Inc
