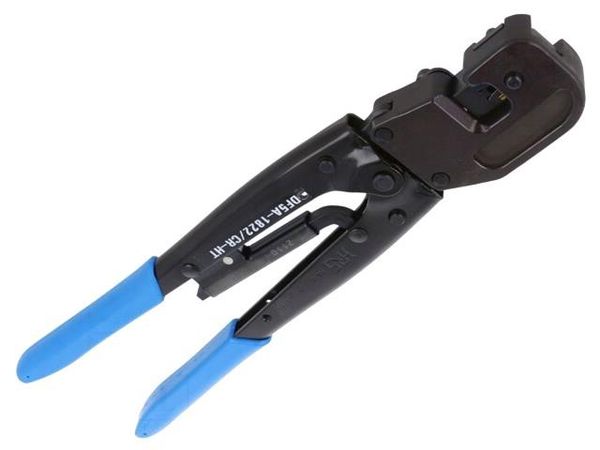

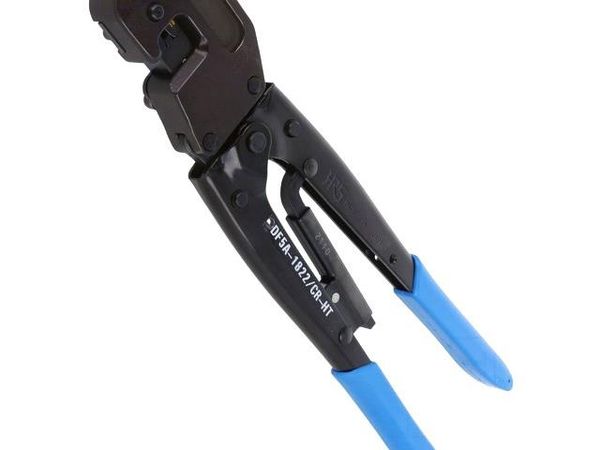

Part No.DF5A-1822/CR-HT
Manufacturer: Hirose
Category: Crimpers / Crimping Tools
Description: Crimpers / Crimping Tools MINI POTTING CONN AWG18-22 SKT CONT
Datasheet: DF5A-1822/CR-HT Datasheet (PDF)
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
1: USD 1100.7243 ea
Line Total: USD 1100.72
Availability - 0
MOQ: 1  Multiples: 1
Pack Size: 1
