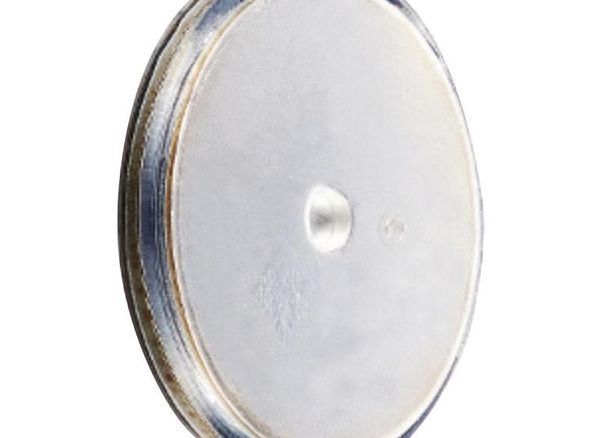

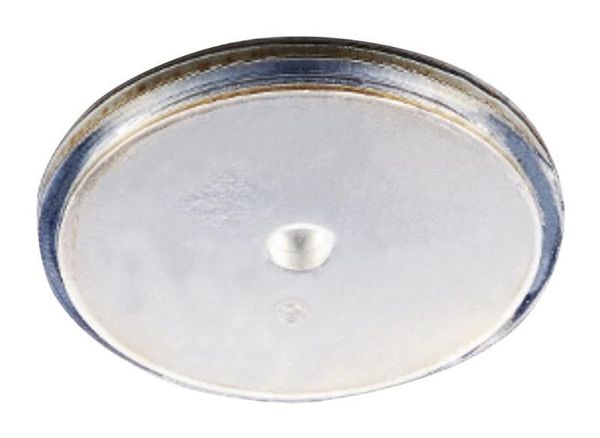

Technische Informationen / technical information Kenndaten Netz-Gleichrichterdiode 38DN06B02 Rectifier Diode Key Parameters VRRM 400 V - 600 V IFAVM 5140 A (TC=113 C) IFSM 37400 A 3570A (TC=55C) VT0 0,74 V rT 0,049 m RthJC 9,6 K/KW Clamping Force 15 30 kN Max. Diameter 38 mm Cathode Diameter 35 mm Height 4 mm For type designation please refer to actual short form catalog Technische Informationen / technical information Netz-Gleichrichterdiode 38DN06B02 Rectifier Diode Elektrische Eigenschaften / Electrical properties Hchstzulssige Werte / Maximum rated values Periodische Spitzensperrspannung T = -40C... T V 400 V vj vj max RRM 600 V repetitive peak reverse voltages Durchlastrom-Grenzeffektivwert t 10ms I 8080 A p FRMSM maximum RMS on-state current Dauergrenzstrom T = 113C I 5140 A C FAVM average on-state current T = 100C, = 180sin, t = 10ms I A Dauergrenzstrom C P FAVM 5820 average on-state current I A Durc hlastrom-Effektivwert FRMS 9130 RMS on-state current Dauergrenzstrom TC = 55C, = 180sin, tP = 10ms IFAVM 7790 A average on-state current I A Durchlastrom-Effektivwert FRMS 12230 RMS on-state current Stostrom-Grenzwert T = 25C, t = 10ms I 37400 A vj P FSM surge current T = T , t = 10ms 32300 A vj vj max P Thermische Eigenschaften Grenzlastintegral T = 25C, t = 10ms It 7000 As*10 vj P It-value T = T , t = 10ms 5200 As*10 vj vj max P Charakteristische Werte / Characteristic values Durchlaspannung T = T , i = 4500A v max. 0,96 V vj vj max F F on-state voltage Schleusenspannung High Level T = T V max. 0,74 V vj vj max (TO) threshold voltage I =4500A.17000A T Ersatzwiderstand High Level r max. 0,049 m T slope resistance Schleusenspannung Low Level T = T V max. 0,7 V vj vj max (TO) threshold voltage I =500A.4500A T Ersatzwiderstand Low Level r max. 0,058 m T slope resistance T = T A= 3,965E-01 Durchlakennlinie 500A i 17000A vj vj max F B= 3,120E-05 on-state characteristic C= 3,820E-02 D= 1,575E-03 v A B i C ln (i 1) D i F F F F Sperrstrom T = T , v = V i max. 50 mA vj vj max R RRM R reverse current Thermische Eigenschaften / Thermal properties Inne rer Wrmewiderstand Khlflche / cooling surface R thJC beidseitig / two-sided, = 180sin max. 9,6 K/kW thermal resistance, junction to case beidseitig / two-sided, DC max. 8,5 K/kW bergangs-Wrmewiderstand Khlflche / cooling surface RthCH max. 5 K/kW beidseitig / two-sided thermal resistance, case to heatsink Hchstzulssige Sperrschichttemperatur T 180 C vj max maximum junction temperature Betriebstemperatur T -40...+180 C c op operating temperature Lagertemperatur T -40...+180 C stg storage temperature prepared by: HR date of publication: 2020-12-01 approved by: MS revision: 3.1 Date of publication: 2020-12-01 Seite/page 2/9 Revision: 3.1
