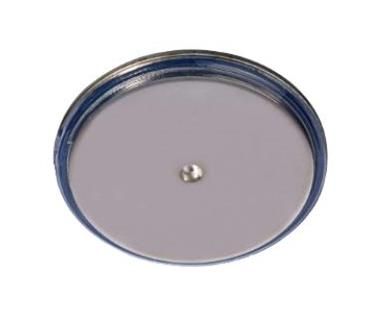

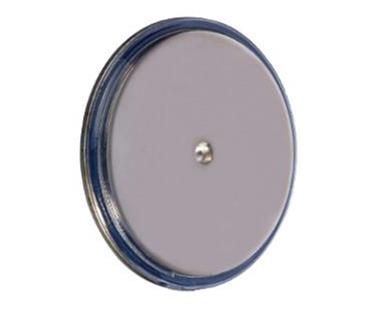

Technische Informationen / technical information Kenndaten Netz-Gleichrichterdiode 56DN06B02 Rectifier Diode Key Parameters V 400 V - 600 V RRM I 11140 A (T =90 C) FAVM C I 81000 A FSM 3570A (T =55C) C V 0,73 V T0 r 0,024 m T R 5,8 K/KW thJC Clamping Force 30 45 kN Max. Diameter 56 mm Cathode Diameter 50 mm Height 5 mm For type designation please refer to actual short form catalog Technische Informationen / technical information Netz-Gleichrichterdiode 56DN06B02 Rectifier Diode Elektrische Eigenschaften / Electrical properties Hchstzulssige Werte / Maximum rated values Periodische Spitzensperrspannung T = -40C... T V 400 V vj vj max RRM 600 V repetitive peak reverse voltages Durchlastrom-Grenzeffektivwert t 5ms IFRMSM 14760 A p maximum RMS on-state current Dauergrenzstrom T = 90C I 11140 A C FAVM average on-state current T = 100C, = 180sin, t = 10ms I A Dauergrenzstrom C P FAVM 10300 average on-state current I A Durc hlastrom-Effektivwert FRMS 16170 RMS on-state current T = 55C, = 180sin, t = 10ms I A Dauergrenzstrom C P FAVM 13890 average on-state current I A Durchlastrom-Effektivwert FRMS 21810 RMS on-state current Stostrom-Grenzwert T = 25C, t = 10ms I 81000 A vj P FSM surge current T = T , t = 10ms 70000 A vj vj max P Thermische Eigenschaften Grenzlastintegral T = 25C, t = 10ms It 32800 As*10 vj P It-value T = T , t = 10ms 24500 As*10 vj vj max P Charakteristische Werte / Characteristic values Durchlaspannung T = T , i = 8000A v max. 0,94 V vj vj max F F on-state voltage Schleusenspannung High Level T = T V max. 0,73 V vj vj max (TO) threshold voltage I =8000A.37000A T Ersatzwiderstand High Level r max. 0,024 m T slope resistance Schleusenspannung Low Level T = T V max. 0,66 V vj vj max (TO) threshold voltage I =1000A.8000A T Ersatzwiderstand Low Level r max. 0,035 m T slope resistance T = T A= 8,837E-02 Durchlakennlinie 2100A i 37000A vj vj max F B= 2,585E-05 on-state characteristic C= 8,432E-02 D= -1,287E-03 v A B i C ln (i 1) D i F F F F Sperrstrom T = T , v = V i max. 60 mA vj vj max R RRM R reverse current Thermische Eigenschaften / Thermal properties Innerer Wrmewiderstand Khlflche / cooling surface R thJC beidseitig / two-sided, = 180sin max. 5,8 K/kW thermal resistance, junction to case beidseitig / two-sided, DC max. 5,2 K/kW bergangs-Wrmewiderstand Khlflche / cooling surface R thCH max. 2,5 K/kW thermal resistance, case to heatsink beidseitig / two-sided Hchstzulssige Sperrschichttemperatur T 180 C vj max maximum junction temperature Betriebstemperatur T -40...+180 C c op operating temperature Lagertemperatur T -40...+180 C stg storage temperature prepared by: HS date of publication: 2020-08-21 approved by: MS revision: 3.1 Date of publication: 2020-08-21 Seite/page 2/9 Revision: 3.1
