BTF60702ERVXUMA1 Infineon

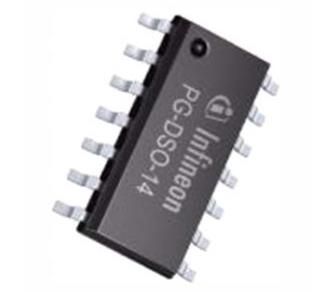

R OL R R PD PD RGND R R IS IS PROFET+ 24V BTF6070-2ERV Smart High-Side Power Switch Dual Channel, 60 m Package PG-TDSO-14 Marking 6070-2ERV 1 Overview Application Suitable for 12 V and 24 V Trucks and Transportation Systems Specially designed to drive Valve Applications Can be used for PWM frequencies up to 1.5 kHz Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits V BAT Voltage Regulator T 1 OUT VS GND D Z C VDD C VS VS VDD GPIO R DEN DEN GPIO R IN0 IN OUT0 GPIO R IN1 IN C OUT Valve ADC IN IS0 R SENSE Micro- C SENSE controller OUT1 COUT R IS1 ADC IN SENSE GND Bulb C GND SENSE D Page-1.emf Application Diagram with BTF6070-2ERV Datasheet 1 Rev. 1.00 www.infineon.com 2019-04-25 PROFET+ 24V BTF6070-2ERV Overview Basic Features Dual channel device Fast switching device For 12 V and 24 V grounded loads Very low stand-by current 3.3 V and 5 V compatible logic inputs Electrostatic discharge protection (ESD) Optimized electromagnetic compatibility Logic ground independent from load ground Very low power DMOS leakage current in OFF state Green product (RoHS compliant) AEC qualified Description The BTF6070-2ERV is a 60 m dual channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by a N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 HV technology. It is specially designed to drive Valve Applications in the harsh automotive environment. For lighting applications the nominal bulb load of P10W+P5W 24 V or P10W 12 V is considered. Table1 Product Summary Parameter Symbol Value Operating voltage range V 5 V ... 36 V S(OP) Maximum supply voltage V 65 V S(LD) Maximum ON state resistance at T = 150C per channel R 135 m J DS(ON) Nominal load current (one channel active) I 3A L(NOM)1 Nominal load current (all channels active) I 2.3 A L(NOM)2 Typical current sense ratio k 1730 ILIS Minimum current limitation I 9A L5(SC) Maximum standby current with load at T = 25C I 500 nA J S(OFF) Diagnostic Functions Proportional load current sense for the 2 channels Open load detection in ON and OFF Short circuit to battery and ground indication Overtemperature switch off detection Stable diagnostic signal during short circuit Enhanced k dependency with temperature and load current ILIS Protection Functions Stable behavior during undervoltage Reverse polarity protection with external components Secure load turn-off during logic ground disconnection with external components Datasheet 2 Rev. 1.00 2019-04-25
