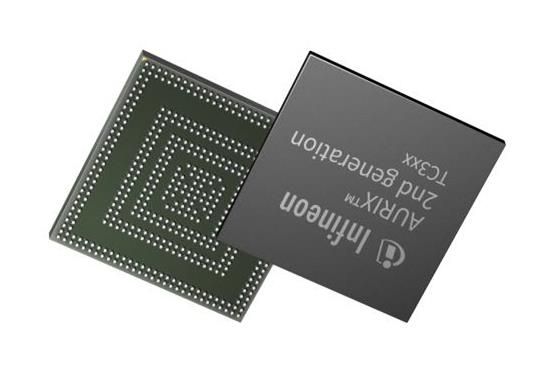

Newsletter Contact Where to Buy English myInfineon Cart Search Products Applications Tools About Infineon Discoveries Careers 4.99 - Standard Global Shipping Home Products 32-bit Microcontroller (MCU) 32-bit AURIX Microcontroller based on TriCore 32-bit TriCore AURIX TC3xx AURIX Family TC36xDP SAK-TC365DP-64F300W AA SAK-TC365DP-64F300W AA HiQPdf Free Limited Version 01/02/2020 Description: Overview Parametrics SAK-TC365DP-64F300W AA belongs to the AURIX TC36xDP family. AURIX second generation (TC3xx) comes back with an increase in performance, memory sizes, connectivity and more scalability to address the Documents new automotive and industrial trends and challenges. In terms of performance, T36xDP offers 2 cores running at 300 MHz and up to 672 KBytes embedded RAM, 4MB of flash and consuming below 2W. Order Boards Key features: Tools & Software Training 2 TriCore running at 300 MHz Support Supporting floating point and fix point with all cores 4 MB flash/ECC protection 672 KB SRAM / ECC protection 64x DMA channels Redundant and diverse timer modules (GTM, CCU6 , GPT12) 1x Gbit Ethernet 1x FlexRay, 8x CAN FD, 12xASCLIN, 4xQSPI, 1xIS emulation, 1xIC, 10xSENT, 2xPSI5, 1x PSI5S eVita full HSM (ECC256 and SHA2) LQFP-176 package ISO 26262 ASIL-D support AUTOSAR 4.2 support Single voltage supply 5 V or 3.3 V Standby mode controller Temperature : -40C to 125C System benefits: Best-in-class performance enabling ASIL-D designs Upward and downward scalable to the rest of AURIX TC3xx family A/B swap software update over the air support Easy migration from AURIX TC2xx thanks to high software and hardware compatibility Applications: Industrial applications: Safety applications: Industrial robots Air bag System Solar panels Chassis domain control Wind turbine inverters Braking IO controller Pixel lighting Servo drives (advised for this product ) Scable EPS solution Elevators Full feature sensor fusion Inverters Multi-purpose camera Active suspension control system Automotive 24 GHz radar system Highly integrated automotive 77 GHz radar chipset Sensor fusions Connectivity Applications: Transportation applications: Wireless Charging Solution (advised for this product ) Commercial and Agricultural Vehicles (CAV) Advanced gateway architecture CAV 24 GHz radar Telematic Control unit and V2X Commercial and Agricultural Vehicles (CAV) High-feature Body Domain Control unit Drones/Multicopters Powertrain applications: (H)EV applications: Transfercase (H)EV battery management system Gasoline multi-port injection discrete solution EV charging station Gasoline direct injection (H)EV main inverter Driving Domain Controller (DDC) DC-DC Converter Automatic transmission hydraulic control Double-clutch transmission hydraulic control Double-clutch transmission electrical control 48V micro-hybrid Interactive Diagram pass over the diagram with the cursor to learn more about the features Single voltage 5V/3.3 V EVR, Ambient temperature range supply 5 V or 3.3 V 8-bit SCR -40...+125C TriCore 300 MHz Safe DMA AUTOSAR ISO26262 ASIL-D DSP functionality channels 64 4.2 support IEC61508 SIL3 EVITA Full HSM I/O 3.3 V CMOS Packages (ECC256 and SHA2) 5V input on ADC pins T/LQFP 144/LQFP 176LFBGA 292 /BGA 180 TIMER/PWM 1x STM GTM 1x GPT12 2x CCU6 Communication 8x CAN FD 2xPSI5 1xIC 4xQSPI 1xFlexRay 10xSENT 1xHSSL 1xIS 12xASCLIN 1x Gbit Ethernet Memory Analog/ADC Up to 672 KB RAM Up to 4 MB flash 1x HSPDM (DAC) Up to 70x ADC ECC protection ECC protection Parametrics Parametrics SAK-TC365DP-64F300W AA of cores / lockstep cores 2/2 ASIL/SIL support ASIL-D/ SIL-3 CAN Nodes 8 Clock Frequency 300.0 MHz DMA Channels 64 DSP Functionality yes FlexRayTM 2 Floating Point Unit yes LIN 4.0 On-chip Clock Generation yes On-chip Voltage Regulator yes Oscillator Watchdog yes Program Memory 4.0 MByte Real Time Clock yes SPI 4.0 SRAM (incl. Cache) 672.0 kByte Temperature -40C to 125C Type of Memory Flash Watchdog Timer yes eMMC no Documents + Expand all + Application Notes Product Brochure + + Application Brochure Product Selection Guide + + Presentations Order Sales Product Name SAK-TC365DP-64F300W AA OPN TC365DP64F300WAAKXUMA1 Product Status active and preferred Package name PG-LQFP-176 Order online Completely lead free yes Halogen free yes RoHS compliant yes Packing Size 500 Packing Type TAPE & REEL Moisture Level 3 Moisture Packing DRY Boards PCB Design Data + Tools & Software TriCore Development Tools + AURIX Development Studio Free TriCore Tools + + Simulation / Modelling Software Automation / Autocode Generation + + Operating Systems / Middleware Compiler Tool Chains + + Timing & Program Analysis Debugger, Test and Verification Systems + + Flash Programmers + Calibration / Data Measurement / Rapid Prototyping Access to MCAL Driver + + Embedded Software Embedded Software Solutions Infineon software overview + + AURIX - AUTOSAR MCAL driver Infineon AUTOSAR MCAL drivers MC-ISAR TC2xx product overview + + Infineon AUTOSAR MCAL drivers MC-ISAR TC3xx product overview Software + Infineon AUTOSAR MCAL drivers MC-ISAR AURIX TC2xx/TC3xx product overview Application layer AUTOSAR Run-Time Environment System services services Memory servicesCrypto Communication services On board On-Board device abstraction Memory abstraction Crypto Communication abstraction I/O hardware abstraction Complex device driver abstractiondevice abstraction FEE CanTrcv Crypto SPI MCU WDG GPT FLS LIN CAN PORT DIO ICU PWM ADC DMA MSC loaderFLS UART STM ... MCAL MCAL complex driver Microcontroller only for AURIX -TC3xx Enabled via partners Infineon MC-ISAR drivers (MicroController Infineon Software ARchitecture MC-ISAR M icro ontroller nfineon oftware chitecture C I S AR MC-ISAR COM Basic : MCU, Port, DIO, ICU, GPT, PWM, SPI, ADC, WDG, FLS, FEE, Can, CanTrcv, LIN, CRC, OCU MC-ISAR COM Enhanced : FlexRay (not for TC23x, TC22x, TC21x), Ethernet (not for TC23x, TC22x, TC21x) MC-ISAR CD Complex Driver : DMA, FLSloader, UART, ,DS-ADC SMU MC-ISAR Demo CD : HSSL (not for TC23x, TC22x, TC21x), SENT, IC (not for TC23x, TC22x, TC21x), IOM, STM, , DS-AC (not for TC23x, TC22x, TC21x)IRQ Compiler TC2xx : TASKING 4.2r2 Windriver Diab 5.9.2.0+p Hightec GNU 4.6.3.0Download Download Download Download Download Download Compiler TC3xx : TASKING 6.2r2 * Windriver Diab 5.9.6.4 Hightec GNU 4.9.2.0 Training Online Trainings / eLearning + + Expert classroom trainings for Infineon Microcontrollers Quick Trainings + + Expert Trainings Support Search the FAQs Enter your search terms... Technical Support Tire Pressure Monitoring Product Radar chips 24GHz, 60GHz and 77GHz In order to enable us to process your If your inquiry concerns SP27/37 inquiry as efficiently as possible and products, please send us your request In order to enable us to process your ensure your case is duly reported, we via the online support form at: inquiry as efficiently as possible and kindly ask you to submit your request X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for 32-bit Microcontrollers - MCU category: Click to view products by Infineon manufacturer: Other Similar products are found below : MB91F575BHSPMC-GSE1 MB91F594BSPMC-GSE1 PIC32MX120F032B-50I/ML MB91F464AAPMC-GSE2 MB91F577BHSPMC-GSE1 MB91F579CHSPMC1-GSE1 MB91F528USCPMC-GSE2 MB91F248PFV-GE1 MB91F594BPMC-GSE1 MB91243PFV-GS-136E1 MB91F577BHSPMC1-GSE1 PIC32MM0032GPL020-E/ML PIC32MM0016GPL028-E/SS PIC32MM0016GPL028-E/ML PIC32MM0032GPL028-E/ML PIC32MM0032GPL028-E/M6 MB91F526KSEPMC-GSE1 TLE9872QTW40XUMA1 FT902L-T R5F564MLCDFB 31 R5F564MLCDFC 31 R5F523E5ADFL 30 R5F524TAADFF 31 MCF51AC256ACPUE PIC32MX150F128D-I/ML PIC32MX230F064D-I/PT PIC32MM0064GPL028-I/ML PIC32MM0064GPL028-I/SP PIC32MM0064GPL028-I/SO PIC32MX120F032D- I/TL PIC32MX130F064D-I/ML PIC32MZ2064DAB169-I/HF PIC32MZ2064DAB288-I/4J ATUC256L4U-AUT R5F56318CDBG U0 PIC32MX150F128C-I/TL PIC32MX130F064C-ITL PIC32MX230F064D-IML PIC32MX154F128D-I/PT PIC32MX154F128B-V/SO AT32UC3L0128-AUT PIC32MX254F128B-I/SO PIC32MX230F128H-I/MR PIC32MX150F256H-I/MR PIC32MX150F128D-50I/TL PIC32MZ1064DAB288-I/4J PIC32MZ1064DAB169-I/HF ATUC64D4-Z1UT AT32UC3A3128S-CTUT ATUC128L3U-Z3UT
