TLD2311EL Infineon

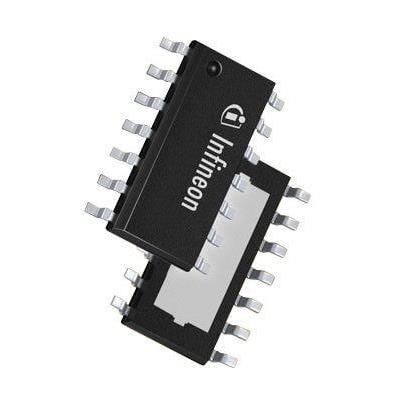

LITIX Basic TLD2311EL 3 Channel High-Side Current Source Package PG-SSOP-14 Marking TLD2311 1 Overview Applications Exterior LED lighting applications such as tail/brake light, turn indicator, position light, side marker,... Interior LED lighting applications such as ambient lighting (e.g. RGB), interior illumination and dash board lighting. VBATT GND ISO-Pulse EN protection circuit Internal depending on supply OUT3 requirements Thermal Output protection control OUT2 IN SET3 IN SET2 Current OUT1 adjustment IN SET1 Status TLD2311EL to other LITIX Basic * In case PWM via VS is performed ** For EMI improvement if required Application Diagram with TLD2311EL Data Sheet Rev. 1.2 www.infineon.com 2018-04-26 C =2.2F mod R SET3 10k R SET2 R SET1 CVS=4.7nF VS 470k * ST C =100pF** ST GND 4.7nF** 4.7nF** 4.7nF** LITIX Basic TLD2311EL Overview Basic Features 3 Channel device with integrated output stages (current sources), optimized to drive LEDs with output current up to 120 mA per channel Low current consumption in sleep mode PWM-operation supported via VS- and EN-pin Output current adjustable via external low power resistor and possibility to connect PTC resistor for LED protection during over temperature conditions Reverse polarity protection and overload protection Undervoltage detection Open load and short circuit to GND diagnosis Wide temperature range: -40C < T < 150C j PG-SSOP-14 package with exposed heatslug Description The LITIX Basic TLD2311EL is a three channel high side driver IC with integrated output stages. It is designed to control LEDs with a current up to 120 mA. In typical automotive applications the device is capable to drive i.e. 3 red LEDs per chain (total 9 LEDs) with a current up to 60 mA, which is limited by thermal cooling aspects. The output current is controlled practically independent of load and supply voltage changes. Table1 Product Summary Parameter Symbol Value Operating voltage range V 5.5 V ... 40 V S(nom) Maximum voltage V 40 V S(max) V OUTx(max) Nominal output (load) current I 60 mA when using a supply voltage range of 8 V - 18 V (e.g. OUTx(nom) Automotive car battery). Currents up to I possible in OUT(max) applications with low thermal resistance R thJA Maximum output (load) current I 120 mA depending on thermal resistance R OUTx(max) thJA 750 7% Output current accuracy at R = 12 k k SETx LT Current consumption in sleep mode I 0.1 A S(sleep,typ) Protective Functions ESD protection Under voltage lock out Over Load protection Over Temperature protection Reverse Polarity protection Diagnostic Functions OL detection SC to Vs (indicated by OL diagnosis) SC to GND detection Data Sheet 2 Rev. 1.2 2018-04-26
