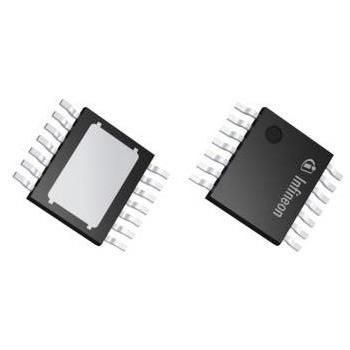

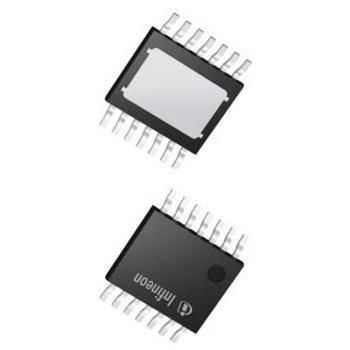

TLF11251EPXUMA1 Infineon

OPTIREG PMIC TLF11251EP 2.5 A half bridge with integrated driver and level shifter Features AEC-Q100 Grade 0 for high temperature mission profiles Integrated PMOS and NMOS complementary output bridge with 2.5 A current capability Integrated gate drivers Single control input with an integrated dead time logic for optimized control and high efficienc y Output current sensing Output current limitation Overtemperature protection Low quiescent current No external dead time adjustment required Infineon automotive quality Green Product (RoHS compliant) Potential applications Companion for the OPTIREG PMIC TLF3558xxxx for core voltage regulation of AURIX TC3xx microcontroller in: Car powertrain and transmission applications Electric power steering Battery management Inverter applications Engine management Domain control Product validation Qualified for automotive applications with higher temperature requirements. Product validation according to AEC-Q100. Description The OPTIREG PMIC TLF11251EP is a 2.5 A half bridge with integrated driver and level shifter . It also contains a high side P-channel MOSFET and a low side N-channel MOSFET in a single package. The integrated level shifting stage allows for conversion of the input logic signals to the supply voltage level of the gate drivers. The input signal levels are CMOS compatible. The level shifter and the gate driver provide a dead time generation to simplify the interface with the embedded core voltage regulator of the AURIX TC3xx microcontroller. The Datasheet Please read the Important Notice and Warnings at the end of this document Rev. 1.02 www.infineon.com/OPTIREG-PMIC 2021-02-05 OPTIREG PMIC TLF11251EP 2.5 A half bridge with integrated driver and level shifter Description low propagation delay allows for use in closed loop control applications with limited requirements for timing. The output stage allows for a high switching frequency. The TLF11251EP integrates protection features against overcurrent at the high side MOSFET and at the low side MOSFET as well as against overtemperature events. Internal power-on reset releases the digital logic and ensures its operation for the supply voltage within the specified range. Type Package Marking TLF11251EP PG-TSDSO-14 TLF11251 Datasheet 2 Rev. 1.02 2021-02-05
