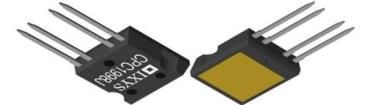

CPC1998J AC Power Switch INTEGRATED CIRCUITS DIVISION Characteristics Description CPC1998J is an AC Solid State Switch utilizing dual Parameter Rating Units power SCR outputs. This device also includes V AC Operating Voltage 20-240 rms zero-cross turn-on circuitry and is specified with an 800V blocking voltage. Load Current P With 5C/W Heat Sink 20 A rms Tightly controlled zero-cross circuitry ensures low No Heat Sink 5 noise switching of AC loads by minimizing the V (at I =2A ) On-State Voltage Drop 1.1 P L P generation of transients. The optically coupled input and output circuits provide exceptional noise immunity V Blocking Voltage 800 P and 2500V of isolation between the control and the rms Thermal Impedance, 0.35 C/W output. As a result, the CPC1998J is well suited for Junction-to-Case, JC industrial environments where electromagnetic interference would disrupt the operation of plant facility Features communications and control systems. Load Current up to 20A with 5C/W Heat Sink rms The unique i4-PAC package pioneered by IXYS allows 800V Blocking Voltage P Solid State Relays to achieve the highest load current 5mA Control Current and power ratings. This package features a unique Zero-Cross Switching IXYS process in which the silicon chips are soft Isolated, Low Thermal Impedance Ceramic Pad for soldered onto the Direct Copper Bond (DCB) Heat Sink Applications substrate instead of the traditional copper leadframe. 2500V Isolation, Input to Output rms The DCB ceramic, the same substrate used in high DC Control, AC Output power modules, not only provides 2500V isolation rms Optically Isolated but also very low junction-to-case thermal impedance Low EMI and RFI Generation (0.35 C/W). High Noise Immunity Flammability Rating UL 94 V-0 Ordering Information Applications Programmable Control Part Descript io n Process Control CPC1998J i4-PAC Package (25 per tube) Power Control Panels Remote Switching Pin Configuration Gas Pump Electronics Contactors Large Relays Solenoids Motors ZC Heaters Approvals UL 508 Recognized Component: File E69938 1 3 4 2 AC Load + LED LED e3 DS-CPC1998J-R07 www.ixysic.com 1CPC1998J INTEGRATED CIRCUITS DIVISION 1 Specifications 1.1 Absolute Maximum Ratings 25C Symbol Min Max Units Absolute maximum ratings are stress ratings. Stresses in Blocking Voltage - 800 V excess of these ratings can cause permanent damage to P the device. Functional operation of the device at conditions Reverse Input Voltage - 5 V beyond those indicated in the operational sections of this Input Control Current - 50 mA data sheet is not implied. Peak (10ms) - 1 A 1 -150 Input Power Dissipation mW Typical values are characteristic of the device at +25C, 2 -3.5 Total Power Dissipation W and are the result of engineering evaluations. They are 2 I t for Fusing provided for information purposes only, and are not part of 2 -200 A s (1/2 Sine Wave, 60Hz) the manufacturing testing requirements. Isolation Voltage, Input to Output - 2500 V rms ESD, Human Body Model - 8 kV Operational Temperature - 40 +85 C Storage Temperature - 40 +125 C 1 Derate linearly 1.33mW / C. 2 Free air, no heat sink. 1.2 Electrical Characteristics 25C Parameter Conditions Symbol Minimum Typical Maximum Units Output Characteristics Load Current No Heat Sink, V =20-240V Continuous 0.1 - 5 L rms I A L rms T =25C Continuous C 0.1 - 50 Maximum Surge Current 1/2 Sine Wave, 60Hz I -- 150 A P Off-State Leakage Current V =800V I A L -- 100 LEAK P 1 I =2A V On-State Voltage Drop L P -0.85 1.1 - P I =0mA Off-State dV/dt F dV/dt 1000 - - V/s Switching Speeds Turn-On t -- 0.5 on I =5mA cycles F Turn-Off t -- 0.5 off 2 st Zero-Cross Turn-On Voltage 1 half-cycle - -5 20 V subsequent half-cycle -- - 5 Holding Current - I -44 50 mA H Latching Current - I -48 75 mA L - Operating Frequency -20 - 500 Hz 3 f=60Hz Load Power Factor for Guaranteed Turn-On PF 0.25 - - - Input Characteristics 4 I =1A Resistive, f=60Hz I Input Control Current to Activate L -- 5 mA F Input Dropout Voltage - -0.8 - - V I =5mA Input Voltage Drop V F 0.9 1.2 1.5 V F V =5V Reverse Input Current I R -- 10 A R Input/Output Characteristics V =0V, f=1MHz Capacitance, Input-to-Output C IO IO -- 3 pF 1 Tested at a peak value equivalent. 2 Zero-cross first half-cycle < 100Hz. 3 Snubber circuits may be required at low power factors. 4 For high-noise environments, or high-frequency operation (>60Hz), or for applications with a high inductive load, a minimum LED drive current of 10mA is recommended. R07 www.ixysic.com 2
