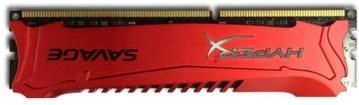

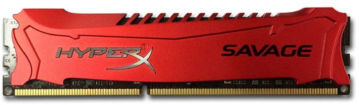

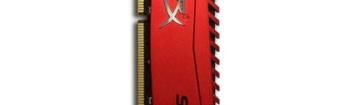

HX316C9SR/8 8GB (8GB 1G x 64-Bit) DDR3-1600 CL9 240-Pin DIMM SPECIFICATIONS CL(IDD) 11 cycles Row Cycle Time (tRCmin) 48.125ns(min.) 260ns(min.) Refresh to Active/Refresh Command Time (tRFCmin) Row Active Time (tRASmin) 35ns(min.) Maximum Operating Power TBD W* UL Rating 94 V - 0 o o Operating Temperature 0 C to +85 C o o Storage Temperature -55 C to +100 C *Power will vary depending on the SDRAM used. DESCRIPTION FEATURES HyperX HX316C9SR/8 is a 1G x 64-bit (8GB) DDR3-1600 CL9 JEDEC standard 1.5V (1.425V ~ 1.575V) Power Supply SDRAM (Synchronous DRAM) 2Rx8, memory module, based VDDQ = 1.5V (1.425V ~ 1.575V) on sixteen 512M x 8-bit FBGA components per module. Each module supports Intel XMP (Extreme Memory Profiles). 800MHz fCK for 1600Mb/sec/pin Each module has been tested to run at DDR3-1600 at a low 8 independent internal banks latency timing of 9-9-9 at 1.5V. The SPDs are programmed to JEDEC standard latency DDR3-1600 timing of Programmable CAS latency: 11, 10, 9, 8, 7, 6 11-11-11 at 1.5V. Each 240-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical Programmable Additive Latency: 0, CL - 2, or CL - 1 clock specifications are as follows: 8-bit pre-fetch Burst Length: 8 (interleave without any limit, sequential with starting address 000 only), 4 with tCCD = 4 which does not XMP TIMING PARAMETERS allow seamless read or write (either on the fly using A12 or MRS) JEDEC: DDR3-1600 CL11-11-11 1.5V XMP Profile 1: DDR3-1600 CL9-9-9 1.5V Bi-directional Differential Data Strobe Internal (self) calibration: Internal self calibration through ZQ pin (RZQ: 240 ohm 1%) On Die Termination using ODT pin Average Refresh Period 7.8us at lower than TCASE 85C, 3.9us at 85C < TCASE < 95C Asynchronous Reset Height 1.311 (33.30mm), w/heatsink, double sided component Continued >> kingston.com/hyperx Document No. 4807122-001.B00 04/22/15 Page 1continued HyperX MODULE WITH HEAT SPREADER 7.9 mm 133.35 mm MODULE DIMENSIONS FOR MORE INFORMATION, GO TO WWW.KINGSTON.COM/HYPERX All Kingston products are tested to meet our published specifications. Some motherboards or system configurations may not operate at the published HyperX memory speeds and timing settings. Kingston does not recommend that any user attempt to run their computers faster than the published speed. Overclocking or modifying your system timing may result in damage to computer components. kingston.com/hyperx Document No. 4807122-001.B00 Page 2 33.3 mm
