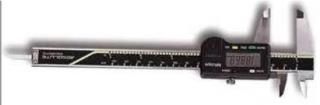

T E E C T H U O-03 (2003) full size 12/8/03 9:52 PM Page 1 CALIPERS Digimatic Calipers with Absolute Encoders Series 500 Featuring Position Memory and 3.5 Year Battery Life 500-171 Optional Accessories SPC Connecting Cables Add-on No.959149(1m), No.959150(2m) HOLD Hold Switch IN/MM ORGIN No.959143 Features built-in HOLD OFF ON/ZERO Data Switch MITUTOYOs new Absolute position). Once set, the Absolute mode and display of the true Encoder Digimatic Caliper offers Encoder caliper will switch on position from the origin point. special functions which allow it to showing its true position from the Also provided is inch/mm conver- always remember its measuring origin point rather than 0.0000 as sion and SPC data output. Another position even after the gage has with standard models. outstanding feature of the Absolute been switched off. Zero/ABS: Allows the display to Encoder Digimatic Caliper is 3.5 Origin: Allows setting of an origin be Zero-Set at any point along the years of use under normal working starting point to be used as refer- slider for incremental comparison conditions from just a single SR44 ence in subsequent measure- measurements. This switch will battery cell. (541980) ments (generally set to closed jaw also allow return to the absolute Specifications Digimatic Calipers with Absolute Encoder Metric (SPC output models) LCD Order No. Range Resolution Accuracy Remarks 500-150 0100mm 0.01mm 0.02mm 1.9mm Round Depth Bar. 500-151 0150mm 0.01mm 0.02mm 500-152 0200mm 0.01mm 0.02mm 500-153 0-300mm 0.01mm 0.03mm 500-500-10 0450mm 0.01mm 0.05mm without Depth Bar, Absolute Function Type 500-501-10 0600mm 0.01mm 0.05mm without Depth Bar, Absolute Function Type For SPC output order Connecting Cable 959149 (1m) or 959150 (2m). Replacement Battery: 541980 (1pc), 541980-10 (10 pcs/SET) O-3 L N O O S L O B G A Y DATAO-04 (2003) full size 12/8/03 9:53 PM Page 1 CALIPERS L D C B G F ABSOLUTE E A Battery Cover Dimensions Order No. A B C D E F G L 500-170, 500-195 1.57 .83 .65 2.26 1.42 .63 .138 7.09 500-171, 500-196, 1.57 .83 .65 2.26 1.42 .63 .138 9.10 500-159, 500-160, 500-175, 500-178, 500-174 500-172, 500-197, 1.97 .96 .79 2.26 1.42 .63 .138 11.34 500-163, 500-164, 500-176, 500-177 500-173, 500-193, 2.52 1.08 .86 2.80 1.60 .79 .15 15.87 500-165, 500-166, 500-167, 500-168 500-505-10 3.54 1.85 1.50 3.61 2.44 .98 .24 24.80 500-506-10 3.54 1.85 1.50 3.61 2.44 .98 .24 30.70 500-507-10 5.11 2.36 1.65 4.49 2.87 1.26 .31 48.82 500-150 1.57 .83 .65 2.26 1.42 .63 .138 7.09 500-151 1.57 .83 .65 2.26 1.42 .63 .138 9.10 500-152 1.97 .96 .79 2.26 1.42 .63 .138 11.34 500-153 2.52 1.08 .86 2.80 1.60 .79 .15 15.87 500-500-10 3.54 1.85 1.50 3.61 2.44 .98 .24 24.80 500-501-10 3.54 1.85 1.50 3.61 2.44 .98 .24 30.70 Digimatic Caliper with Absolute Encoder Inch/Metric (SPC output Models) LCD Order No. Range Resolution Accuracy Remarks 500-170 0-4 .0005 0100mm 0.01mm .001 .075 Round Depth Bar. 500-171 0-6 .0005 0150mm 0.01mm .001 500-174 06 .0005 .001 0150mm 0.01mm with OD Carbide Jaw, Absolute Function Type 500-175 06 .0005 .001 0150mm 0.01mm with OD, ID Carbide Jaw, Absolute Function Type 500-178 06 .0005 .001 0150mm 0.01mm .075 Round Depth Bar, Absolute Function Type 500-172 0-8 .0005 0200mm 0.01mm .001 500-176 08 .0005 .001 0200mm 0.01mm with OD Carbide Jaw, Absolute Function Type 500-177 08 .0005 .001 0200mm 0.01mm with OD, ID Carbide Jaw, Absolute Function Type 500-167 012 .0005 .0015 0300mm 0.01mm with OD Carbide Jaw 500-168 012 .0005 .0015 0300mm 0.01mm with OD, ID Carbide Jaw 500-173 0-12 .0005 0300mm 0.01mm .0015 500-505-10 018 .0005 .002 0450mm 0.01mm without Depth Bar, Absolute Function Type 500-506-10 024 .0005 .002 0600mm 0.01mm without Depth Bar, Absolute Function Type 500-507-10 040 .0005 .003 01,000mm 0.01mm without Depth Bar, Absolute Function Type For SPC output order Connecting Cable 959149 (1m) or 959150 (2m). Replacement Battery: 541980 (1pc), 541980-10 (10 pcs/SET) O-4
