2R6006A20A120 Molex

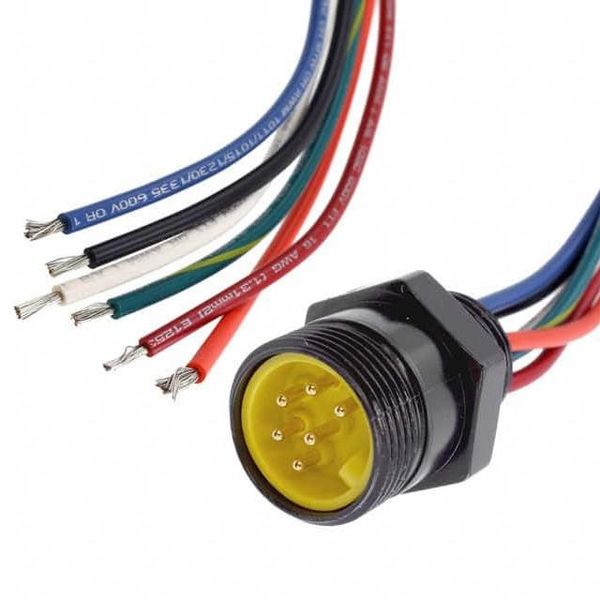

This document was generated on 07/16/2020 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION Part Number: 1300140025 Status: Active Overview: Brad Mini-Change Connectors Description: Mini-Change B-Size Receptacle, 6 Poles, 1/2 - 14 NPT Threads, (Straight) to 16 AWG Leads, Male 0.305m (1.0 ) Length Documents: Drawing (PDF) RoHS Certificate of Compliance (PDF) Agency Certification Series image - Reference only CSA LR6837 UL E152210 EU ELV General Not Relevant Product Family Industrial Receptacles Series 130014 EU RoHS China RoHS Comments B-Size (1 - 16 UN-2A) Compliant with IP Rating IP67 Exemption 6(c) NEMA Rating NEMA 6 REACH SVHC Overview Brad Mini-Change Connectors Contained Per - Product Name Mini-Change D(2020)4578-DC (25 Type Single Ended (pigtail) June 2020) UPC 78678838811 Lead Halogen-Free Physical Status Coupling Type External Thread Not Low-Halogen Gender Male For more information, please visit Contact US Keyway Single Length 0.305m China ROHS 50 Image Material - Component Zinc Die-Cast with Black Epoxy ELV Not Relevant Mounting Thread Size 1/2 - 14 NPT RoHS Phthalates Not Contained Net Weight 165.120/g Orientation Straight Panel Mount N/A Search Parts in this Series Poles 6 130014 Series Temperature Range - Operating -20C to +105C Wire Size AWG 16 Wire/Cable Type N/A Electrical Current - Maximum per Contact 8.0A Voltage - Maximum 600V AC/DC Material Info Engineering Number 2R6006A20A120 Reference - Drawing Numbers Sales Drawing SD-130014-001, SD-130014-010-001 This document was generated on 07/16/2020 PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATIONX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for DC Power Cords category: Click to view products by Molex manufacturer: Other Similar products are found below : H-IN-1 H-IN-12 1300000052 H-OU-32 H-OU-34 H-OU-7 H-OU-8 H-OU-9 H-PA-7 H-RC-2 H-SN-16 H-SN-21 172-4000 172-4101 172-7443-E 2J-1865A H-IN-13 H-IN-14 H-IN-4 H-IN-8 426055400-3 MN47A4BC01M010 H-OU-11 H-OU-12 H-OU-13 H-OU-14 H- OU-19 H-OU-2 H-OU-23 H-OU-24 H-OU-31 H-PA-5 H-PA-8 H-RC-1 H-SN-14 H-SN-22 32102-021500-200-RS 420680840-3 426451500-3 H-SN-18 H-OU-21 H-OU-10 1-832692-4 FJ-VSP 3M 1300000086 1300140079 96CB-POWER-B-1.8M2 520-092-R 426040200 H-OU-28
