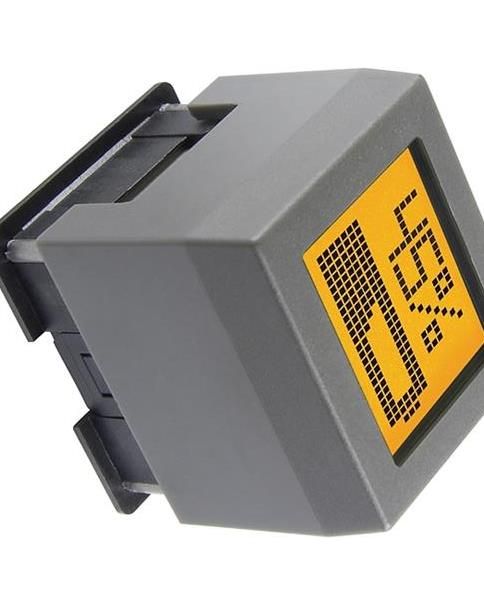

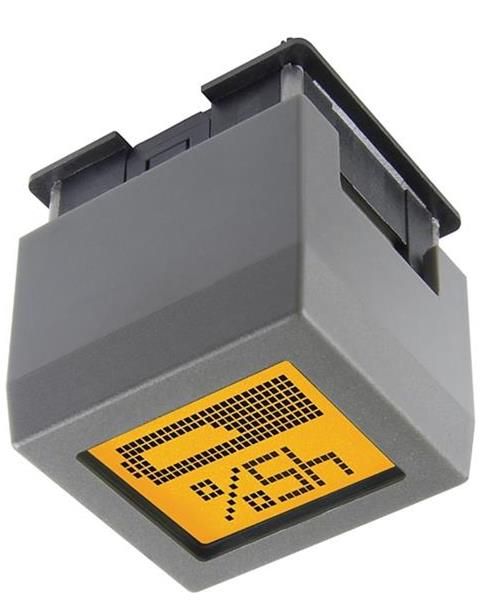

IS15DBFP4RGB Version (1) DISTINCTIVE CHARACTERISTICS High resolution of 64 x 32 pixels 64 colors of backlighting can be controlled dynamically Pushbutton switch with LCD, RGB LED backlighting General brightness of backlight is dynamically controlled in eight steps from dark to bright Operated by commands and data supplied via serial communications (SPI) Can display as many as four lines of text with ten characters each Incorporates bitmap display function Programmable display graphics for alphanumeric characters and animated sequences Dual image VRAM for quick change of displayed images Distinct, long travel of 4.5mm (same as KP01 Series) Low energy consumption Dust tight construction Viewing area: 15.0mm x 10.8mm (horizontal x vertical) High reliability and long life of three million actuations minimum Epoxy sealed straight PC terminals Snap-in standoff for easy, secure mounting and alignment Actual Size www.nkksmartswitch.com Toll Free 1.877.2BUYNKK Tel 480.991.0942 Fax 480.998.1435 Email: smartswitch nkkswitches.com TM SMARTSWITCH SWITCH DESCRIPTION Switch Description LCD Mode LED Color LCD/LED SPST Momentary ON Black & White Red/Green/Blue Gold Contacts FSTN Positive Straight PC Terminals SWITCH SPECIFICATIONS Circuit SPST normally open Electrical Capacity (Resistive Load) 100mA 12V DC Contact Resistance 200 milliohms maximum 20mV 10mA Insulation Resistance 100 megohms minimum 100V DC Dielectric Strength 125V AC for 1 minute minimum Mechanical Endurance 3,000,000 operations minimum Electrical Endurance 3,000,000 operations minimum Operating Force 2.0 0.5 Newtons Total Travel 4.5mm (.177) LCD SPECIFICATIONS Characteristics of Display Display Operation Mode FSTN positive background colors, black & white Display Condition Transflective with built-in LED backlight Viewing Angle Direction 6 oclock Viewing Area 15.0mm x 10.8mm (horizontal x vertical) Pixel Format 64 x 32 pixels (horizontal x vertical) Pixel Size 0.20mm x 0.27mm (horizontal x vertical) *Operating Temperature Range 15C ~ +50C (+5F ~ +122F) Storage Temperature Range 20C ~ +60C (4F ~ +140F) Backlight LED RGB: red/green/blue * In a low temperature environment (below 0C), speed and contrast decrease when image changes. The non-indicator dot may become dense in a high temperature environment (about +50C). Absolute Maximum Ratings Recommended Operating Conditions Items Symbols Ratings Items Symbols Minimum Typical Maximum Supply Voltage V 0.3V to +7.0V Supply Voltage V 4.9V 5.0V 5.1V DD DD Input Voltage V 0.3V to V +0.3V Input Voltage V 0V V I DD I DD Output Voltage V 0.3V to V +0.3V SPI Clock Frequency f 8MHz O DD SCK Current Consumption I ** 10mA *** 50mA DD Optical Characteristics (Temperature at 25C) ** 10mA: Backlighting LED is off Items Symbols Min Typical Max *** 50mA: Backlighting LEDs (Red, Green, Blue) are maximum brightness Contrast Ratio Cr 3.0 Viewing Up & Down 90 q Angle Right & Left 90 f (Cr 1.1) www.nkksmartswitch.com Toll Free 1.877.2BUYNKK Tel 480.991.0942 Fax 480.998.1435 Email: smartswitch nkkswitches.com
