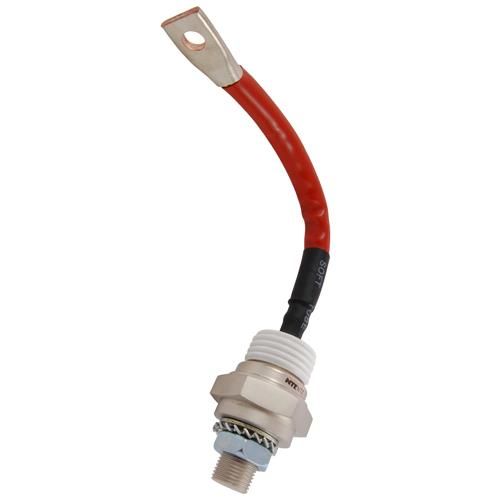

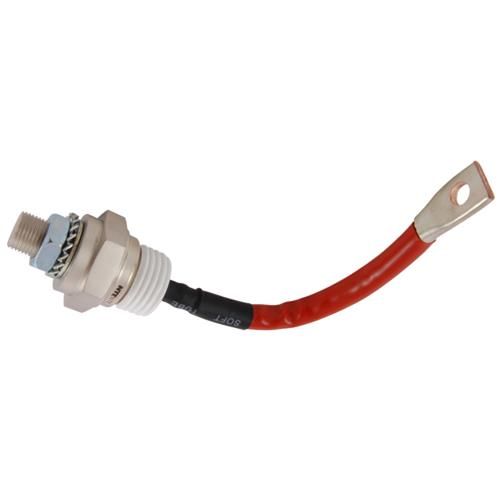

NTE6106 & NTE6107 Industrial Rectifier, 450A Features: Standard and Reverse Polarities Flag Lead and Stud Top Terminals High Surge Current Ratings High Rated Blocking Voltages Applications: Welders Battery Chargers Electrochemical Refining Metal Reduction General Industrial High Current Rectification Electrical Characteristics: Voltage (Blocking State Maximums at Maximum T ) J Repetitive Peak Reverse Voltage, V RRM NTE6106, NTE6107* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600V Non Repetitive Transient Peak Reverse Voltage (t 5.0ms), V RSM NTE6106, NTE6107* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1800V Reverse Leakage Current (Peak), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA RRM Current (Conducting State Maximums) RMS Forward Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700A F (RMS) Average Forward Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 450A F (AV) Surge Current, I FSM 1 / Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8500A 2 3 Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6400A 10 Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5100A Forward Voltage Drop, V FM (I = 1500A, T = +25C) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.6V FM J 2 2 2 I t for Fusing (for times = 8.3ms), I t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 266,000A sec Note 1. * Indicates reverse (anode to case) polarity.Electrical Characteristics (Contd): Switching Typical Reverse Recovery Time, t rr (I = 1500A, t = 190s, diR/dt = 25A/s, T = +25C) . . . . . . . . . . . . . . . . . . . . . . . . . . 11s FM P C Thermal and Mechanical Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +175C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +200C stg Thermal Resistance, Junction toCase, R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.12C/W thJC Thermal Resistance, Case toSink (Lubricated), R . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.04C/W thCS Maximum Mounting Torque . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 360in. lb. 1.685 (42.8) .118 (3.0) .643 (16.35) .340 (8.63) Dia 10.000 (254.0) Max 1.490 (37.84) Dia 4.000 (101.6) 3.100 (78.74) .620 (15.74) 1.060 (26.92) 3/4 16 UNF2A
