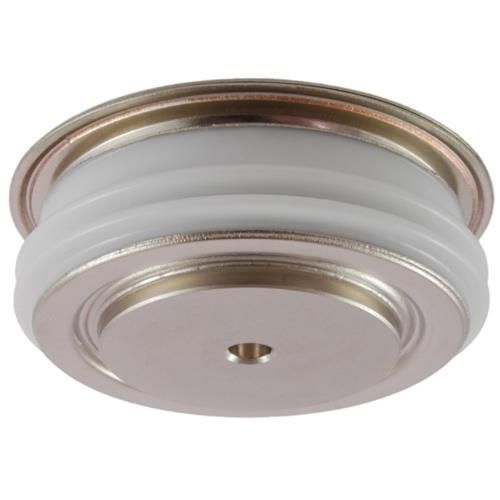

NTE6111 & NTE6114 Silicon Power Rectifier Diode, 1100 Amp Features: Wide Current Range High Voltage Rating High Surge Current Capabilities Applications: Converters Power Supplies Machine Tool Controls High Power Drives Medium Traction Applications Absolute Maximum Ratings: Maximum Repetitive Peak Reverse Voltage, V RRM NTE6111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V NTE6114 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1600V Maximum Non Repetitive Peak Reverse Voltage, V RSM NTE6111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 700V NTE6114 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700V Maximum Reverse Current (T = +180C), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15mA J RRM Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +180C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 to +200C stg Maximum Thermal Resistance, Junction toHeatsink (DC Operation), R th(jhs) Single Side Cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.076C/W Double Side Cooled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.038C/W Maximum Mounting Force (10%), F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9800 (1000) N (Kg) Electrical Specifications: Parameter Symbol Test Conditions Rating Unit Maximum Average Forward Current I 180 Double side cooled, T = +55C 1400 A F (AV) C condition, Half sine Single side cooled, T = +85C 795 A C waveElectrical Specifications (Contd): Parameter Symbol Test Conditions Rating Unit Maximum RMS Forward Current I +25C heatsink temperature double side cooled 2500 A F(RMS) Maximum Peak OneCycle Forward I t = 10ms Sinusoidal Halfwave, 100% V 10930 A FSM RRM NonRepetitive Surge Current Reapplied, Initial T = +180C J t = 8.3ms 11450 A t = 10ms Sinusoidal Halfwave, No Voltage 13000 A Reapplied, Initial T = +180C J t = 8.3ms 13600 A 2 2 2 Maximum I t for Fusing I t t = 10ms Sinusoidal Halfwave, 100% V 598 A s RRM Reapplied, Initial T = +180C J 2 t = 8.3ms 546 A s 2 Sinusoidal Halfwave, No Voltage t = 10ms 846 A s Reapplied, Initial T = +180C J 2 t = 8.3ms 772 A s 2 2 2 Maximum I t for Fusing I t t = 0.1 to 10ms, no voltage reapplied 8460 A t Threshold Voltage, Low Level V T = +180C, (16.7% x x I < I < x I ) 0.78 V F(TO)1 J F(AV) F(AV) Threshold Voltage, High Level V T = +180C, (I > x I ) 0.94 V F(TO)2 J F(AV) Forward Slope Resistance, Low Level r T = +180C, (16.7% x x I < I < x I ) 0.35 m f1 J F(AV) F(AV) Forward Slope Resistance, High Level r T = +180C, (I > x I ) 0.26 m f2 J F(AV) Maximum Forward Voltage Drop V T = +180C, I = 1500A, t = 10ms 1.31 V FM J pk p 1.650 (42.0) Dia Max .140 (3.5) Dia. x .070 (1.8) Deep (Both Sides) 1.000 (25.3) .030 (0.8) Dia Max (Both Ends) (Two Places) .610 (15.4) Max 1.590 (40.5) Dia Max
