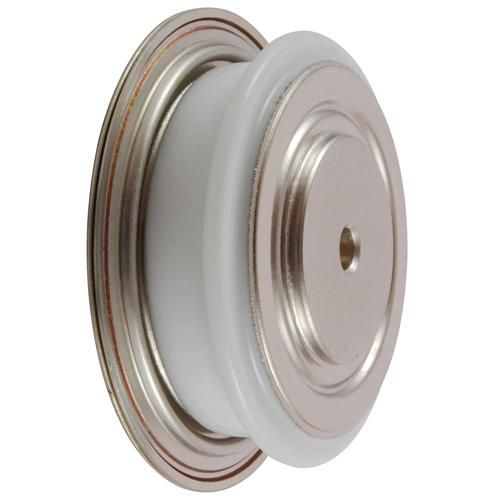

NTE6128 Silicon Power Rectifier Diode 430 Amp, DO200AA Features: Fast Recovery Time Soft Recovery Characteristics High Surge Current Rating High Rated Blocking Voltages Applications: Inverter Chopper Transmitter Free Wheeling Diode Absolute Maximum Ratings: RMS Forward Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 625A F(rms) Average Forward Current, I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430A F(AV) Maximum Repetitive Peak Reverse Voltage, V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1400V RRM = +150C), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50mA Maximum Reverse Current (T J RRM Maximum Forward Surge Current (One Half Cycle), I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500A FSM 2 Maximum Permissible Surge Energy (8.3ms), I t 2 For Fusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85000A s 6 2 Of Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 x 10 A s Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +150C J Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 to +190C stg Thermal Resistance, Junction toCase, R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.095C/W thJC Thermal Resistance, Case toSink (Lubricated), R . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.025C/W thCS Maximum Mounting Force, F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 to 1400 lbs.Electrical Characteristics: Parameter Symbol Test Conditions Rating Unit Forward Voltage Drop V T = +25C, I = 800A 2.0 V FM J FM Repetitive Peak Reverse Voltage V 1600 V RRM NonRepetitive Peak Reverse Voltage V t 5ms 1800 V RSM Reverse Leakage Current (Peak) I T = +150C, V = 1400V 50 mA RRM J RRM Maximum Reverse Recovery Time t I = 785A, t = 100s, di /dt = 25A/s, 1.0 s rr FM p R T = +25C C .530 (13.46) 1.650 (41.91) .030 (.762) .030 (.762) Dia Max 1.440 (36.57) .750 .750 (19.05) (19.05) Cathode Marking .140 (3.55) Dia x .077 (1.94) Deep (Both Sides)
