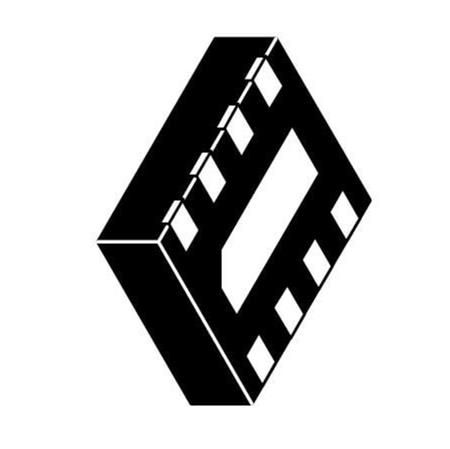

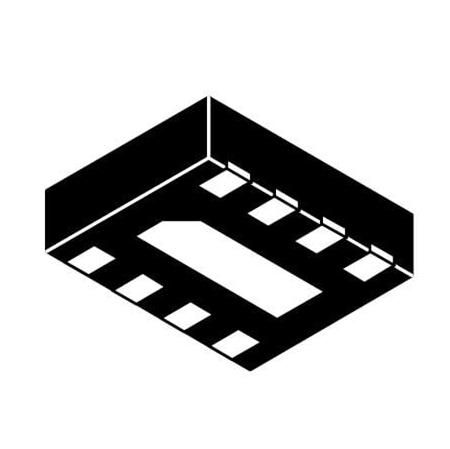

EMI5204MU, EMI5206MU, EMI5208MU Four-Six-Eight-Channel EMI Filter with Integrated ESD Protection EMI5204MU, EMI5206MU, EMI5208MU 12 3 4 12 3 45 6 12 3 45 6 7 8 GND GND GND 857 6 16151413121110 9 12 1110 9 8 7 EMI5204MU EMI5206MU EMI5208MU Figure 3. Pin Diagram (Bottom View) Table 1. FUNCTIONAL PIN DESCRIPTION Filter Device Pins Description EMI5204MU EMI5206MU EMI5208MU Filter 1 1 & 8 1 & 12 1 & 16 Filter + ESD Channel 1 Filter 2 2 & 7 2 & 11 2 & 15 Filter + ESD Channel 2 Filter 3 3 & 6 3 & 10 3 & 14 Filter + ESD Channel 3 Filter 4 4 & 5 4 & 9 4 & 13 Filter + ESD Channel 4 Filter 5 5 & 8 5 & 12 Filter + ESD Channel 5 Filter 6 6 & 7 6 & 11 Filter + ESD Channel 6 Filter 7 7 & 10 Filter + ESD Channel 7 Filter 8 8 & 9 Filter + ESD Channel 8 Ground Pad GND GND GND Ground MAXIMUM RATINGS Parameter Symbol Value Unit ESD Discharge IEC6100042 Contact Discharge V 8.0 kV PP Operating Temperature Range T 40 to 85 C OP Storage Temperature Range T 55 to 150 C STG Maximum Lead Temperature for Soldering Purposes (1.8 in from case for 10 seconds) T 260 C L Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. ELECTRICAL CHARACTERISTICS (T = 25C unless otherwise noted) J Parameter Symbol Test Conditions Min Typ Max Unit Maximum Reverse Working Voltage V 5.0 V RWM Breakdown Voltage V I = 1.0 mA 6.0 7.0 8.0 V BR R Leakage Current I V = 3.3 V 100 nA R RWM Resistance R I = 10 mA 85 100 115 A R Diode Capacitance C V = 2.5 V, f = 1.0 MHz 7.0 11 pF d R Line Capacitance C V = 2.5 V, f = 1.0 MHz 14 22 pF L R 3 dB CutOff Frequency (Note 1) f Above this frequency, 250 MHz 3dB appreciable attenuation occurs 1. 50 source and 50 load termination.
