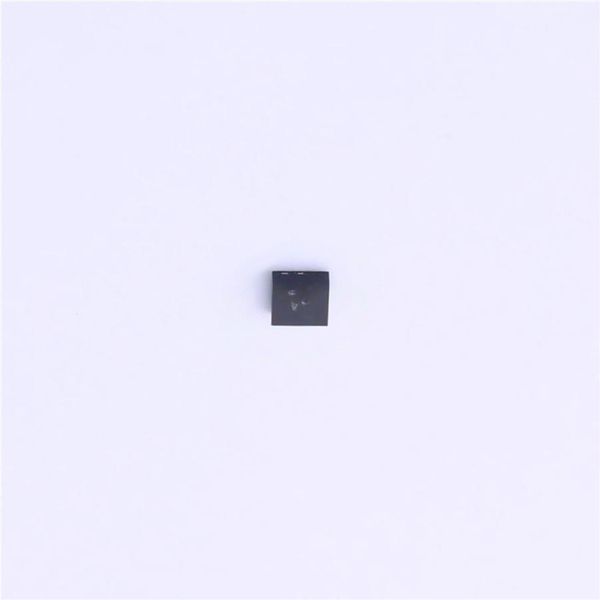

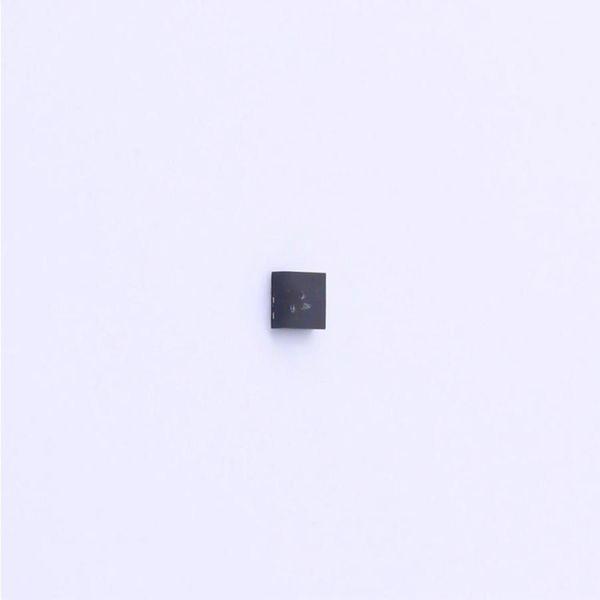

NLX1G74MUTCG ON Semiconductor

NLX1G74 Single D Flip-Flop The NLX1G74 is a high performance, full function edgetriggered D FlipFlop in ultrasmall footprint. The NLX1G74 input structures provide protection when voltages up to 7.0 V are applied, regardless of the supply voltage. NLX1G74 MAXIMUM RATINGS Symbol Parameter Value Unit V DC Supply Voltage 0.5 to +7.0 V CC V DC Input Voltage 0.5 to +7.0 V I V DC Output Voltage Output in High or Low State (Note 1) 0.5 to V +0.5 V O CC I DC Input Diode Current V < GND 50 mA IK I I DC Output Diode Current V < GND 50 mA OK O I DC Output Sink Current 50 mA O I DC Supply Current Per Supply Pin 100 mA CC I DC Ground Current Per Ground Pin 100 mA GND T Storage Temperature Range 65 to +150 C STG T Lead Temperature, 1 mm from Case for 10 Seconds 260 C L T Junction Temperature Under Bias +150 C J Thermal Resistance (Note 2) 250 C/W JA P Power Dissipation in Still Air at 85C 250 mW D MSL Moisture Sensitivity Level 1 F Flammability Rating Oxygen Index: 28 to 34 UL 94 V0 0.125 in R V ESD Withstand Voltage Human Body Model (Note 3) >2000 V ESD Machine Model (Note 4) >200 Charged Device Model (Note 5) N/A Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability. 1. I absolute maximum rating must be observed. O 2. Measured with minimum pad spacing on an FR4 board, using 10 mm X 1 inch, 2 ounce copper trace with no air flow. 3. Tested to EIA/JESD22A114A. 4. Tested to EIA/JESD22A115A. 5. Tested to JESD22C101A. RECOMMENDED OPERATING CONDITIONS Symbol Parameter Min Max Unit V Supply Voltage Operating 1.65 5.5 V CC Data Retention Only 1.5 5.5 V Input Voltage (Note 6) 0 5.5 V I V Output Voltage (HIGH or LOW State) 0 V V O CC T Operating FreeAir Temperature 40 +85 C A t/ V Input Transition Rise or Fall Rate V = 2.5 V 0.2 V 0 20 ns/V CC V = 3.0 V 0.3 V 0 10 CC V = 5.0 V 0.5 V 0 5.0 CC 6. Unused inputs may not be left open. All inputs must be tied to a highlogic voltage level or a lowlogic input voltage level. ORDERING INFORMATION Device Package Shipping NLX1G74MUTCG UQFN8 3000 / Tape & Reel (PbFree) NLVX1G74MUTCG* UQFN8 3000 / Tape & Reel (PbFree) For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging Specifications Brochure, BRD8011/D. *NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements AECQ100 Qualified and PPAP Capable.
