CBBR0441 Pro Power

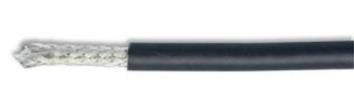

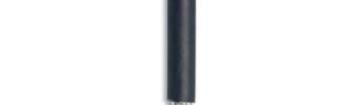

Coaxial Cables RG58CU 50 Description: Stranded Tinned Annealed Copper Wire, Solid PE Insulation, Tinned Annealed Copper Wire Braiding 93% Coverage, PVC Sheath. Application: For CATV/MATV, Broadband, HDTV and Satellite Broadcasting Transmission use. Construction: Conductor Material : Stranded Tinned Annealed Copper Wire Stranding : 19/0.19mm (20AWG) Insulation Material : Solid PE Nominal I.D : 2.9mm Shielding Material : Tinned Annealed Copper Wire Braiding, 93% coverage Sheath Material : PVC Nominal O.D : 5mm Colour : Black www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 23/07/13 V1.0Coaxial Cables RG58CU 50 Physical Properties: Min. Bend Radius : 50mm Operating Temperature :-15C to +70C Electrical Properties: Max. D.C Resistance : 35.4/km 20C Nom. Characteristic Impedance : 50+/-3 Nom. Capacitance : 101pF/m Voltage Test : Core to Shielding 2,300V AC / 1 min Nom. Velocity of Propagation : 66% Max. Attenuation (dB /100m) MHz 1 10 50 100 200 dB 1.4 4.6 10.8 16.1 23.9 MHz 400 700 900 1,000 *** dB 37.7 55.8 65.6 70.5 *** Part Number Table Description Part Number Cable, Coaxial, RG58C/U, 100m CBBR0441 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 23/07/13 V1.0
