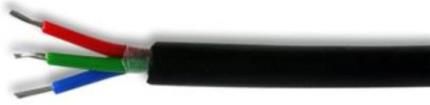

Defence Standard 61-12 Part 4 - 7-1-A Unscreened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.055mm Construction : T0.1 0.008 7 Stranded Dia.(mm) : 0.3 Insulation Thickness : 0.2 Insulation Dia.(+/-0.05mm) : 0.7 Insulation : PVC Insulation Colours : See Insulation Colours Table Jacket Material : PVC Jacket Colour : Black Nylon Rip Cord : 150D Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) : <338.6 20C Insulation Resistance (M/Km) : >200 Rated Temperature(C) : 80 Rated Voltage(V) : 250 Insulation Colours table Core Number Colour 1 Red 2 Blue 3 Green 4 Yellow 5 White 6 Black 7 Brown 8 Violet 9 Orange 10 Pink 11 Turquoise 12 Grey 13 Red/Blue 14 Green/Red 15 Yellow/Red www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 30/04/15 V1.3Defence Standard 61-12 Part 4 - 7-1-A Unscreened Multicore Cable Part Number Table Jacket Diameter Reel Length Description Core No. Filler Part Number (mm) (m) Cable, Unscreened, DEF 7-1-2A 2 2.3 PP000261 25 PP000262 Cable, Unscreened, DEF 7-1-3A 3 2.4 - 100 PP000263 25 PP000264 Cable, Unscreened, DEF 7-1-4A 4 2.6 100 PP000265 25 PP000266 Cable, Unscreened, DEF 7-1-6A 6 3.1 0.7PVC Strip 100 PP000267 1.35 PVC Strip 25 PP000268 Cable, Unscreened, DEF 7-1-9A 9 3.7 PP000269 Cable, Unscreened, DEF 7-1-12A 12 3.9 - 100 PP000270 Cable, Unscreened, DEF 7-1-15A 15 4.2 PP000271 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 30/04/15 V1.3
