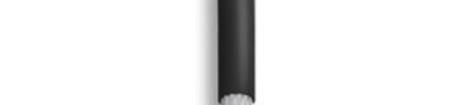

SY LSZH / BS EN 50525-3-11 Multiconductor Screened Flexible Control Cable Application: Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for fixed installations or for flexible use in conditions of light mechanical stress. Can be used outdoors when protected from direct sunlight, and in dry or moist conditions indoors. The braided screen offers the best possible protection against mechanical damage and offers a level of electro-magnetic shielding. The galvanized coating helps protect against corrosion. Construction: Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation LSZH (Low Smoke Zero Halogen) Type TI6 according to BS EN 50363 Bedding LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363 Braiding GSWB (Galvanized Steel Wire Braid) minimum coverage of braiding shall be 50% Sheath LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363-8 Cable Standards Generally to BS EN 50525-3-11 (BS 6500) and VDE0250, BS EN/IEC 60332-3, BS EN/IEC 60754-1 and 2, BS EN 50267-2-1 and 2, BS EN/IEC 61034-1 Characteristics: Voltage Rating (Uo/U) 300/500V Temperature Rating -15C to +70C Minimum Bending Radius 10 overall diameter Core Identification Colour Coded Cores 3 core : Blue, Brown & Green/Yellow 4 core : Brown, Black, Grey & Green/Yellow 5 core : Blue, Brown, Black, Grey & Green/Yellow Sheath Colour Black Note SY Cables are not suitable for direct connection into the main service fuse. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/02/15 V1.3SY LSZH / BS EN 50525-3-11 Multiconductor Screened Flexible Control Cable Dimensions: Nominal Nominal Nominal Nominal Nominal Nominal Cross Nominal No. of Thickness of Thickness Diameter Thickness Overall Part Number Sectional Area Weight Cores Insulation of Bedding of GSWB of Sheath Diameter mm kg/km mm mm mm mm mm PP000497 1.5 0.5 0.5 0.24 1 9 138 3 PP000498 2.5 0.6 0.5 0.24 1 10 188 PP000499 4 1.5 0.5 0.5 0.24 1 10 161 PP000500 5 2.5 0.6 0.6 0.24 1 12 264 Conductors Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Nominal Cross Max. Diameter of Wires Max. Resistance of Conductor at 20C Sectional Area in Conductor Plain Wires mm mm / km 1.5 0.26 13.3 2.5 0.26 7.98 Electrical Characteristics: Current Carrying Capacity at 30C Current Carrying Capacity Nominal Cross Sectional Area In Conduit In Air mm Amps Amps 1.5 15 24 2.5 20 32 Voltage Drop: Nominal Cross Sectional Single-Phase Three-Phase Two Core Cable DC Area Two Core Cable AC Three Or Four Core Cable AC mV/A/m mm2 mV/A/m mV/A/m 1.5 29 29 25 2.5 18 18 15 Part Number Table Description No. of Cores Reel Length Part Number PP000497 3 PP000498 SY LSZH / BS EN 50525-3-11 100m Multiconductor Screened Flexible Control Cable 4 PP000499 5 PP000500 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/02/15 V1.3
