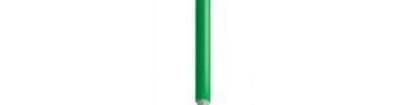

Profinet Type A Multipair Cable Application This multipair Profinet Type A cable with solid copper conductors for the cabling of industrial field bus systems with the globally accepted TCP/IP protocol. Suitable for fixed or flexible applications. Cable properties include a high active and passive interfer - ence resistance. They are free from paint wetting disruptive substances (LABS-free). Characteristics Voltage Rating (Uo/U) : 300V Temperature Rating : Fixed: -20C to +70C Minimum Bending Radius : Fixed: 7.5 overall diameter Flexed: 15 overall diameter Cable Standards BS EN/IEC 50288-1, BS EN/IEC 61156-2, EN 50396 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor Class 1 solid copper conductor Insulation LSZH (Low Smoke Zero Halogen) Bedding LSZH (Low Smoke Zero Halogen) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 09/02/18 V1.2Profinet Type A Multipair Cable Screen 1 AL/PET (Aluminium Polyester Tape) Screen 2 TCWB (Tinned Copper Wire Braid) Sheath LSZH (Low Smoke Zero Halogen) Core Identification White and Blue Yellow and Orange Sheath Colour Green Dimensions Nominal Conductor Nominal Diameter Nominal Bedding Nominal Overall Nominal No. of Diameter Insulation Diameter Diameter Weight Pairs 2 mm (AWG) mm mm mm kg/km 2 0.34 (22) 1.43 4.2 6.5 74 Electrical Characteristics Max. DC Capacitance Min. Dielectric Strength Nominal Delay Conductor pF/km Insulation Impedance kVac / 1 min Propagation Skew Resistance Resistance Velocity ns/100m Core/Core Unbalanced Core/Core Unbalanced /km Gkm 56.4 52 1600 5 100 67% 50 1.5 1 Part Number Table Reel Description Part Number Length Profinet Type A Multipair Cable 100m PP001545 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 09/02/18 V1.2
