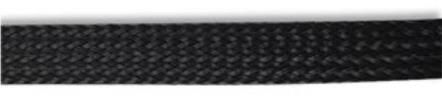

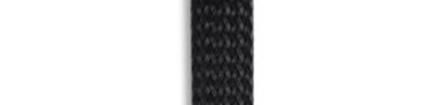

PP-08-0 Pro Power

Braided Sleevings Specification Table Minimum Maximum Nominal Maximum Minimum Reel Operating Operating Colour Material Bore Bore Bore Length Part number Temperature Temperature Diameter Diameter Diameter (m) (C) (C) 3 5 1 PP-03-8 4 7 2 PP-04-8 5 9 3 PP-05-8 100 6 11 4 PP-06-8 8 12 5 PP-08-8 Grey 10 15 7 PP-10-8 12 17 8 PP-12-8 50 15 20 10 PP-15-8 20 26 14 PP-20-8 25 34 18 25 PP-25-8 30 40 20 PP-30-8 Polyester -50 150 3 5 1 PP-03-0 4 7 2 PP-04-0 5 9 3 PP-05-0 100 6 11 4 PP-06-0 8 12 5 PP-08-0 Black 10 15 7 PP-10-0 12 17 8 PP-12-0 50 15 20 10 PP-15-0 20 26 14 PP-20-0 25 34 18 25 PP-25-0 30 40 20 PP-30-0 Dimensions : Millimetres (Unless Specified) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 1> 20/12/11 V1.1Braided Sleevings Specifications Minimum Maximum Nominal Maximum Minimum Reel Operating Operating Colour Material Bore Bore Bore Length Part number Temperature Temperature Diameter Diameter Diameter (m) (C) (C) 3 6.4 2.4 PP1/8-09 100 6 9.5 3.2 PP1/4-09 10 16 4.7 PP3/8-09 Black / White 50 13 19 6.4 PP1/2-09 19 32 13 PP3/4-09 25 Polyester -50 150 32 45 19 PP1-1/4-09 3 6.4 2.4 PP1/8-80 100 6 9.5 3.2 PP1/4-80 Grey / Black 10 16 4.7 PP3/8-80 50 13 19 6.4 PP1/2-80 19 32 13 25 PP3/4-80 Dimensions : Millimetres (Unless Specified) Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2011. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 2> 20/12/11 V1.1
