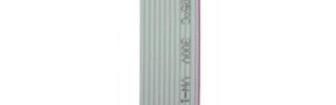

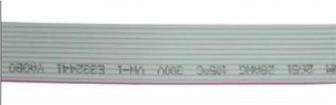

Grey Ribbon Cable 28AWG, 1.27mm Pitch Structural View Cable Specification PVC Insulated 105C 300V Hook Up Wire UL2651 28AWG(7/0.127TS) Colour Grey Construction Item Specification shown Size 28AWG Construction 7/0.127 0.005mm Conductor Material Tinned Copper Conductor Conductor Diameter 0.381mm Material 105C PVC Minimum Thickness 0.23mm Insulation Average Thickness 0.26mm Pitch 1.27 0.15mm Diameter 0.9 0.1mm Electrical Characteristics Physical Properties Rated Temperature 105C Unaged : 1500PSI Tensile Strength Rated Voltage 300V Aged : 1290PSI (85%) Voltage-Withstand 2500V/1 Minute Unaged : 100% Elongation Cond. Resistance Max 237/kM 20C Aged : 65% Insu. Resistance Min 100M/kM 20C - Standard : UL758 UL1581 C22.2 Application : Internal Wiring Of Appliances And Electronic Equipment www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 05/10/16 V1.1Grey Ribbon Cable 28AWG, 1.27mm Pitch Part Number Table Description Width Part Number Ribbon Cable, 6 Core, 30.5m, 28AWG 8mm R2651DTSY06SC85 Ribbon Cable, 10 Core, 30.5m, 28AWG 13mm R2651DTSY10SC85 Ribbon Cable, 14 Core, 30.5m, 28AWG 18mm R2651DTSY14SC85 Ribbon Cable, 16 Core, 30.5m, 28AWG 21mm R2651DTSY16SC85 Ribbon Cable, 20 Core, 30.5m, 28AWG 26mm R2651DTSY20SC85 Ribbon Cable, 26 Core, 30.5m, 28AWG 33mm R2651DTSY26SC85 Ribbon Cable, 40 Core, 30.5m, 28AWG 51mm R2651DTSY40SC85 Ribbon Cable, 50 Core, 30.5m, 28AWG 64mm R2651DTSY50SC85 Ribbon Cable, 64 Core, 30.5m, 28AWG 82mm R2651DTSY64SC85 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 05/10/16 V1.1
