R2651HTSY10SC85 Pro Power

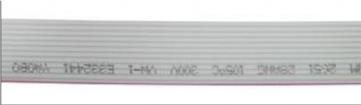

Grey Ribbon Cable 28AWG, 1 mm Pitch Structural View Cable Specification PVC Insulated 105C 300V Hook Up Wire UL2651 28AWG(7/0.127TS) Colour Code Grey Construction Item Specification shown Size 28AWG Construction 7/0.127 0.005mm Conductor Material Tinned Copper Conductor Conductor Diameter 0.381mm Material 105C PVC Minimum Thickness 0.23mm Insulation Average Thickness 0.26mm Pitch 1 0.15mm Diameter 0.9 0.1mm Electrical Characteristics Physical Properties Rated Temperature 105C Unaged : 1500PSI Tensile Strength Rated Voltage 300V Aged : 1290PSI (85%) Voltage-Withstand 2500V/1 Minute Unaged : 100% Elongation Cond. Resistance Max 237/kM 20C Aged : 65% Insu. Resistance Min 100M/kM 20C - Standard : UL758 UL1581 C22.2 Application : Internal Wiring Of Appliances and Electronic Equipment Part Number Table Description Width Part Number Ribbon Cable, 10 Core, 30.5m, 28AWG 10mm R2651HTSY10SC85 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 05/10/16 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : 0301CV100W 04JSBLACK 06JSBLACK 08450046010 08450056010 08450066010 08450166010 08450236010 08450256010 08JSBLACK 10026B 10026BK 10026G 10026R 10026TB 10026TBK 10026TG 10026TR 10026TW 10026W 10030B 10030BK 10030G 10030O 10030R
