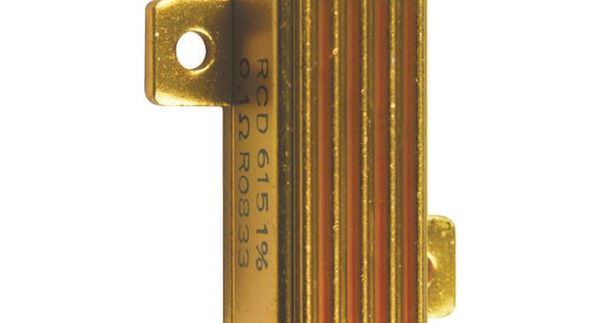

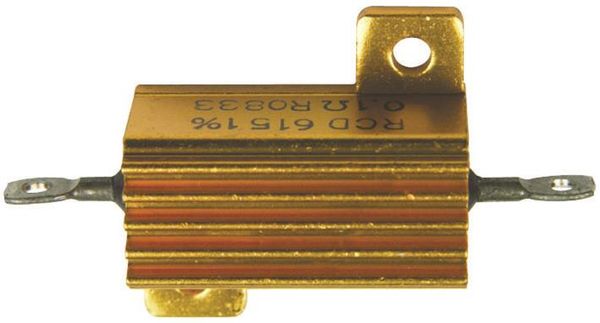

RoHS ALUMINUM HOUSED RESISTORS RESISTORS CAPACITORS COILS DELAY LINES Term.W is RoHS compliant 600 SERIES Standard units feature lug terminals (605 - 630) & 260C compatible or threaded terminals (635 & 640). Widest selection in the industry 5 to 1000 Watt Option L (605-625): Insulated stranded wires 0.005 to1M, tolerance to .01%, TC to 5ppm embedded into the case. Black TFE 18awg x High power and high pulse capacity in compact size 12L with strip is standard (16awg TFE & Welded wirewound construction, low noise 14awg PVC avail). Also available with 4 insulated TM Available on exclusive SWIFT delivery program lead wires (Opt.4L), and with a wide variety of terminals... quick-connect male (Opt. LM=.25x.032) Option X: Non-inductive female (Opt. LF=.25x.032, LFS=.187x.020) Option P: Increased pulse capability ring terminal (Opt. LR=.145 I.D., LRR=.25 I.D.). Option ER: 100 hour burn-in per MIL-PRF-39009 Option B: Increased power Additional modifications: unanodized cases, custom marking, Option 2T & 4T (605-625): Straight leadwires. 2T is 2-terminal design, 4T is 4-terminal. Each increased dielectric/creepage & working voltage, low thermal emf have 18awg x 1 min lead length. 16awg x 1 (opt.E), etc. Customized components are an RCD Specialty and 12AWG x .5 also available (12 AWG not avail in Opt 4T). A L D 605-630 605-630 F B E G View From Top View From Side Option 4R (605-630): 4-terminal design. 16AWG N H lug terminals are welded to standard terminals. C Type 630 & 640 have 4 mounting holes L A D Option Q (605-630): .187x.020 male fast-on 635-640 635-640 B F E G View From Side terminal Opt. Q2 (610-625) is .250x.032 View From Top H male terminal. Opt. Q & Q2 add 0.9 0.125 C to Dim. D. 1/4-20,12-24 3.00.01 (640 only) SPECIFICATIONS: Consult factory for dimensions on liquid cooled design up to 1000 Watt Wattage,Mounted RCD Resis. Voltage A B C D E F G H L N Mtg 1 MIL Type 2 Type Range ( ) Rating .005 .005 .062 .062 .031 .031 .031 .010 .005 .005 Screw SBtdOLpt. MI .444 .490 .600 1.125 .334 .646 .320 .065 .093 .050 2 6005R5E/RER6 75. 15.0005-20K 16 11.3 12.5 15.2 28.6 8.5 16.4 8.2 1.6 2.4 1.3 M2 .562 .625 .750 1.375 .420 .800 .405 .075 .093 .086 2 6510R5E/RER6102. 201K.5005-100 26 14.3 15.9 19.0 35.0 10.8 20.3 10.3 1.9 2.4 2.2 M2 .719 .781 1.062 1.938 .531 1.080 .546 .088 .125 .086 4 6015R5E/RER7 25302K.0005-200 55 18.3 19.8 27.0 49.3 13.5 27.4 13.9 2.2 3.2 2.2 M2.5 1.563 .844 1.968 2.781 .609 1.140 .610 .088 .125 .086 4 6520R0E/RER7 50603K.0005-400 125 39.7 21.5 50.0 70.6 15.6 28.8 15.5 2.2 3.2 2.2 M2.5 1.563 .844 2.850 3.663 .609 1.140 .610 .088 .125 .086 4 6-25 7-5 -.001-500K 190 39.7 21.5 72.4 93.0 15.6 28.8 15.5 2.2 3.2 2.2 M2.5 1.377.01 1.457.01 2.579 3.38.09 1.053 1.839.5960.0 .138.03 .173.01 .086 Min 8 6-30 1-00 -00.1-100K 190 35.0 37.0 65.5 85.9 26.7 46.7 24.4 3.5 4.4 2.2 M4 2.75.01 2.25.01 3.50 5.48.09 1.812 2.812 1.75 .188.03 .188.01 8 6735R0E7 100 1557K00.1-600 190 n/a 69.85 57.15 88.9 139.14 46.0 71.42 44.45 4.78 4.78 M4 3.875.01 2.50.01 4.50 7.00.09 2.125 3.00 2.188 .250.03 .188.01 8 6040R0E8 205 3001M200.1-1 230 n/a 98.42 63.5 114.3 177.8 53.98 76.2 55.58 6.35 4.78 M4 1 2 Military part numbers are for reference only and do not imply qualification. Max. voltage = ( PR) , not to exceed the value listed (increased ratings avail). Multiply by 0.7 for Opt.X. TYPICAL PERFORMANCE CHARACTERISTICS: DERATING: Power rating is based on the use of a suitable heat sink and thermal compound to limit case temp. to 200C. Derate wattage 0.44%/C above 25C. Temp.Coefficient .005 - .0099 : 600ppm std (200, 300ppm opt.) Recommended aluminum chassis area is 64in x.040 thick for type 605 and 610, .01 - .049 : 300ppm std (100, 200ppm opt.) 83in x.040 thick for type 615, 144in x.060 thick for type 620, and 144in x .125 .05 - .099:)200ppm std (50, 100ppm opt. for types 625 through 640. Without a heat sink, derate wattage rating by 60%1 - .99:)90ppm std(10, 20, 30, 50ppm opt 1 - 9.9:)50ppm std (10, 20, 30ppm opt. 10 & above: 20ppm std (5, 10ppm opt.) P/N DESIGNATION: 610 - 1001 - F B W 3 Dielectric (DWV) Standard Optional RCD Type 605, 610 1KV 2KV (Opt.36), 2.5KV (Opt.34) Options: X, Q2, Q, P, LRR, LR, LM, LFS, LF, L, ER, 615, 620, 625 2KV 2.5KV (Opt.34), 3KV (Opt.41) E, B, 65, 41, 36, 34, 16, 14, 4T, 4R, 4L (leave blank if std) 630, 635, 640 2.5KV 3KV (Opt.41), 4KV (Opt.65) Resis. Code: 1%: 3 signif. figures & multiplier, Inductance, Opt.X 50 >50 e.g. R010=0.01, R100= 0.1 , 1R00= 1 ,1000= 100 , 1001= 1K 605 0.2uH Max 0.37uH Max Resis. Code 2% - 10%: 2 signif. figures & multiplier, e.g. 610, 615 0.3uH Max 0.6uH Max R01=0.01 , R10= 0.1, 1R0= 1 ,100= 10 , 102= 1K 620, 625 0.65uH Max 1.2uH Max Tolerance: K=10%, J=5%, H=3%, G=2%, F=1%, D=0.5%, 630, 635, 640 1.5uH Max 3.0uH Max C=0.25%, B=0.1%, A=0.05%, Q=0.02%, T=0.01% Load Life (1000 hrs) 1% (2% for 625-640, and 3% Opt.B) Packaging: B = standard Moisture Resistance 0.5% Overload 5x rated W, 5 Sec (V not to exceed DWV) Non-std lead length for option L (inches): (12 = std) 4, 16, etc. Terminal Strength 10-lb pull test Optional TC (leave blank if std): 5=5ppm, 10=10ppm 20=20ppm Operating Temp. -55C to +250C 30=30ppm 50=50ppm 101=100ppm, 201=200ppm, 301=300ppm) 3 The dielectric strength on Opt. L resistors is 50% of standard (available up to 3KV) Termination: W= Lead-free, Q= Tin/Lead (leave blank if either is acceptable) - - - - RCD Components Inc, 520 E.Industrial Park Dr, Manchester, NH, USA 03109 rcdcomponents.com Tel: 603 669 0054 Fax: 603 669 5455 Email:sales rcdcomponents.com FA018F Sale of this product is in accordance with GF-061. Specifications subject to change without notice. 46X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for rcd manufacturer: Other Similar products are found below : 605B-1R50-FBW CC1-104-KBW PR1-3R3-JBW LVF15-R010-FBW 210-1R00-FBW PWLL25-302-JBW 160-1002-FBW 605B-R100- FBW 210-10R0-FBW 610Q2-331-JBW 160-2500-FBW 160-1R00-FBW 135X-800-JBW 135-1500-FBW 235-1001-FBW 610Q-1250-FBW 135-180-JBW 175-5000-FBW 135-5R00-FBW 610-1R00-FBW 160-510-JBW 175-131-JBW 232-1000-FBW PW5-251-JBW PW5-500- JBW RSF1B-4R7-JBW 135-2500-FBW 135-821-JBW 160-120-JBW 630X-100-JBW LVF15-R040-FBW 135-152-JBW 160-3002-FBW 160-244-JBW 610-5001-FBW 160-1R5-JBW 255-1000-FBW 175-R500-FBW 160-331-JBW 175-2R4-JBW 160-R100-FBW 175-820-JBW PW5-912-JBW 610-5R00-FBW 620-103-JBW 125P-151-JBQ 620-R25-JBW 125-130-JBW 160-5R00-FBW 160-9R1-JBW
