PS2562L-1-F3-A Renesas

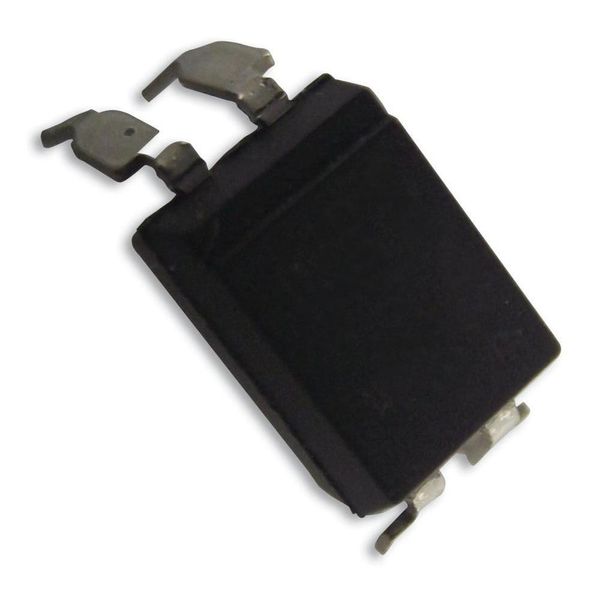

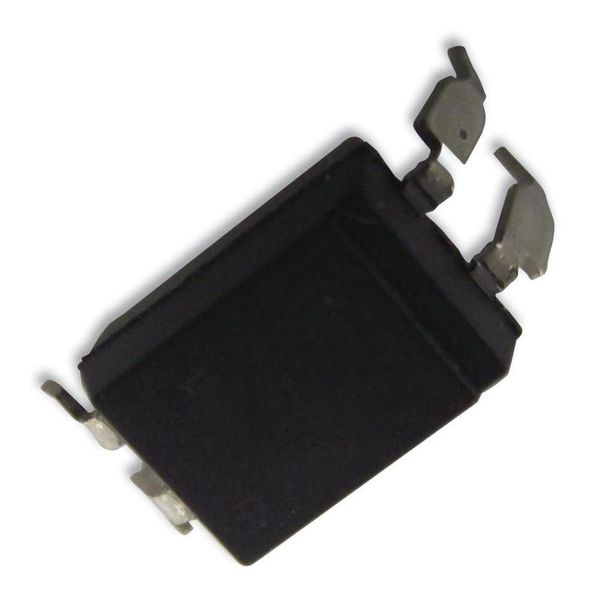

Data Sheet PS2562-1, PS2562L-1, PS2562L1-1, PS2562L2-1 R08DS0200EJ0100 Rev.1.00 HIGH ISOLATION VOLTAGE DARLINGTON TRANSISTOR TYPE Dec 25, 2020 DESCRIPTION The PS2562-1 is optically coupled isolators containing a GaAs light emitting diode and an NPN silicon darlington connected phototransistor. The PS2562-1 is in a plastic DIP (Dual In-line Package) and the PS2562L-1 is lead bending type (Gull-wing) for surface mount. The PS2562L1-1 is wide lead bending type. The PS2562L2-1 is wide lead bending type for surface mount. FEATURES High isolation voltage (BV = 5 000 Vr.m.s.) PIN CONNECTION High current transfer ratio (CTR = 2 000 % TYP.) (Top View) High-speed switching (tr, tf = 100 s TYP.) Ordering number of taping product: PS2562L-1-F3 : 2 000 pcs/reel 4 3 : PS2562L2-1-F3 : 2 000 pcs/reel 1. Anode Pb-Free product 2. Cathode Safety standards 3. Emitter UL approved: UL1577, Double protection 4. Collector CSA approved: CAN/CSA-C22.2 No. 62368-1, Reinforced insulation 1 2 BSI approved: BS EN 62368-1, Reinforced insulation SEMKO approved: EN 62368-1, IEC 62368-1, Reinforced insulation NEMKO approved: EN 62368-1, Reinforced insulation FIMKO approved: EN 62368-1, Reinforced insulation DEMKO approved: EN 62368-1, Reinforced insulation VDE approved: DIN EN 60747-5-5 (Option) APPLICATIONS Power supply Telephone/FAX. Programmable logic controller FA/OA equipment R08DS0200EJ0100 Rev.1.00 Page 1 of 15 Dec 25, 2020 PS2562-1, PS2562L-1 PS2562L1-1 PS2562L2-1 PACKAGE DIMENSIONS (UNIT: mm) DIP Type Wide Lead Bending Type PS2562L1-1 PS2562-1 4.60.35 4.60.35 4 3 4 3 1 2 7.62 10.16 1 2 0.500.1 0.25 M 0 to 15 +0.1 0.25 0.05 1.250.15 +0.1 1.250.15 0.25 0.500.10 2.54 0.05 0 to 15 0.25 M 2.54 Lead Bending Type For Surface Mount Wide Lead Bending Type For Surface Mount PS2562L2-1 PS2562L-1 4.60.35 4.60.35 4 3 4 3 1 2 1 2 0.90.25 1.250.15 0.25 10.16 1.250.15 0.90.25 0.25 M +0.2 0.25 M 9.600.4 11.8 0.5 2.54 2.54 0.15 Weight ( 4-pin DIP)0.26 g (typ.) PHOTOCOUPLER CONSTRUCTION Parameter Unit (mm) Air Distance (MIN.) 7 Creepage Distance (MIN.) 7 Isolation Distance (MIN.) 0.4 R08DS0200EJ0100 Rev.1.00 Page 2 of 15 Dec 25, 2020 3.20.4 4.150.4 6.50.5 3.50.3 6.50.5 3.50.3 +0.1 0.25 0.05 +0.1 0.1 0.05 3.15 3.85 0.35 0.4 3.50.3 6.50.5 3.50.3 6.50.5 0.250.2 +0.1 0.25 0.05
