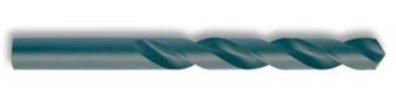

Twist drills Twist drills DIN 338 type N HSS rolled 1.1 1.1 Point cut: helical point Highly efficient standard drill suitable for all Applications: for steel and cast-steel alloyed Point angle: 118 usual drilling work in all normal materials. High and unalloyed up to approx. 900 N/mm Helix angle: 20-30 security against fracture. strength, grey cast, malleable cast iron, die- tolerance: h8 cast metal, iron sinter, nickel-silver, graphite Surface: black, vacuum cast iron, short-chipping aluminium alloys, metalized bronze and brass. Right-hand cutting Packing unit: 0,30 mm up to 10,40 mm in plastic box of 10 10,50 mm up to 16,00 mm in plastic box of 5 16,50 mm up to 20,00 mm in plastic box of 1 Total length Flute length Article no. Price Total length Flute length Article no. Price mm mm mm mm mm mm each each 0,30 19 3 201 003 4,75 80 47 201 0475 0,40 20 5 201 004 4,80 86 52 201 048 0,50 22 6 201 005 4,90 86 52 201 049 0,60 24 7 201 006 5,00 86 52 201 050 0,70 28 9 201 007 5,10 86 52 201 051 0,80 30 10 201 008 5,20 86 52 201 052 0,90 32 11 201 009 5,25 86 52 201 0525 1,00 34 12 201 010 5,30 86 52 201 053 1,10 36 14 201 011 5,40 93 57 201 054 1,20 38 16 201 012 5,50 93 57 201 055 1,25 38 16 201 0125 5,60 93 57 201 056 1,30 38 16 201 013 5,70 93 57 201 057 1,40 40 18 201 014 5,75 93 57 201 0575 1,50 40 18 201 015 5,80 93 57 201 058 1,60 43 20 201 016 5,90 93 57 201 059 1,70 43 20 201 017 6,00 93 57 201 060 1,75 43 20 201 0175 6,10 101 63 201 061 1,80 46 22 201 018 6,20 101 63 201 062 1,90 46 22 201 019 6,25 101 63 201 0625 2,00 49 24 201 020 6,30 101 63 201 063 2,10 49 24 201 021 6,40 101 63 201 064 2,20 53 27 201 022 6,50 101 63 201 065 2,25 53 27 201 0225 6,60 101 63 201 066 2,30 53 27 201 023 6,70 101 63 201 067 2,40 57 30 201 024 6,75 101 63 201 0675 2,50 57 30 201 025 6,80 109 69 201 068 2,60 57 30 201 026 6,90 109 69 201 069 2,70 61 33 201 027 7,00 109 69 201 070 2,75 61 33 201 0275 7,10 109 69 201 071 2,80 61 33 201 028 7,20 109 69 201 072 2,90 61 33 201 029 7,25 109 69 201 0725 3,00 61 33 201 030 7,30 109 69 201 073 3,10 65 36 201 031 7,40 109 69 201 074 3,20 65 36 201 032 7,50 109 69 201 075 3,25 65 36 201 0325 7,60 117 75 201 076 3,30 65 36 201 033 7,70 117 75 201 077 3,40 70 39 201 034 7,75 117 75 201 0775 3,50 70 39 201 035 7,80 117 75 201 078 3,60 70 39 201 036 7,90 117 75 201 079 3,70 70 39 201 037 8,00 117 75 201 080 3,75 70 39 201 0375 8,10 117 75 201 081 3,80 75 43 201 038 8,20 117 75 201 082 3,90 75 43 201 039 8,25 117 75 201 0825 4,00 75 43 201 040 8,30 117 75 201 083 4,10 75 43 201 041 8,40 117 75 201 084 4,20 75 43 201 042 8,50 117 75 201 085 4,25 75 43 201 0425 8,60 125 81 201 086 4,30 80 47 201 043 8,70 125 81 201 087 4,40 80 47 201 044 8,75 125 81 201 0875 4,50 80 47 201 045 8,80 125 81 201 088 4,60 80 47 201 046 8,90 125 81 201 089 4,70 80 47 201 047 9,00 125 81 201 090 - 26 -Twist drills Twist drills DIN 338 type N HSS rolled 1.1 1.1 Point cut: helical point Highly efficient standard drill suitable for all Applications: for steel and cast-steel alloyed Point angle: 118 usual drilling work in all normal materials. High and unalloyed up to approx. 900 N/mm Helix angle: 20-30 security against fracture. strength, grey cast, malleable cast iron, die- tolerance: h8 cast metal, iron sinter, nickel-silver, graphite Surface: black, vacuum cast iron, short-chipping aluminium alloys, metalized bronze and brass. Right-hand cutting Packing unit: 0,30 mm up to 10,40 mm in plastic box of 10 10,50 mm up to 16,00 mm in plastic box of 5 16,50 mm up to 20,00 mm in plastic box of 1 Total length Flute length Article no. Price Total length Flute length Article no. Price mm mm mm mm mm mm each each 9,10 125 81 201 091 11,70 142 94 201 117 9,20 125 81 201 092 11,80 142 94 201 118 9,25 125 81 201 0925 11,90 151 101 201 119 9,30 125 81 201 093 12,00 151 101 201 120 9,40 125 81 201 094 12,10 151 101 201 121 9,50 125 81 201 095 12,20 151 101 201 122 9,60 133 87 201 096 12,30 151 101 201 123 9,70 133 87 201 097 12,40 151 101 201 124 9,75 133 87 201 0975 12,50 151 101 201 125 9,80 133 87 201 098 12,60 151 101 201 126 9,90 133 87 201 099 12,70 151 101 201 127 10,00 133 87 201 100 12,80 151 101 201 128 10,10 133 87 201 101 12,90 151 101 201 129 10,20 133 87 201 102 13,00 151 101 201 130 10,30 133 87 201 103 13,50 160 108 201 135 10,40 133 87 201 104 14,00 160 108 201 140 10,50 133 87 201 105 14,50 169 114 201 145 10,60 142 94 201 106 15,00 169 114 201 150 10,70 142 94 201 107 15,50 178 120 201 155 10,80 142 94 201 108 16,00 178 120 201 160 10,90 142 94 201 109 16,50 184 125 201 165 11,00 142 94 201 110 17,00 184 125 201 170 11,10 142 94 201 111 17,50 191 130 201 175 11,20 142 94 201 112 18,00 191 130 201 180 11,30 142 94 201 113 18,50 198 135 201 185 11,40 142 94 201 114 19,00 198 135 201 190 11,50 142 94 201 115 19,50 205 140 201 195 11,60 142 94 201 116 20,00 205 140 201 200 - 27 -
