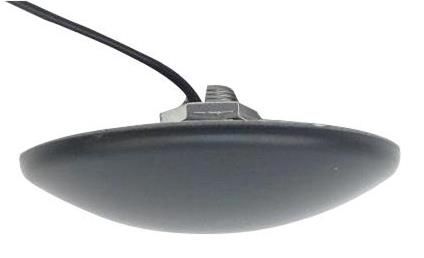

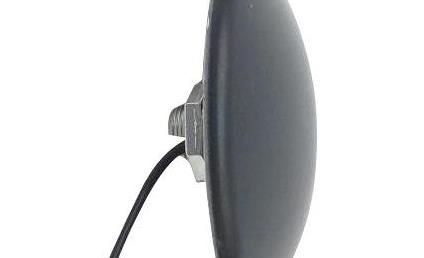

Tango 14 Low Profile, Quad Band GSM & 3G, Screw Mount Antenna Key Features Low Profile Design, 18mm Quad Band GSM/GPRS & 3G Screw/Through-Hole Mount Antenna 2.5dBi Gain Additional Considerations General Description The TANGO14 is a Low profile, robust and vandal proof range of Compatible worldwide with any cellular antennas suitable for outdoor equipment like vending machines GSM application etc. The TANGO14 is 94mm in diameter and is only 18mm high. Perfect for covert applications It is IP65 rated, comes with double sided sticky pad shaped Vandal resistant to the antenna and forms a good seal between antenna and Dual mounting adhesive and screw equipment it is mounted to. mount The Tango 14 is designed for covert applications where the user wishes to keep their antenna out of sight from unwanted eyes. Operating on GSM & 3G, the Tango 14 works well with various kinds of telemetr y equipment, such as Sirettas Zeta and the Zoom terminal series. Its bolt through base allows this antenna to be securely fixed to the roof of vehicles. IP65 rating allows this antenna to be used outside where the antenna will be exposed to the elements. The antenna has an M12 bolt and can be used with a mounting hole of between 13-20mm. The TANGO14 is a solidly made antenna to last for years and is available various lengths of cable and connector types. RRevev 1.0 1.0 Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PWTango 14 Low Profile, Quad Band GSM & 3G, Screw Mount Antenna Key Specifications - Electrical Key Specifications - Mechanical Temperature range: -40 to 85C Dimensions: Cable: RG174 (other lengths available on request) Impedance: 50ohm VSWR: 2.0:1 Connector: SMA , TNC, FME BNC, N type as required Average Gain 2.5dBi Voltage and supply 3 - 5V DC current: 25mA typical Operating frequency: GSM / GPRS - 900/1800/2100MHz Polarization: GSM - RHCP / GSM vertical Dimensions Rev 1.0 Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PW
