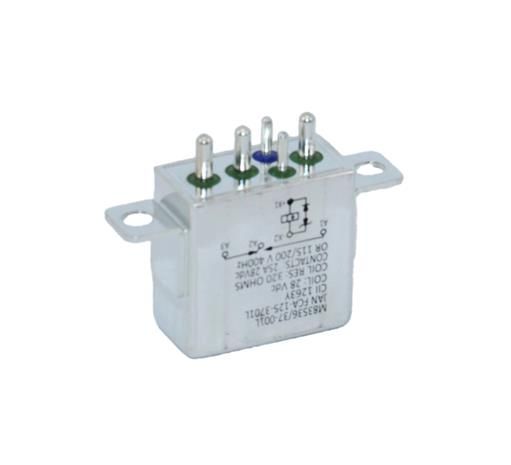

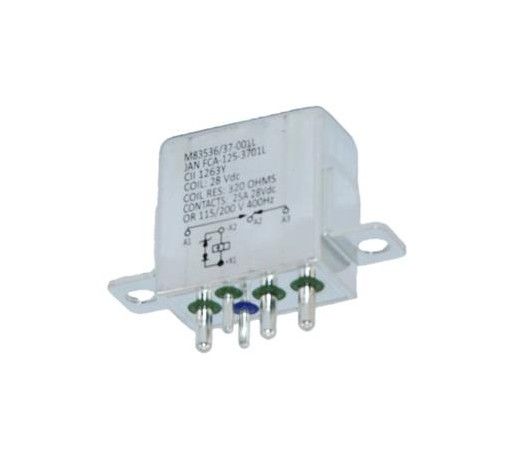

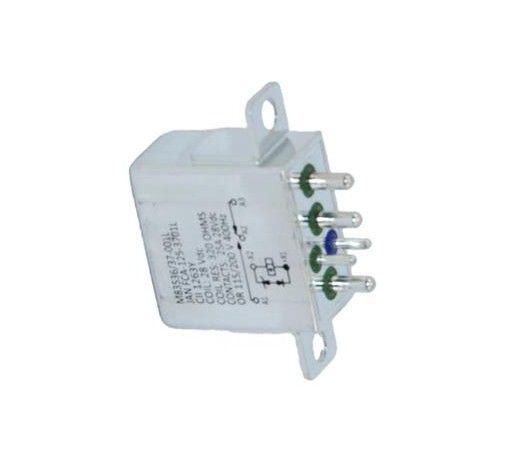

FCA-125-3701L Mid-Range Relays, Mid-Range Relay Contact Arrangement 1 Form C, SPDT, 1 C/O, Coil Suppression Diode, Tin-Lead Terminal Plating FCA-125-3701L ACTIVE CII TE Internal : 5-1617791-0 Mid-Range Relays, Mid-Range Relay Contact Arrangement 1 Form C, SPDT, 1 C/O, Coil Suppression Diode, Tin-Lead Terminal Plating View on TE.com> Relays, Contactors & Switches > Relays > Mil-Aero Relays > Mid-Range Relays Mid-Range Relay Contact Arrangement: 1 Form C, SPDT, 1 C/O Coil Suppression Diode: With Auxiliary Contacts: Without Terminal Plating: Tin-Lead Mid-Range Relay Contact Current Rating: 25 A Features Product Type Features Enclosure Type Hermetically Sealed Terminal Configuration Solder Pins Product Type Relay Relay Type Military/Aerospace Mid-Range Electrical Characteristics Vibration 30G s, 10 3000Hz Shock 200G s, 6ms Coil Suppression Diode With Mid-Range Relay Coil Voltage Rating 28 VDC Mid-Range Relay Coil Resistance 320 Mid-Range Relay Contact Switching (Max) 115Vac (60-400Hz) Back EMF Suppression With Coil Magnetic System Polarized, Monostable Actuating System DC Contact Features Mid-Range Relay Contact Arrangement 1 Form C, SPDT, 1 C/O Auxiliary Contacts Without Terminal Plating Tin-Lead Mid-Range Relay Contact Current Rating 25 A 10/10/2021 11:13PM Page1 For support call+1 800 522 6752 FCA-125-3701L Mid-Range Relays, Mid-Range Relay Contact Arrangement 1 Form C, SPDT, 1 C/O, Coil Suppression Diode, Tin-Lead Terminal Plating Mid-Range Relay Contact Current Rating 25 A Contact Base Material Silver Cadmium Oxide Mechanical Attachment Mid-Range Relay Mounting Type Raised Vertical Flange Mount Usage Conditions Operating Temperature Range -70 125 C Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Not Compliant EU ELV Directive 2000/53/EC Not Compliant China RoHS 2 Directive MIIT Order No 32, 2016 Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUL 2021 (219) Candidate List Declared Against: JAN 2021 (211) SVHC > Threshold: Not Yet Reviewed Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free Solder Process Capability Not lead free process capable Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) Guidance on requirements for substances in articles posted at this URL:
