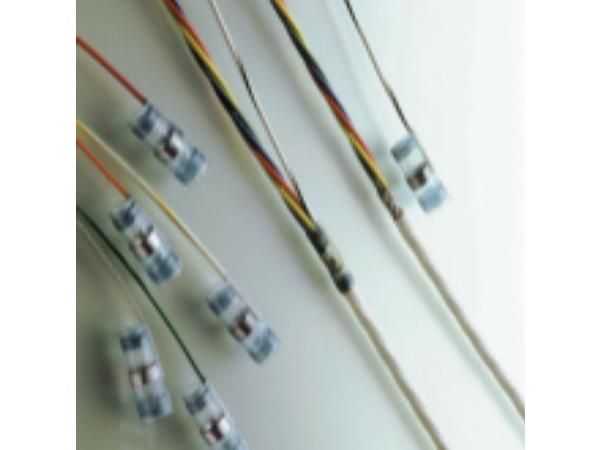

CUSTOMER DRAWING Part Name Component Dimensions Shall Accommodate Cable With Dimensions Ident. B C D E F H L1.75 Code min min min max min max (L0.07) ST63-1-55-GA-CL ST631R 16.5 1.9 2.65 8.25 2.65 0.90 1.9 (0.650) (0.075) (0.105) (0.325) (0.105) (0.035) (0.075) ST63-2-55-GA-CL ST632R 16.5 2.65 3.68 8.25 3.68 1.40 2.65 (0.650) (0.105) (0.145) (0.325) (0.145) (0.055) (0.105) ST63-3-55-GA-CL ST633R 16.5 4.3 5.08 8.25 5.08 2.15 4.3 (0.650) (0.170) (0.200) (0.325) (0.200) (0.085) (0.170) ST63-4-55-GA-CL ST634R 19.1 5.95 6.45 8.25 6.45 3.30 5.95 (0.750) (0.235) (0.255) (0.325) (0.255) (0.130) (0.235) ST63-5-55-GA-CL ST635R 19.1 7.0 7.6 8.25 7.6 4.30 7.0 (0.750) (0.275) (0.300) (0.325) (0.300) (0.170) (0.275) MATERIAL 1. INSULATION SLEEVE: Heat-shrinkable, radiation cross-linked modified polyvinylidene fluoride. Transparent blue. 2. SOLDER PREFORM WITH FLUX: SOLDER: TYPE Sn63 per ANSI J-STD-006. FLUX: TYPE ROL0 per ANSI J-STD-004. 3. MELTABLE RINGS: Stabilized thermoplastic. Color: blue. 4. PRE-INSTALLED LEAD: RAYCHEM 55A0111 in accordance with MIL-W-22759/32. Stranded tin plated copper. Color: (see note). APPLICATION 1. These parts are designed to provide an environment protected shield termination on cables, rated for 125 C minimum, meeting the dimensional criteria listed and having tin or silver plated shields. 2. Temperature range: -55 C to +150 C. 3. When installed in accordance with Raychem Process Standard RCPS-100-70 assemblies will meet performance requirements of Raychem Specification RT-1404. Complete part number is defined as shown: ST63-X 55 GA CL Size Lead type Lead AWG Lead color designation per MIL-STD-681. 1 to 5 M22759/32 20 22 Colors available: 24 26 20AWG-black, green, white For best results, prepare the cable as shown: 22AWG-black, green, white 24AWG-black, blue, white 26AWG-black, white All gauges: White with a single black stripe. TE Connectivity, TE connectivity (logo), Raychem, and SolderSleeve are trademarks Raychem TITLE: SOLDERSLEEVE* DEVICE Devices TERMINATION WITH LEADS UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETERS. DOCUMENT NO.: ST63-X-55-GA-CL INCHES DIMENSIONS ARE BETWEEN BRACKETS. TOLERANCES: ANGLES: N/A TE Connectivity reserves the right to amend Revision: Issue Date: 0.00 N/A this drawing at any time. Users should July 2020 F 0.0 N/A ROUGHNESS IN evaluate the suitability of the product for 0 N/A MICRON their application. DRAWN BY: DRAWN DATE: CAD FILE: CAGE CODE: ECO: ECO-20-009992 SCALE: SIZE: SHEET: R. MAPALO 08/12/1998 ST63-X-55-GA-CL 06090 NONE A 1 of 1 2020 TE Connectivity Corporation. All rights reserved. If this document is printed it becomes uncontrolled. Check for the latest revision. X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Solder Sleeves & Shield Tubing category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 899170-000 620040N001 620069N003 CTA-0050-01 629624-000 6500750004 6501390002 CX0781-000 696396-000 697080-000 D-150- 0331CS2902 D-181-1222-90/9CS2800 D-300-01CS1108 715325N001 908357N001 982127-1 D-436-0182CS246 D-436-37CS2651 D-436- 61CS246 D-436-82-CS2621 D-659-0087 E53797N001 CB0213-000 CB0219-000 S200-2-01 S200-4-00CS2904 LSS-81-16AA-CS5575 ST18-2-00 FLX40-020-04-CS8651 325534-000 CTA-0025 D-108-07CS436 D-128-0010 D-141-0108CS404 D-144-41CS1371 D-150-0231- NRCS2896 D-150-1011 395947-000 427243N001 B-801-18-01 515-9 C67137-000 CB0220-000 D-436-0185CS1102 D-436-36CS2908 D- 436-37CS2908 D-436-52CS246 D-436-83CS2705 D44133N001 LSS-26-8A
