V23333Z0002A041 TE Connectivity

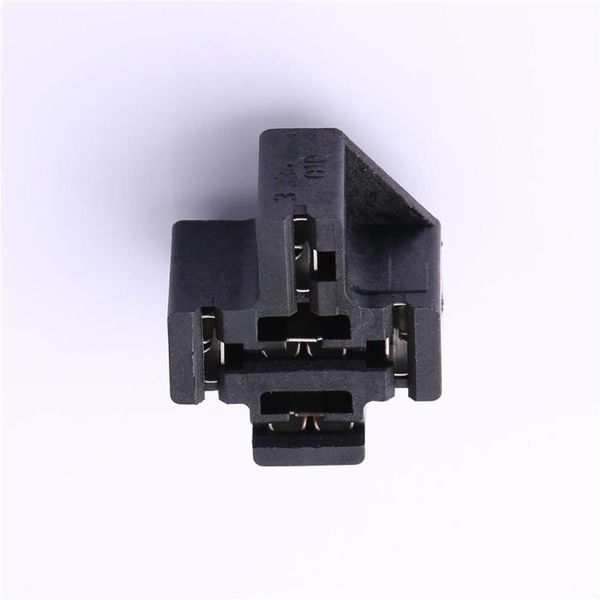

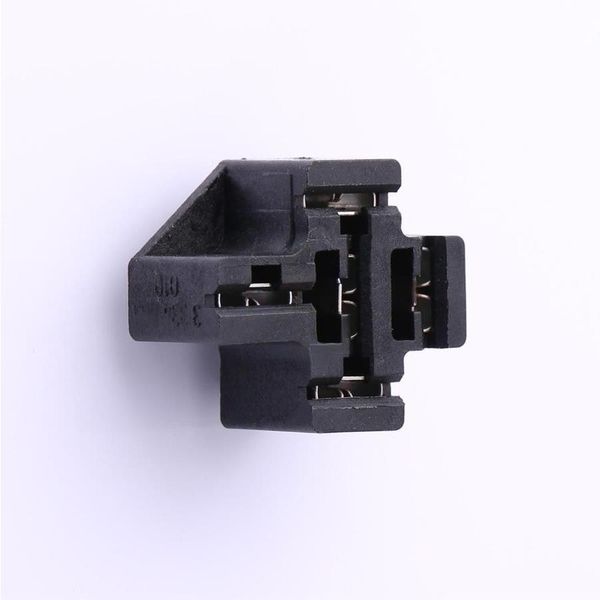

Automotive Relays Accessories Connectors for Mini ISO Relays Connectors in 3 different versions n PCB Socket With the solderable connector Mini ISO relays with plug-in terminals can be mounted on leadframes. This allows easy and reasonable replacement in case of service. n Connector 5 pole connector with snap-in pin to lock in frame. n Connector with mounting flap 5 pole connector that can be mounted individually or interlocked. The connector has a snap-in pin to lock in frame. The mounting bracket also allows screw-on. The mounting bracket also allows F333-51 fcw1a screw-on. Technical Data Weight PCB socket approx. 7.0g (0.25oz) Connector approx. 3.9g (0.14oz) Connector with mounting flap approx. 20.6g (0.73oz) 1) Storage conditions according to IEC600688 Packaging/unit PCB socket (V23333-Z0002-B041) 500 pcs. Connector (V23333-Z0001-A007) 500 pcs. Connector with mounting flap (V23333-Z1001-A008) 200 pcs. 1) For general storage and processing recommendations please refer to the Application Notes and especially to storage in our Definitions or at Automotive Relays Accessories Connectors for Mini ISO Relays Connector with mounting flap V23333-Z1001-A008 To be mounted individually or can be interlocked. Terminals to be ordered separately. 333 8 DD2 2 3) Selection of fitting crimp terminals ) (Ph. bronze tin plated) Part numbers for connectors Quantity required Use in cavities Terminal Wire Use Part number for size mm for crimp terminals Product code Part number Form A Form C Form A Form C V23333-Z0002-A041 2-1904045-4 6.3 x 0.8 0.5 - 1.5 Coil 2 2 1 and 2 1 and 2 5-160526-9 V23333-Z0001-A007 1-1904045-1 6.3 x 0.8 1.0 - 2.5 Load 2 3 3 and 5 3,4 and 5 160927-4 6.3 x 0.8 0.5 - 1.5 Coil 2 2 1 and 2 1 and 2 5-160526-9 V23333-Z1001-A008 1-1904045-2 6.3 x 0.8 1.0 - 2.5 Load 2 3 3 and 5 3,4 and 5 160927-4 2) Crimp terminals to be ordered separately. 3) Mentioned crimp terminals are delivered in strip-form, loose pieces and hand tool available on request. 2 01-2012, Rev. 0112 Datasheets and product specification ac- Datasheets and product data is subject to the Datasheets, product data, Definitions sec- www.te.com cording to IEC 61810-1 and to be used only terms of the disclaimer and all chapters of tion, application notes and all specifications 2011 Tyco Electronics Corporation, together with the Definitions section. the Definitions section, available at are subject to change. a TE Connectivity Ltd. company.
