23636 Tempo Semiconductor

Name: 23636
Brand: Tempo Semiconductor
SKU: 23636_Tempo_Semiconductor
Availability: InStock
Rating: 5 (11 reviews)

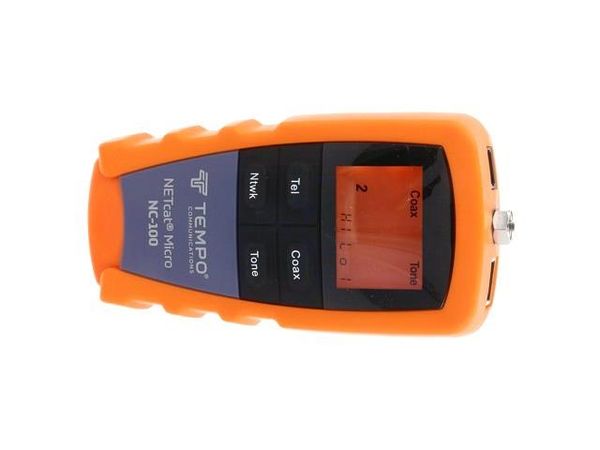

23636 electronic component of Tempo Semiconductor

Images are for reference only
See Product Specifications

Part No.	23636
Manufacturer:	Tempo Semiconductor
Category:	LAN/Telecom/Cable Testing
Description:	Tester: wiring system; 7-segment,LCD,with a backlit; RJ11,RJ45
Datasheet:	23636 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 194.5104 ea
Line Total: USD 194.51

Availability - 1
Ship by Tue. 04 Mar to Thu. 06 Mar

MOQ: 1 Multiples: 1
Pack Size: 1

23636 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

1

Ship by Tue. 04 Mar to Thu. 06 Mar

MOQ : 1
Multiples : 1

1 : USD 194.5104

Specifications

Manufacturer

Tempo Semiconductor Tempo Semiconductor

Product Category

LAN/Telecom/Cable Testing LAN/Telecom/Cable Testing

Kind Of Display Used

LCD, with a backlit, 7 - segment LCD, with a backlit, 7 - segment

Weight

220 g 220 g

Type Of Tester

wiring system wiring system

Kind Of Connector

RJ45, RJ11 RJ45, RJ11

Detection

reversed connection, split pairs, shorted wires, split pairs of wires, crossed wires reversed connection, split pairs, shorted wires, split pairs of wires, crossed wires

Operating Temperature

0 To 50 C 0 To 50 C

Storage Temperature

- 10 To 60 C - 10 To 60 C

Power Supply

b A ttery 6LR61 9 V x1 b A ttery 6LR61 9 V x1

Test

cables STP, cables UTP, coaxial cables, LAN cables STP, cables UTP, coaxial cables, LAN

Dimensions

150x70x33mm 150x70x33mm

Engineering Pn

52024541 52024541

Measured Cable Length

2 To 3 m 2 To 3 m

Measuring Instrument Features

pair tracing frequencies: 577Hz, 983Hz, generates 3 diffrent tone patterns, for cable tracing and troubleshooting pair tracing frequencies: 577Hz, 983Hz, generates 3 diffrent tone patterns, for cable tracing and troubleshooting

Notes:- Show Stocked Products With Similar Attributes.
