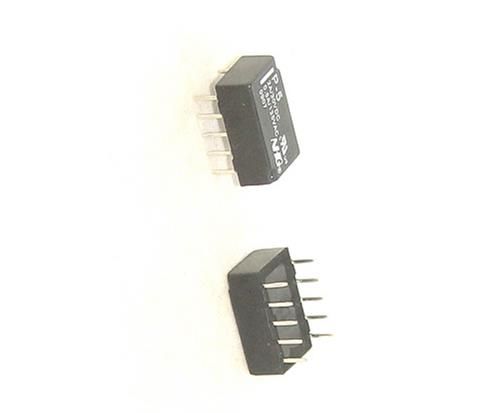

P E169380 C US R5604271 14 9 5 Features DIL Pitch Terminals .High Sensitivity :0.14W or 0.10W Nominal Power Conforms to FCC Part 68 1.5kV Surge and Dielectric 1000VAC Monostable or bistable relays Single and double Coil magnet latching Type available Application for Telecommunication Equipment,Office Equipment,Security Alarm Systems, Measuring instruments, Medical Monitoring Equipment,Audio Visual Equipment, Flight Simulator,Sensor Control Ordering Information P L 12 W 1 2 3 4 1 Part number P 3 Coil rated voltage(V) DC:3,4.5,5,6,9,12,24 2 Operating function NIL: Single Side Stable 4 Contact material NIL: AgPdW: AgNi L:1 Coil Latching K:2 Coil Latching Contact Data Contact Arrangement 2C DPDT(B-M) Bifurcated Crossbar Contact Material AgPd(Gold clad ) AgNi(Gold clad Contact Rating (resistive) 1A,2A/30VDC 0.5A/125VAC Max. Switching Power 60W 62.5VA Min. Switching load 0.01mA/10mV Reference Value Max. Switching Voltage 220VDC 250VAC Max. Switching Current:2A Contact Resistance or 50m Item 4.12 of IEC 61810-7 Voltage drop 5 5 1A/30VDC 2 10 Ag Ni 1 10 Operation Electrical 5 0.5A/125VAC 1 10 Item 4.30 of IEC 61810-7 life 8 Mechanical 10 Item 4.31 of IEC 61810-7 CAUTION: Relays previously tested or used above 10mA resistive at 6V maximum DC or peak AC open circuit are not recommended for subsequent use in low level applications. Coil Parameter Coil voltage Pick up voltage Release voltage Release VDC Coil Operate Dash VDC(max) VDC(min) Coil resistance /Reset power Time numbers (75%of rated (10% of rated 10% Time Rated Max. W ms voltage ) voltage) ms P-003 3 7.5 64.3 2.25 0.3 0.14 P-004 4.5 11.25 144.6 3.38 0.45 0.14 P-005 5 12.5 178 3.75 0.5 0.14 Approx.2 Approx.1 P-006 6 15.0 257 4.50 0.6 0.14 P-009 9 22.5 579 6.75 0.9 0.14 P-012 12 30.0 1028 9.00 1.2 0.14 P-024 24 48.0 2880 18.0 2.4 0.20 1 Coil Latching Reset(Max) Reset PL-003 3 8.7 90 2.25 -2.25 0.10 PL-004 4.5 13.0 202.5 3.38 -3.38 0.10 PL-005 5 14.5 250 3.75 -3.75 0.10 PL-006 6 17.4 360 4.50 -4.50 0.10 Approx.2 Approx.2 PL-009 9 26.1 810 6.75 -6.75 0.10 PL-012 12 34.8 1440 9.00 -9.00 0.10 PL-024 24 57.6 3840 18.0 -18.0 0.15 2 Coil Latching Set Coil Reset Coil Reset(Max) Reset PK-003 3 6 45 45 2.25 2.25 0.20 PK-004 4.5 9 101 101 3.38 3.38 0.20 PK-005 5 10 125 125 3.75 3.75 0.20 PK-006 6 12 180 180 4.50 4.50 0.20 Approx.2 Approx.2 PK-009 9 18 405 405 6.75 6.75 0.20 PK-012 12 24 720 720 9.00 9.00 0.20 1920 PK-024 24 36 1920 18.0 18.0 0.30 CAUTION: 1.The use of any coil voltage less than the rated coil voltage will compromise the operation of the relay. 2.Pickup and release(reset) voltage are for test purposes only and are not to be used as design criteria. 3.When latching relays are installed in equipment, the latch and reset coil should not be powered simultaneously. Coil should not be pulsed with less than the nominal coil voltage and pulse width should be a minimum of three times the specified operate time of the relay. If these conditions are not followed, it is possible for the relay to be in the magne- tically neutral position . 29P Characteristics Electrostatic capacitance Between open Contacts Approx.0.4pF Item 4.41 of IEC 61810-7 Between coil & Contacts Approx.0.9pF Item 4.41 of IEC 61810-7 Between Contact Poles Approx.0.2pF Item 4.41 of IEC 61810-7 1000M min (at 500VDC) Item 7 of IEC 60255-5 Insulation Resistance Dielectric Strength Between open Contacts 1000VAC 1min Item 6 of IEC 60255-5 Between coil & Contacts 1000VAC 1min Item 6 of IEC 60255-5 Between Contact Poles 1000VAC 1min Item 6 of IEC 60255-5 Surge Withstand Voltage Between open Contacts 1500V FCC 68 Between coil & Contacts 1500V FCC 68 Between Contact Poles 2500V FCC 68 2 Functional:500m/s 11ms Shock resistance IEC 68-2-27 Test Ea 2 Survival:1000 m/s 6ms 10Hz~55Hz Double amplitude IEC 68-2-6 Test Fc Vibration resistance Functional 3mm Survival:5mm Terminals strength 5N IEC 68-2-21 Test Ua1 Solderability 260 5 5 s 0.5s IEC 68-2-20 Test Ta method 1 Temperature Range -40 ~70 (-40 F~158 F) Mass Approx. 1.5g Safety approvals Safety approval UL&CUR T VU Load 1A,2A/30VDC, 0.5A/125VAC 1A/30VDC, 0.5A/125VAC Dimensions mm/inch Index Mark 0.5 0.25 0.02 0.01 2.54 7.62 14.3max. 0.3 0.1 0.563max. Dimensions 2 .5 4 0.1 Single Side stable 1 Coil latching 2 Coil latching 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5 S R S R S: Set R: Reset (Bottom View) 10 9 8 7 6 10 9 8 7 6 10 9 8 7 6 Index mark Index mark Index mark 10- 1 (De-energized Position) (Reset Position) (Reset Position) 0 .0 4 Wiring diagram 0 .1 / 0 .0 0 4 Tole ra n c e : (Bottom view) Mounting (Bottom view) NOTES 1).Dimensions are in millimeters. 2).Inch equivalents are given for general information only. Ningbo Huaguan Electronics Corporation LTD. 30 9 . 3 m a x . 0 . 3 6 6 m a x . +0.4 5 +0.016 0.197 3.5 4 . 7 5 0 . 1 8 7 0.187 2.54 0.1
