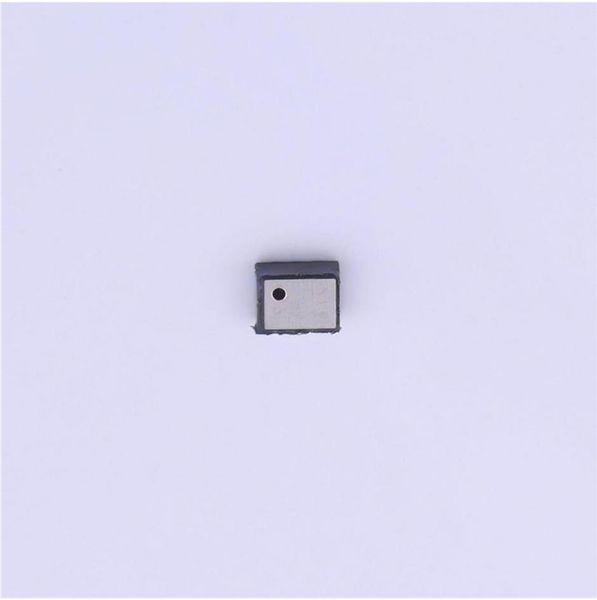

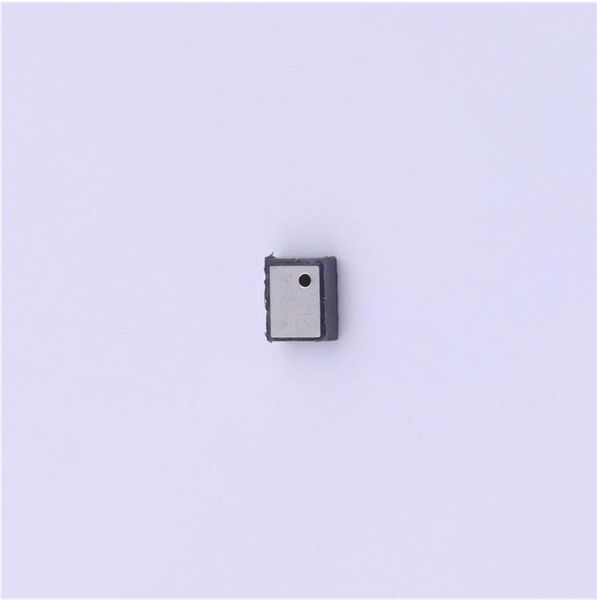

DPS368XTSA1 Infineon

DPS368 TM Digital XENSIV barometric pressure sensor Product Description The DPS368 is a miniaturized Digital Barometric Air Pressure Sensor robust against water, dust and humidity. It offers a high accuracy and a low current consumption, capable of measuring both pressure and temperature. The pressure sensor element is based on a capacitive sensing principle which guarantees high precision during temperature changes. The small package makes the DPS368 ideal for mobile applications and wearable devices. Due to its robustness it can be used in harsh environment. The internal signal processor converts the output from the pressure and temperature sensor elements to 24 bit results. Each unit is individually calibrated, the calibration coefficients calculated during this process are stored in the calibration registers. The coefficients are used in the application to convert the measurement results to high accuracy pressure and temperature values. The result FIFO can store up to 32 measurement results, allowing for a reduced host processor polling rate. Sensor measurements and calibration coefficients are available through the serial IC or SPI interface. The measurement status is indicated by status bits or interrupts on the SDO pin. Features Pressure sensor with environmentally resistant package Operation range: Pressure: 300 1200 hPa. Temperature: -40 85 C. Pressure sensor precision: 0.002 hPa (or 0.02 m) (high precision mode). Relative accuracy: 0.06 hPa (or 0.5 m) Absolute accuracy: 1 hPa (or 8 m) IPx8 certified: Temporary immersion of 50m for 1 hour Temperature accuracy: 0.5C. Pressure temperature sensitivity: 0.5Pa/K Measurement time: Typical 27.6 ms for standard mode (16x). Minimum: 3.6 ms for low precision mode. Average current consumption: 1.7 A for pressure measurement, 1.5 A for temperature measurement 1Hz sampling rate, standby: 0.5 A. Supply voltage: VDDIO: 1.2 3.6 V, VDD: 1.7 3.6 V. Operating modes: Command (manual), Background (automatic), and Standby. Calibration: Individually calibrated with coefficients for measurement correction. FIFO: Stores up to 32 pressure or temperature measurements. Interface: I2C and SPI (both with optional interrupt) Package dimensions: 8-pin PG-VLGA-8-2 , 2.0 mm x 2.5 mm x 1.1 mm. Green Product (RoHS) Compliant Datasheet Please read the Important Notice and Warnings at the end of this document v1.1 www.infineon.com 2019-07-03DPS368 TM Digital XENSIV barometric pressure sensor Typical applications Typical applications Smart watches, wearable & smart phone ( e.g. altitude, fitness tracking, step counting, fall detection) Home appliances (e.g. air flow control in HVAC / vacuum cleaner, water level detection, intruder detection) Drones ( e.g. flight stability, height control) Health care(e.g. fall detection, air flow monitoring, smart inhaler) Product Validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22. Datasheet 2 v1.1 2019-07-03
