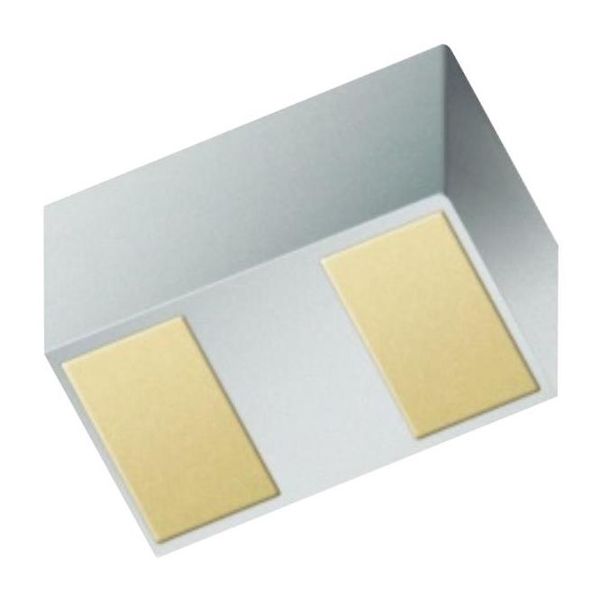

C Y ESD132-B1-W0201 Bi-directional ESD protection device, 3.3 V, 0.45 pF, 0201 Product description This Infineon ESD (electrostatic discharge) protection device has a bi-directional and symmetric I/V characteristic and excellent clamping performance. Feature list ESD / transient protection according to: - IEC61000-4-2 (ESD): 30 kV (air) / 30 kV (contact) - IEC61000-4-4 (EFT): 4 kV / 80 A (5/50 ns) - IEC61000-4-5 (Surge): 9 A (8/20 s) Bi-directional maximum working voltage: V = 5.5 V WM Line capacitance: C = 0.45 pF at f = 1 MHz L Clamping voltage: V = 7 V at I = 16 A with R = 0.19 cl TLP dyn Very low leakage current: I <100 nA L Small form factor SMD size 0201, low profile (0.58 x 0.28 x 0.15 mm) Potential applications USB 3.x Gen 1 HDMI, DisplayPort Ethernet Product validation Qualified for industrial applications according to the relevant tests of JEDEC47/20/22. Device information Figure 1 Pin configuration with marking (bottom view) Table 1 Part information Product name / Ordering code Package Pin configuration Marking Pieces / Reel ESD132-B1-W0201 / ESD132B1W0201E6327XTSA1 WLL 2-3 1 line, bi-directional CY 15 k Datasheet Please read the Important Notice and Warnings at the end of this document v3.0 www.infineon.com 2020-11-30 C YESD132-B1-W0201 Bi-directional ESD protection device, 3.3 V, 0.45 pF, 0201 Table of contents Table of contents Product description 1 Feature list . 1 Potential applications 1 Product validation 1 Device information . 1 Table of contents . 2 1 Absolute maximum ratings 3 2 Electrical characteristics 4 3 Typical characteristic diagrams . 6 4 Package information WLL-2-3 13 5 References 14 6 Revision history . 14 Disclaimer 15 Datasheet 2 v3.0 2020-11-30
