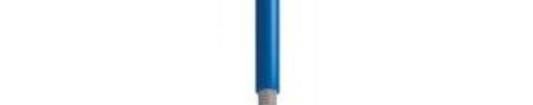

Profibus PA PVC Single Pair Cable Application This single pair Profibus PA cable for industrial fieldbus systems particularly developed for process automation and instrumen - tation applications including connecting sensors and actuators. Characteristics Max. Operating Voltage : 300V Temperature Rating : Fixed: -30C to +80C Minimum Bending Radius : Fixed 10 overall diameter Cable Standards BS EN 50267-2-1, BS EN 50267-2-2, IEC 61158 Flame Retardant according to IEC 60332-1-2 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor Solid Bare Copper Wire (18 AWG) Insulation Solid PE (Polyethylene) Separator PET (Polyester Tape) Filler PET (Polyethylene Terephthalate) fibres www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 12/02/18 V1.3Profibus PA PVC Single Pair Cable Shield AL/PET (Aluminium/Polyester Tape) Braid TCWB (Tinned Copper Wire Braid) 60% Coverage Sheath PVC (Polyvinyl Chloride) Core Identification Green and Red Sheath Colour Blue Dimensions Nominal Nominal Nominal Outer Nominal Cross Nominal Diameter Nominal No. of Diameter Diameter Diameter of Filler Sectional Area of Outer Sheath Weight Pairs of Conductor of Insulation Sheath 2 mm mm kg/km mm mm mm 1 0.85 1.04 2.5 5.5 7.6 89 Electrical Characteristics at 20C Impedance Attenuation Max. DC Capacitance Impedance dB/km Conductor at 800 Hz (320 MHz) Resistance Max. at Nominal Nominal nF/km (10%) 31.25kHz 39kHz 1MHz /km 39kHz at 100kHz at 1MHz 22 60 150 100 100 80 3 4 15 Dielectric Strength Minimum Transfer Impedance Maximum Inductance kV AC / 1 min Insulation m/M Installation at 31.25 kH Resistance Pulling mH/km Cond/Cond Cond/Shield 100kHz 1MHz G kM N 0.7 2.5 2.5 5 15 10 120 Part Number Table Reel Description Part Number Length Profibus PA PVC Single Pair Cable 100m PP001543 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 12/02/18 V1.3
